| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | G PW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | pill blister packaging machine,pharmaceutical packaging machines |
||

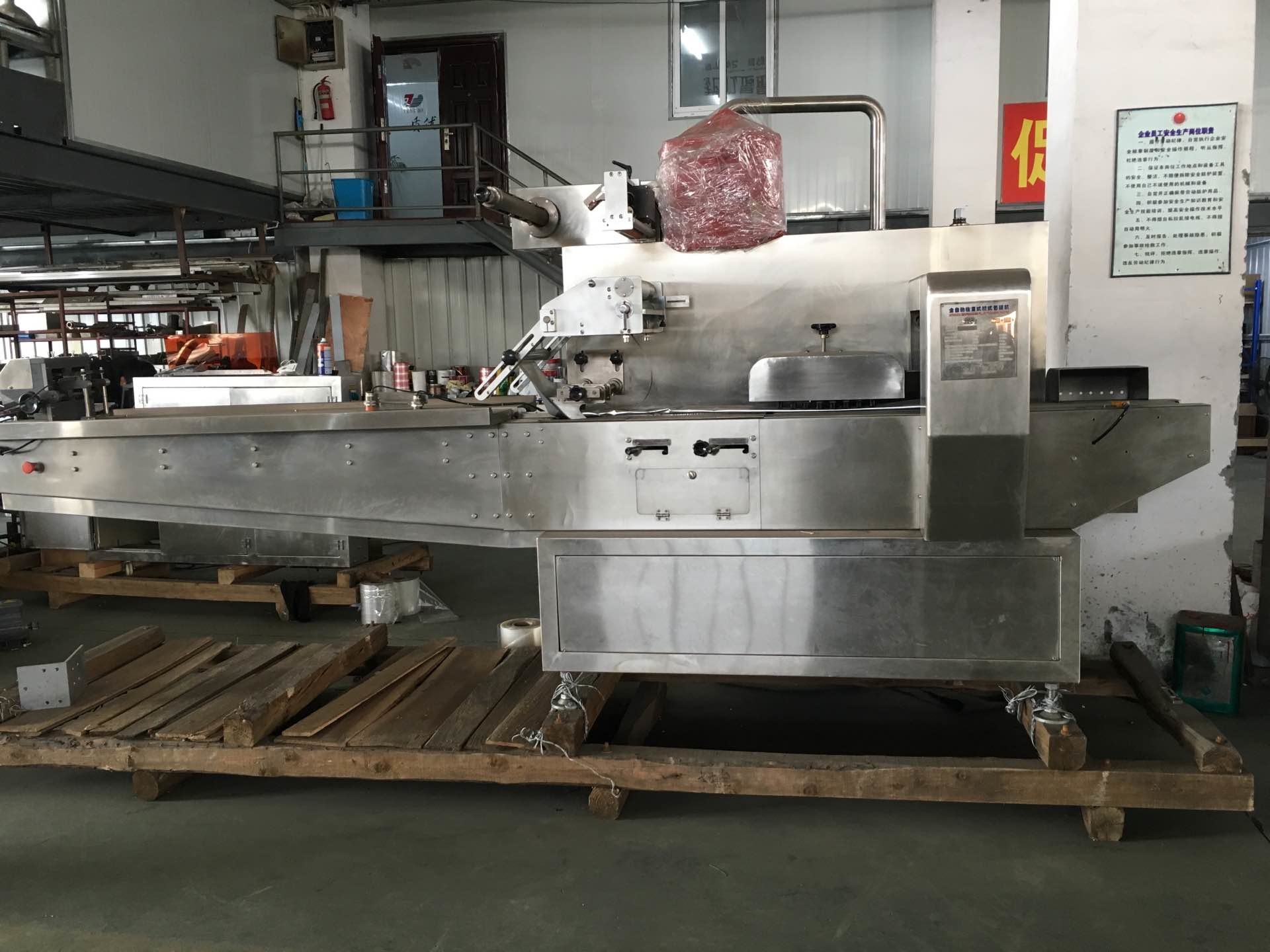

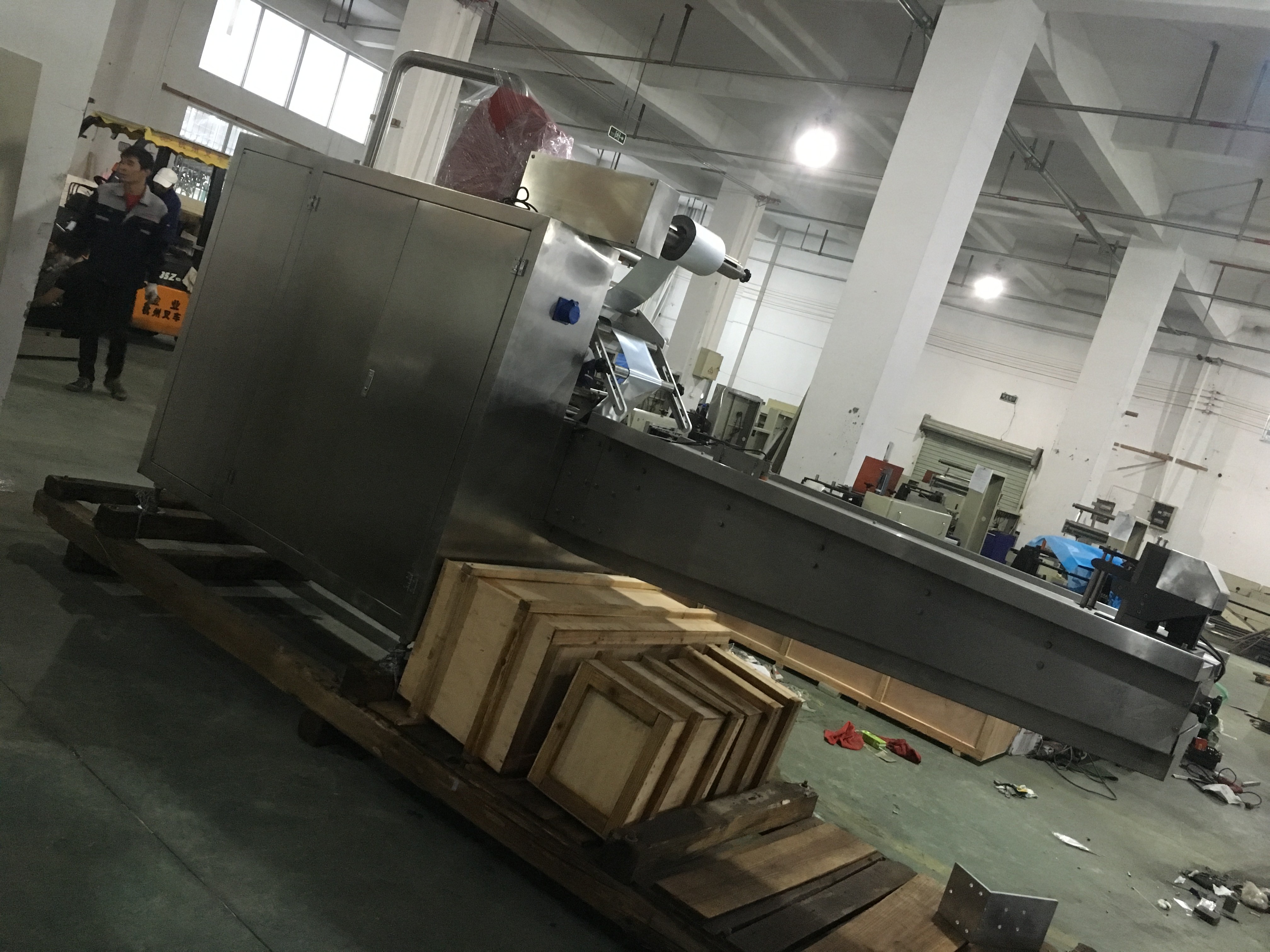

Reciprocating pillow type automatic Medical Packing Machine with Stainless steel fuselagecan starved feeding shut down
Medical Packaging machine uses color touch screen and stable and reliable high-precision dual-axis output PLC control, bagging, metering, filling, sealing, coding, cutting bag one-time completed.
It uses air circuit control and circuit control independent separation, low noise, stable performance.
correlating parameter
|
The machine type
|
GPW-350 |
|
Film Width
|
Max.350mm |
|
Bag length
|
100~200mm |
|
Product Height
|
10~50mm |
|
film diameter
|
Max.400mm |
|
Packing speed
|
5~150package/minute
|
|
power
|
220V50/60Hz3.2Kw |
|
Machine size
|
(L)4200×(W)960×(H)1520mm |
|
machine weight
|
About 1160Kg |
|
Air Pressure
|
≥0.2 MPa |
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
Packing List
| No. | Item | Qty/Pcs |
|
|
Machine catalog | |
| 1 | Operating manual | 1 |
| 2 | Qualification certificate | 1 |
| 3 | Frequency convertor manual | 1 |
| 4 | Color mark sensor manual | 1 |
| 5 | Temperature controller manual | 1 |
| Additional parts | ||
| 1 | Pushing material piece | 2 |
| 2 | Middle sealing heating tube | 2 |
| 3 | Cross sealing heating tube | 2 |
| 4 | Power line | 5 |
| Special tools | ||
| 1 | Adjustable wrench (10 ") | 1 |
| 2 | Inner hexagon spanner | 1 |
| 3 | With a screwdriver | 4 |
| 4 | Brass wire brush | 1 |
| 5 | Pointed nose pliers | 1 |
