SS Fuselage High Speed Blister Packing Machine , Code Function Medicine Packing Machine

Basic Information
Place of Origin: china
Brand Name: tengda
Certification: CE
Model Number: PW-300C
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T
Supply Ability: 50set/month
Detail Information
Finished Package Size: 40-500/30-110/5-40mm Packging Speed: 5-230Bags/min
Power Specification: 80-300mm Machine: 220V
Weight: 800kg Overall Size: 3780×640×1560mm
High Light:

pill blister packaging machine

,

pharmaceutical packaging machines


Product Description

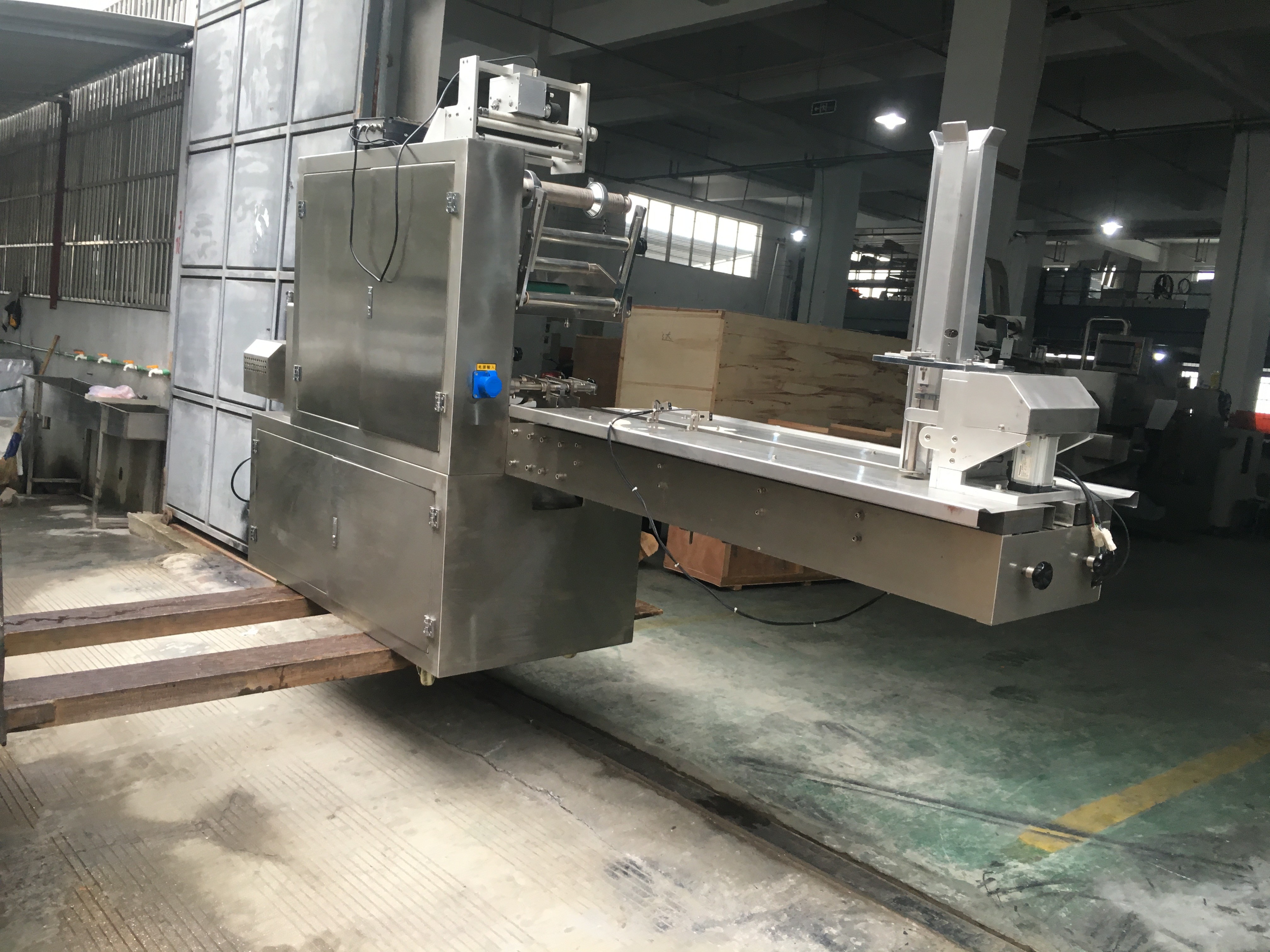

Stainless steel fuselage Medical Packing Machine with Code function



Pricial capability and structural features:


1. The pillow type automatic packing machine Adopting PLC programmable controller to make whole machine run program touch screen operation and user-friendly operation mode, set bag length, speed, sealing temperature and other parameters, and display the actual bag length, actual speed, total output, consumption of film Length, vertical sealing temperature, sealing temperature before and after the data.

2.  photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film;modulation bag machine, compact structure, convenient replacement of varieties;

3. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.

4. low noise. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.



Finished package size(mm) Length 40-500mm
Width 30-110mm
Height 5-40mm
Vertical and cross sealing strength (Nuton/mm2) 15N/m㎡
Packaging speed (bag/minute) 30-160Bags/min
Packaging film width(mm) 80-450mm
Power specification 220V 50/60Hz 3KVA
Machine weight (kilogram) 800kg
Overall size (length * width * height) 3780×640×1560mm
