Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
High Light: | pill blister packaging machine,pharmaceutical packaging machines |

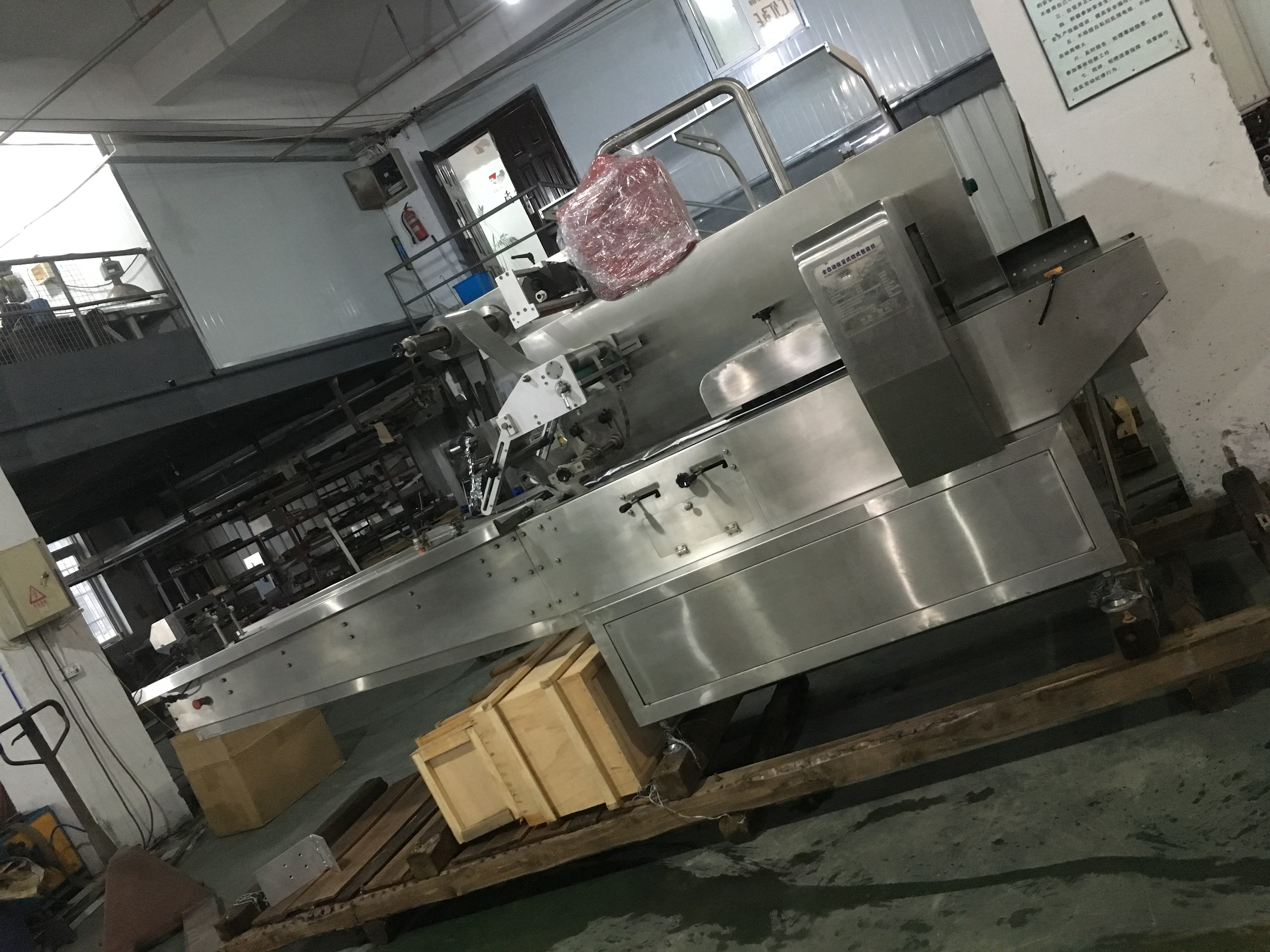

Automatic blanking Medical Packing Machine with Stainless steel fuselage and has good sealing performance
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise;
2. photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film;
3. With automatic detection system and the screen shows a simple troubleshooting method to achieve automatic diagnosis, fault display, automatic exclusion, automatic alarm and automatic protection functions.
4. After-sale service:The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.Test run of the machine & training:We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging,communication and each day 100usd living allowances.Training of buyer in China:We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer.We supply the consumable spare parts for free for one years use.
correlating parameter
The machine type
|
GPW-350 |
Film Width
|
Max.350mm |
Bag length
|
100~200mm |
Product Height
|
10~50mm |
film diameter
|
Max.400mm |
Packing speed
|
5~150package/minute
|
power
|
220V50/60Hz3.2Kw |
Machine size
|
(L)4200×(W)960×(H)1520mm |
machine weight
|
About 1160Kg |
Air Pressure
|
≥0.2 MPa |
Configuration list
serial number
|
Name |
Type and specification |
Manufacturer |
QUANTITY
|
1 | Programmable controller (PLC) | FPO—60T | Panasonic | 1 |
2 |
Touch Screen
|
PW-5610-SB |
Taiwan HITECH |
1 |
3 | Thermometer MODE | PA-TC1 | JP | 2 |
4 |
Automatic Blanking motor
|
servo motor 0.4KW |
Panasonic
|
|
5 |
Feeding motor
|
servo motor 0.4KW |
Panasonic
|
1 |
6 | Reciprocating tool carriage motor |
servo motor 0.75KW |
Panasonic | 1 |
7 | Send film Motor |
servo motor 0.75KW |
Panasonic | 1 |
8 | Middle heating tube |
300W~110V 10*150mm |
jiangsu weineng | 2 |
9 |
Hor Heater
|
300W~110V 10*100mm |
Jiangsu weineng | 2 |
10 |
Yellow and green button.
|
XB2—BA—51C—42C—30C |
Schneider
|
3 |
11 |
Emergency Stop Switch
|
XB2—BS542C |
Schneider
|
1 |
13 |
switching power
|
S—35—24 |
Taiwan MingWei
|
1 |
14 | uselage | 304#stainless steel |
Shanghai lijun |
The machine shell |
15 | photoelectric switch | GDJ-211 | Dongtou jungong | 1 |
16 | Coding Machine | MS-20 | Whenzhou shenglong | 1 |
17 | chain | Four points of general | Hubei sanhu |
1 strip
|
18 |
chain
|
Three points of general | Hubei sanhu |
3 strip
|
19 | thermocouple | K type | Shanghai yatai | 3 |
20 | test | 1500S | Omron | 1 |
21 | conveyer belt | 920*120*2 | Honestek | 3 |
22 | Solid-state relay |
SSR series MGR-104825 |
MEGIR | 5 |
23 | Yellow relay | YFA-28CA | Taiwan yifa | 1 |
24 | encoder | S3.806-H03G1000BZ3 | Wuxi ruipu | 1 |
25 |
The sealing electromagnet
|
MPB1-2.5YC220VAC | Whenzhou xinhao | 1 |
26 | air switch | XB2-60C151P | China chint | 5 |
27 | linear bearing | 51101 | TaiChang bearing | 2 |
28 | The red and green light |
XB2—BVM4C XB2—BVB3C |
Schneider | 2 |
29 | proximity switch | 140519535 | Omron | 1 |
30 | organic glass | W.10mm | Shenzhen acrylic | head cover parts |
31 | Hydraulic support bar | Max.15KG | Dongguan chi ma hydraulic | 2 |
