Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
High Light: | pill blister packaging machine,pharmaceutical packaging machines |

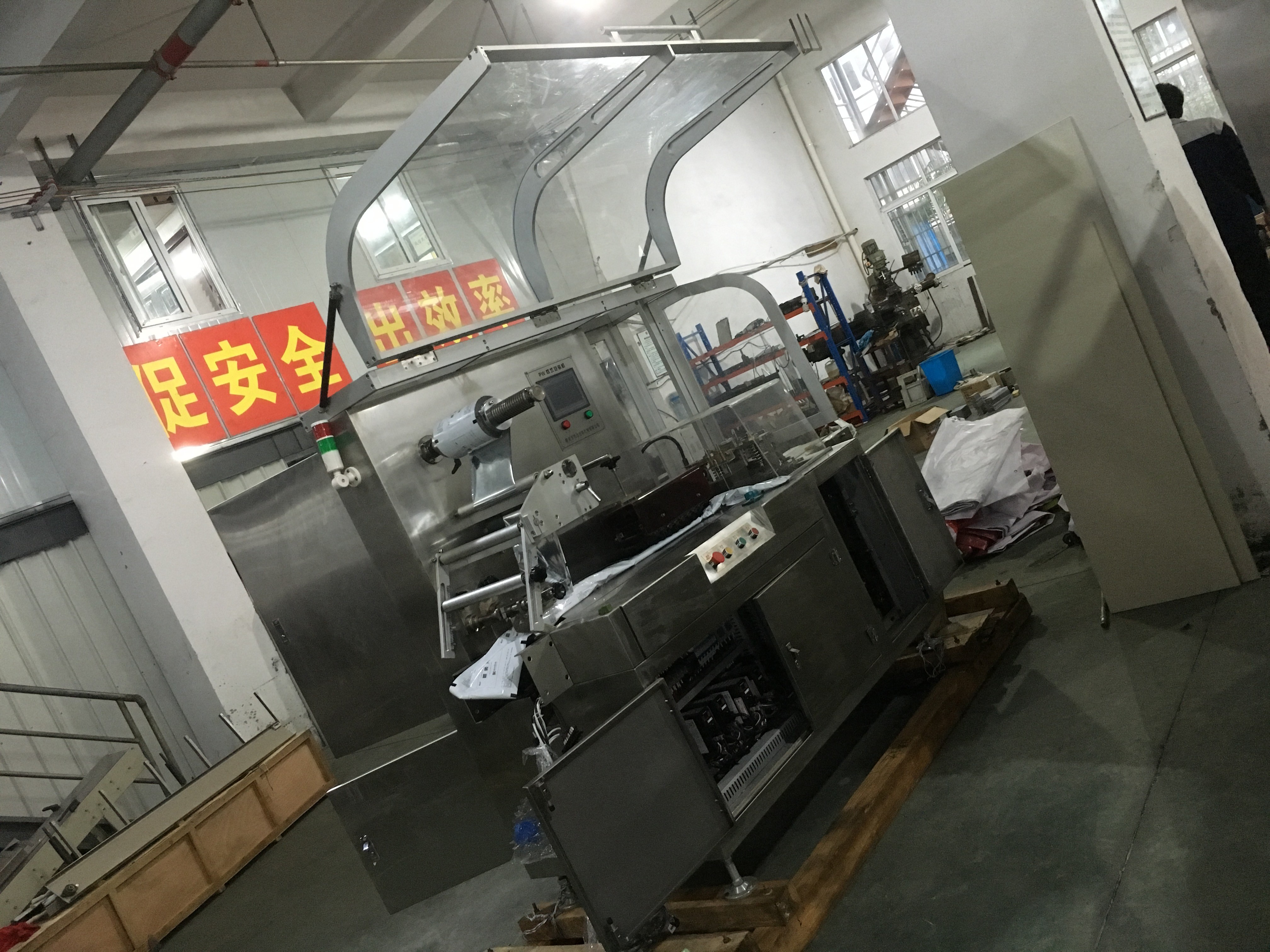

high speed Reciprocating pillow type stainless steel medical packing machine starved feeding shut down
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics

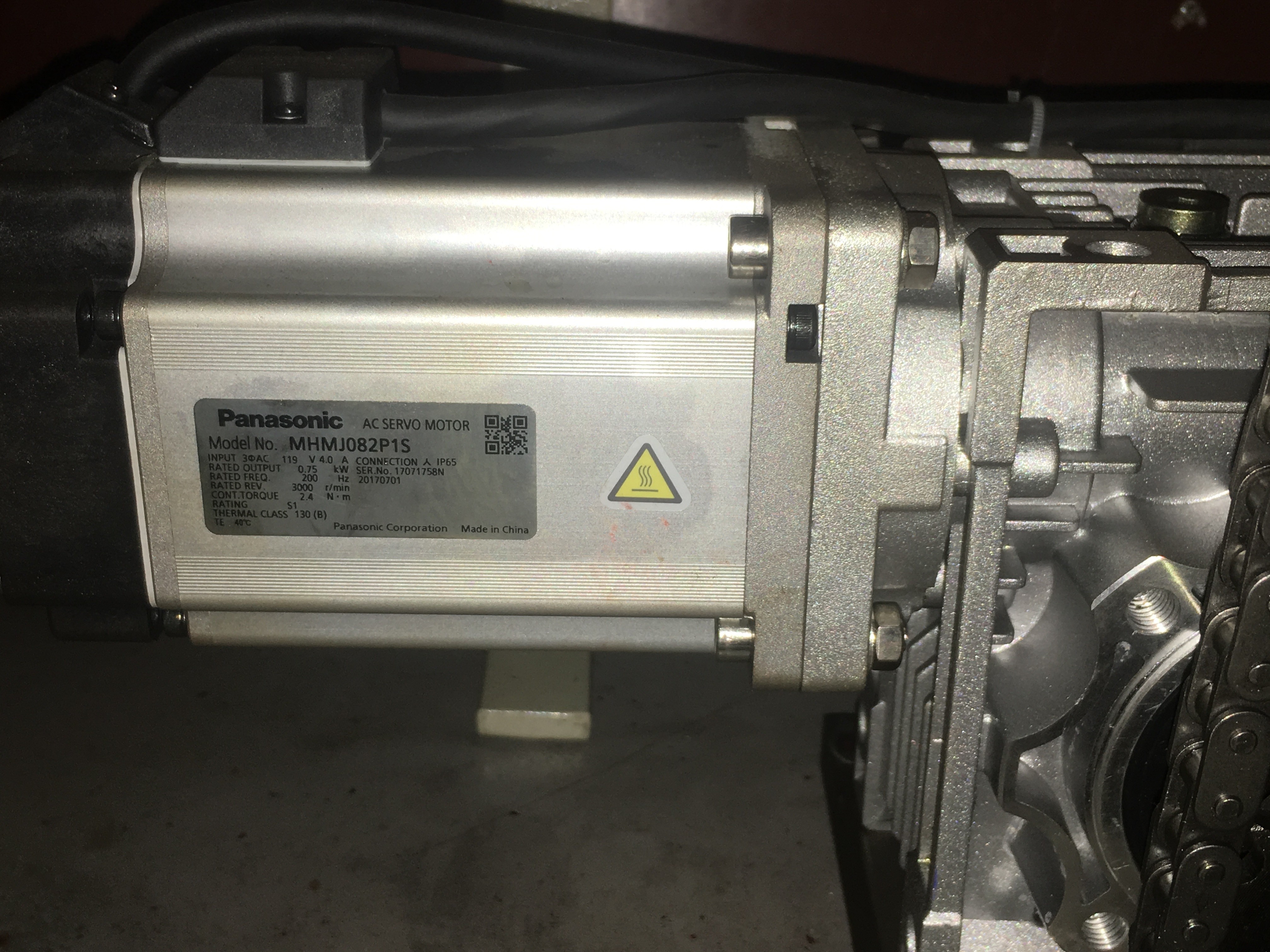

1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise; photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film; modulation bag machine, compact structure, convenient replacement of varieties; low noise. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
2. in the packaging machine can meet the packaging requirements to ensure the packaging film has the advantages of convenient adjustment, simple structure, stable operation, reliable work, easy maintenance, high efficiency, low cost and convenient operation is based on the characteristics of the packaging machine, and reduces the labor intensity of workers, improve labor productivity; strong applicability. Have a good economy.
correlating parameter
The machine type
|
GPW-350 |
Film Width
|
Max.350mm |
Bag length
|
100~200mm |
Product Height
|
10~50mm |
film diameter
|
Max.400mm |
Packing speed
|
5~150package/minute
|
power
|
220V50/60Hz3.2Kw |
Machine size
|
(L)4200×(W)960×(H)1520mm |
machine weight
|
About 1160Kg |
Air Pressure
|
≥0.2 MPa |
feature:
1. Dual inverter control bag length that is set that is cut, no need to adjust the air to go, one step in place, save time and film.
2. Man-machine interface, the parameters set top convenient.
3. Fault self-diagnosis function, fault display at a glance.
4. High sensitivity photoelectric eye color tracking, digital input sealing position, so that the sealing position more accurate.
5. Temperature independent PID control, good for a variety of packaging materials.
6. Stop positioning function, do not stick knife, do not waste the envelope.
7. Transmission system is simple, more reliable, more convenient maintenance.
8. All the control by the software to facilitate functional adjustment and technology upgrades, never backward.
