| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | PW-300C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | pharmaceutical packaging machines,medicine packaging machine |
||

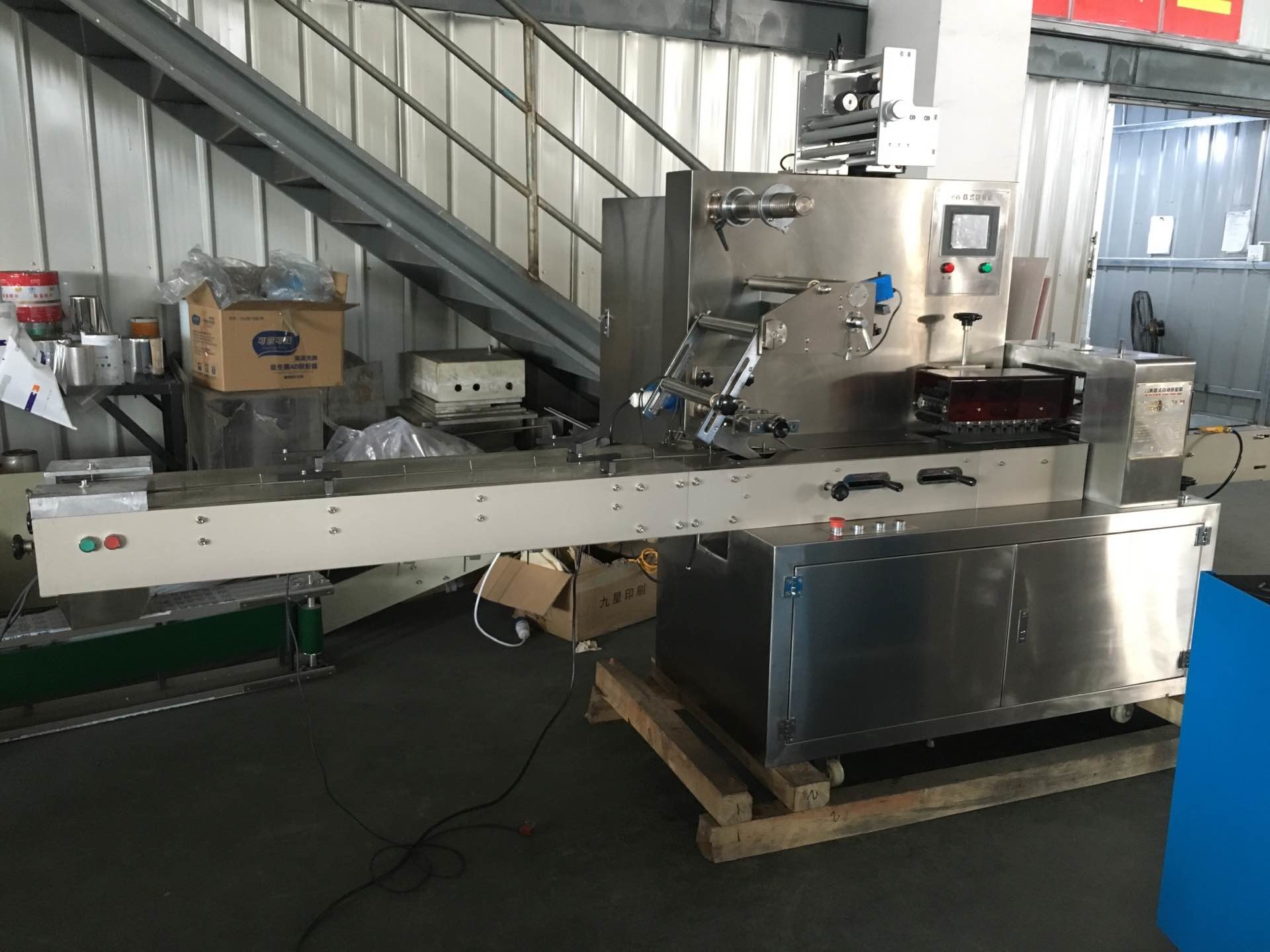

mature technology Horizontal Packing Machine with Perfect service system
The main performance and structure characteristics
(1). Double transducer control, flexible bag length cutting,operator needn’t to adjust the empty walking, saving time and saving films.
(2). Touched man-machine interface, convenient and quick parameter setting.
(3). Self diagnosis failure function, clear failure display.
(4). High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing cutting more accurate.
(5). Adopt PLD control to temperature suitable for various packing materials.
(6). Stopping the machine in selected position, no sticking to the knife and no waste packing film.
(7). Simple driving system, reliable working, convenient maintenance.
(8). All the controls are achieved by software.convenient for function adjusting and upgrading.
Scope of application:
It is specially designed for the packaging of the aluminum foam cover plate and other similar materials.
|
The machine type
|
GPW-350 |
|
Film Width
|
Max.350mm |
|
Bag length
|
100~200mm |
|
Product Height
|
10~50mm |
|
film diameter
|
Max.400mm |
|
Packing speed
|
5~150package/minute
|
|
power
|
220V50/60Hz3.2Kw |
|
Machine size
|
(L)4200×(W)960×(H)1520mm |
|
machine weight
|
About 1160Kg |
|
Air Pressure
|
≥0.2 MPa |

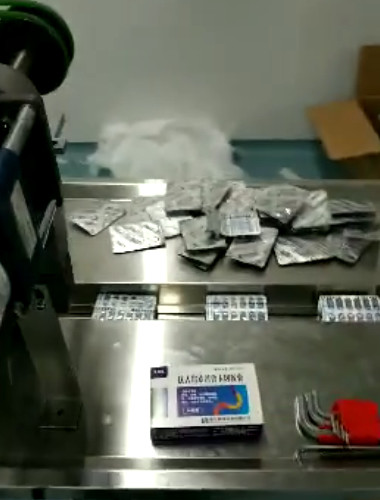

Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
Maintain and Keep
1. Clean and maintain per shift
(1). Must shut down power supply before cleaning and wiping machine. In order to grarantee that persons and machine are safe.
(2). Wipe workbench and surface of the machine by wet duster.
(3). Use constingent air to swept products chipping in feeding dcvice and terminal sealing place away.
(4). Use steel brush which are wipe with lube swept film chipping on terminal sealing knife.
2. Inspection and maintain per month.
(1). Giving oil to the gear & the heel zip in the sentem according to the principle of wiping. Don’t give oil to the sending stripe and step stripe.
(2). Give oil to peeite sealing gear.
(3). To checl whether the zip and stripe is tight or loosem in the sending part, regular when necessary.
(4). To check whether the screw and nut is loosen or tight when necessary.
(5). To check the electric brush, wipc it when necessary.
