Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
High Light: | pharmaceutical packaging machines,medicine packaging machine |

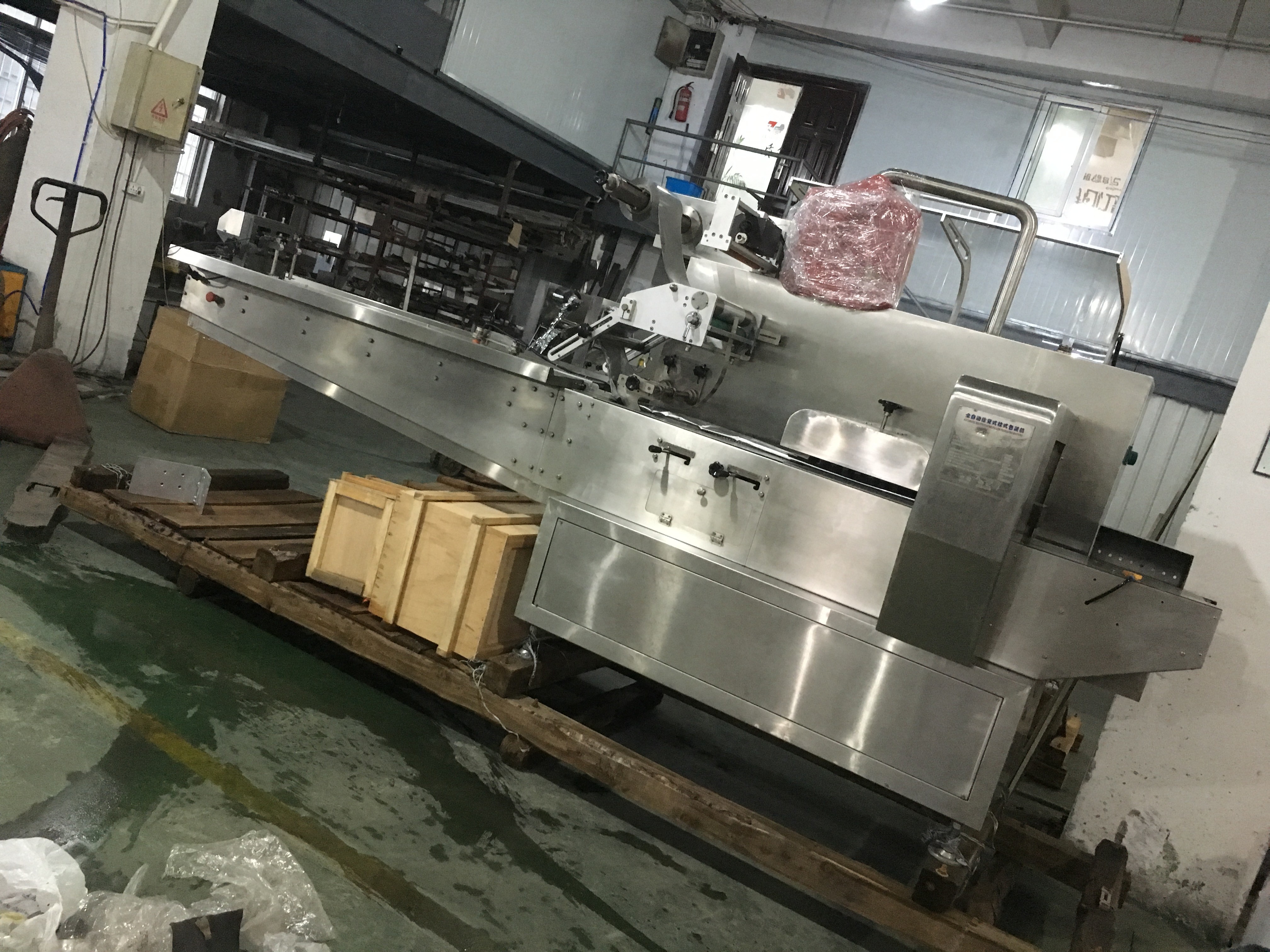

Stainless steel fuselage and has good sealing performance Medical Packing Machine with easy maintenance
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise;
2. photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film. modulation bag machine, compact structure, convenient replacement of varieties; low noise.
3. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
4. in the packaging machine can meet the packaging requirements to ensure the packaging film has the advantages of convenient adjustment, simple structure, stable operation, reliable work, easy maintenance, high efficiency, low cost and convenient operation is based on the characteristics of the packaging machine, and reduces the labor intensity of workers, improve labor productivity; strong applicability. Have a good economy.
5. Warranty:We warranty against any defects in design and workmanship for 1 year from the shipment date.This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
correlating parameter
The machine type
|
GPW-350 |
Film Width
|
Max.350mm |
Bag length
|
100~200mm |
Product Height
|
10~50mm |
film diameter
|
Max.400mm |
Packing speed
|
5~150package/minute
|
power
|
220V50/60Hz3.2Kw |
Machine size
|
(L)4200×(W)960×(H)1520mm |
machine weight
|
About 1160Kg |
Air Pressure
|
≥0.2 MPa |

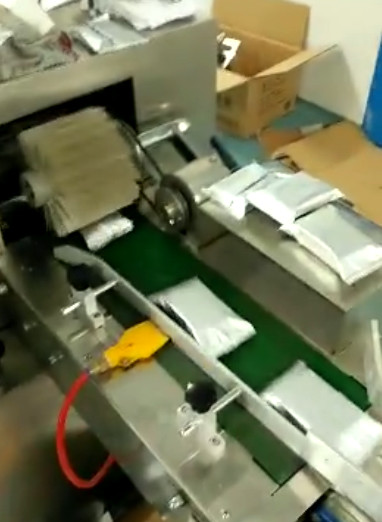

Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
Configuration list
serial number
|
Name |
Type and specification |
Manufacturer |
QUANTITY
|
1 | Programmable controller (PLC) | FPO—60T | Panasonic | 1 |
2 |
Touch Screen
|
PW-5610-SB |
Taiwan HITECH |
1 |
3 | Thermometer MODE | PA-TC1 | JP | 2 |
4 |
Automatic Blanking motor
|
servo motor 0.4KW |
Panasonic
|
|
5 |
Feeding motor
|
servo motor 0.4KW |
Panasonic
|
1 |
6 | Reciprocating tool carriage motor |
servo motor 0.75KW |
Panasonic | 1 |
7 | Send film Motor |
servo motor 0.75KW |
Panasonic | 1 |
8 | Middle heating tube |
300W~110V 10*150mm |
jiangsu weineng | 2 |
9 |
Hor Heater
|
300W~110V 10*100mm |
Jiangsu weineng | 2 |
10 |
Yellow and green button.
|
XB2—BA—51C—42C—30C |
Schneider
|
3 |
11 |
Emergency Stop Switch
|
XB2—BS542C |
Schneider
|
1 |
13 |
switching power
|
S—35—24 |
Taiwan MingWei
|
1 |
14 | uselage | 304#stainless steel |
Shanghai lijun |
The machine shell |
15 | photoelectric switch | GDJ-211 | Dongtou jungong | 1 |
16 | Coding Machine | MS-20 | Whenzhou shenglong | 1 |
17 | chain | Four points of general | Hubei sanhu |
1 strip
|
18 |
chain
|
Three points of general | Hubei sanhu |
3 strip
|
19 | thermocouple | K type | Shanghai yatai | 3 |
20 | test | 1500S | Omron | 1 |
21 | conveyer belt | 920*120*2 | Honestek | 3 |
22 | Solid-state relay |
SSR series MGR-104825 |
MEGIR | 5 |
23 | Yellow relay | YFA-28CA | Taiwan yifa | 1 |
24 | encoder | S3.806-H03G1000BZ3 | Wuxi ruipu | 1 |
25 |
The sealing electromagnet
|
MPB1-2.5YC220VAC | Whenzhou xinhao | 1 |
26 | air switch | XB2-60C151P | China chint | 5 |
27 | linear bearing | 51101 | TaiChang bearing | 2 |
28 | The red and green light |
XB2—BVM4C XB2—BVB3C |
Schneider | 2 |
29 | proximity switch | 140519535 | Omron | 1 |
30 | organic glass | W.10mm | Shenzhen acrylic | head cover parts |
31 | Hydraulic support bar | Max.15KG | Dongguan chi ma hydraulic | 2 |
