| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | pill blister packaging machine,medicine packaging machine |
||

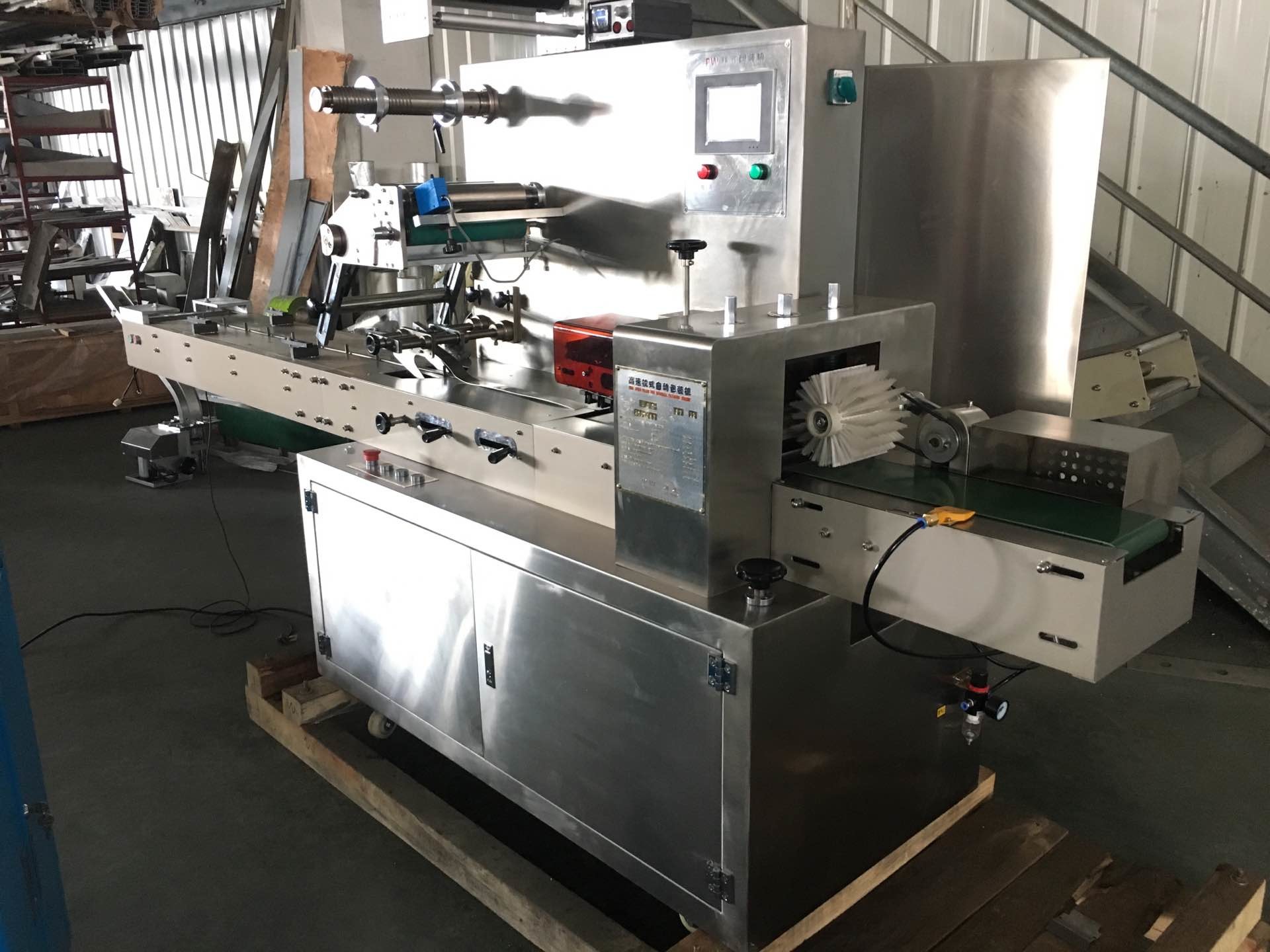

high efficiency medical Packing Machine has good sealing performance
Machine directions
Structure features
(1). Double transducer control, flexible bag length cutting,operator needn’t to adjust the empty walking, saving time and saving films.
(2). Touched man-machine interface, convenient and quick parameter setting.
(3). Self diagnosis failure function, clear failure display.
(4). High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing cutting more accurate.
(5). Adopt PLD control to temperature suitable for various packing materials.
(6). Stopping the machine in selected position, no sticking to the knife and no waste packing film.
(7). Simple driving system, reliable working, convenient maintenance.
(8). All the controls are achieved by software.convenient for function adjusting and upgrading.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
