Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Film Diameter: | Max.400mm |
Machine Weight: | About 1160Kg | Machine Size: | (L)4200×(W)960×(H)1520mm |
High Light: | pharmaceutical packaging machines,medicine packaging machine |

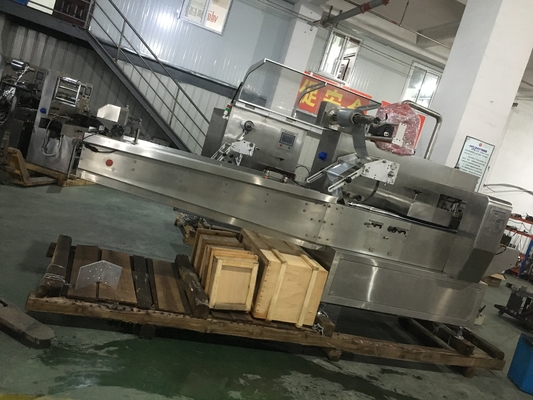

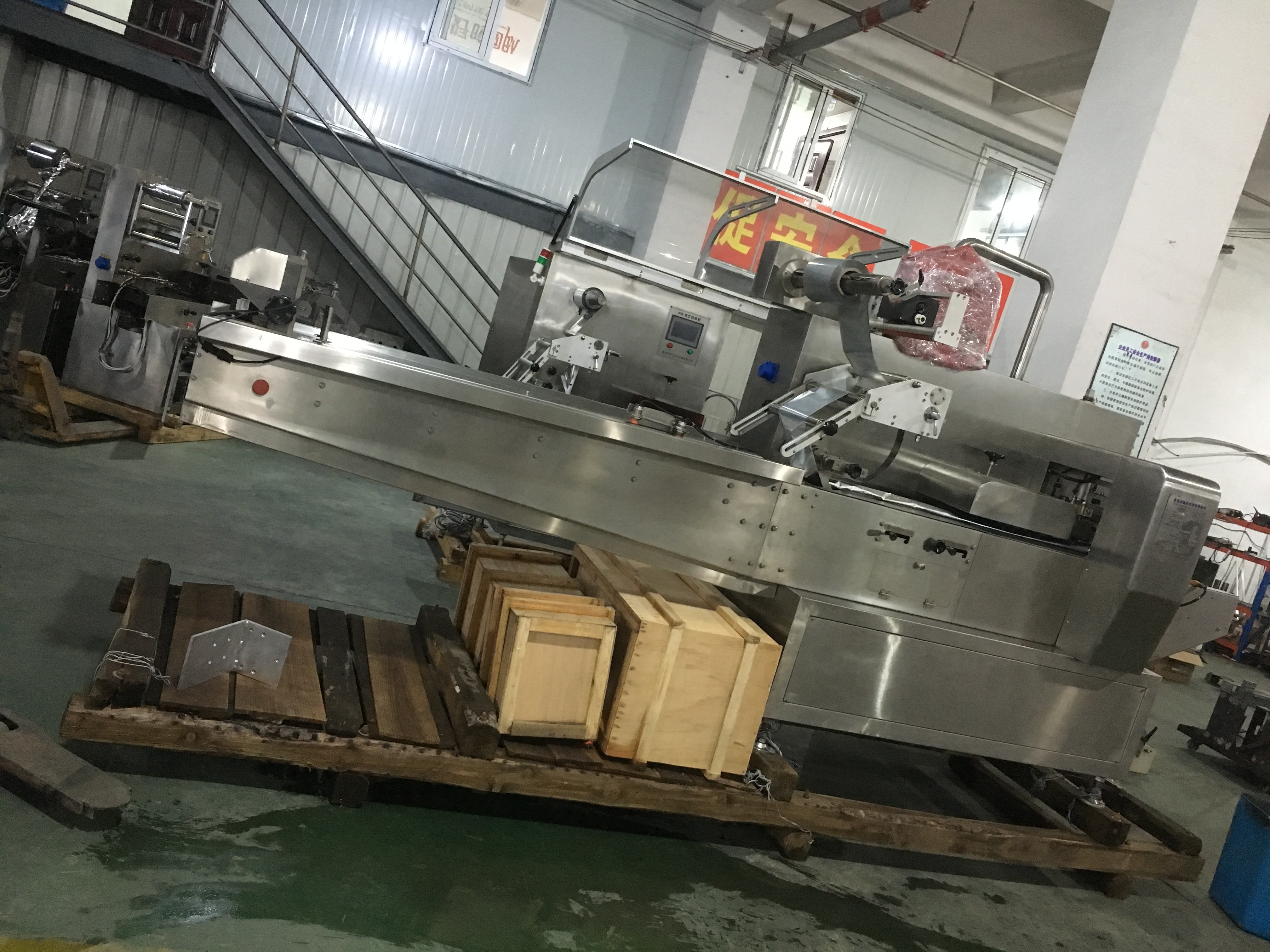

Reciprocating pillow type automatic feeding stainless steel Medical cotton swab packing machine
scope of application
Application of pillow type packing machine in the food industry and the pharmaceutical packaging industry, greatly improving the health level of the packaging process, to achieve full closure, no chisel, clean packaging packaging process, packaging industry development is a milepost, also lifted people tedious work, make the efficiency of packing is greatly improved, for the packaging industry the rapid leapfrog development provides a new platform.
structure characteristics
1. Advanced heating methods, energy-efficient. Intelligent temperature controller, controlled by an independent PID, thermostat adjustable, heating speed, to ensure that the temperature control error <± 1 ℃, suitable for a variety of packaging materials. When the temperature exceeds the setting range, the device alarms.
2, three servo control, bag length is set is cut, don't need to adjust empty, one pace reachs the designated position, convenient province membrane.
3, touch interface, convenient and quick parameter setting.
4, fault self-diagnosis function, fault shows at a glance.
5, side sealing Angle device, pocket is more beautiful, upgrade the product.
6, positioning stop function, non-stick knives, do not waste envelope.
7. all control by the software implementation, convenient function adjustment and technology upgrade, never backward.
8, and cartoning machine aluminum-plastic blister packaging machine easily.
Configuration list
name | Model and specification | manufacturer | quantity |
Appearance body | All stainless steel body 304 # | The machine shell | |
Transmission of the tail | Fujian aluminium profile | The whole machine delivery | |
Switching power supply | S—35—24 | Taiwan MeanWell | 1 |
emergency stop switch | XB2—BS542C | Schneider | 1 |
Red green indicator | AD16-220S | Shanghai anapt | 2 |
ellow and red green button | XB2-A-1C-2C-0C | Schneider | 3 |
Solid state relay | SSR series MGR-104825 | MEGIR | 3 |
Photoelectric switch | CX—424 | Japan panasonic | 3 |
Air switch | DZ-47-60/C15 | China chint | 3 |
DZ-47-60/C25 | China chint | 1 | |
Feeding servo motor | 0.4KW | Japan panasonic | 1 |
encoder | B-ZSP4006GC 5-24VDC | Wuxi Ruipu | 2 |
Medium sealed electromagnet | MPB1-2.5YC/220VD | Wenzhou xinhao industrial control | 1 |
Conveyor belt | 460*120*2 | Xiamen Olide | 2 |
Code printer | MS-200I | WhenZhou Shenglong | 1 |
Electric coupling | K type | Shanghai Yatai | 3 |
Main switch | 20A-4KW | Changjiang electric | 1 |
White relay | JQX-13F(D) | China chint | 3 |

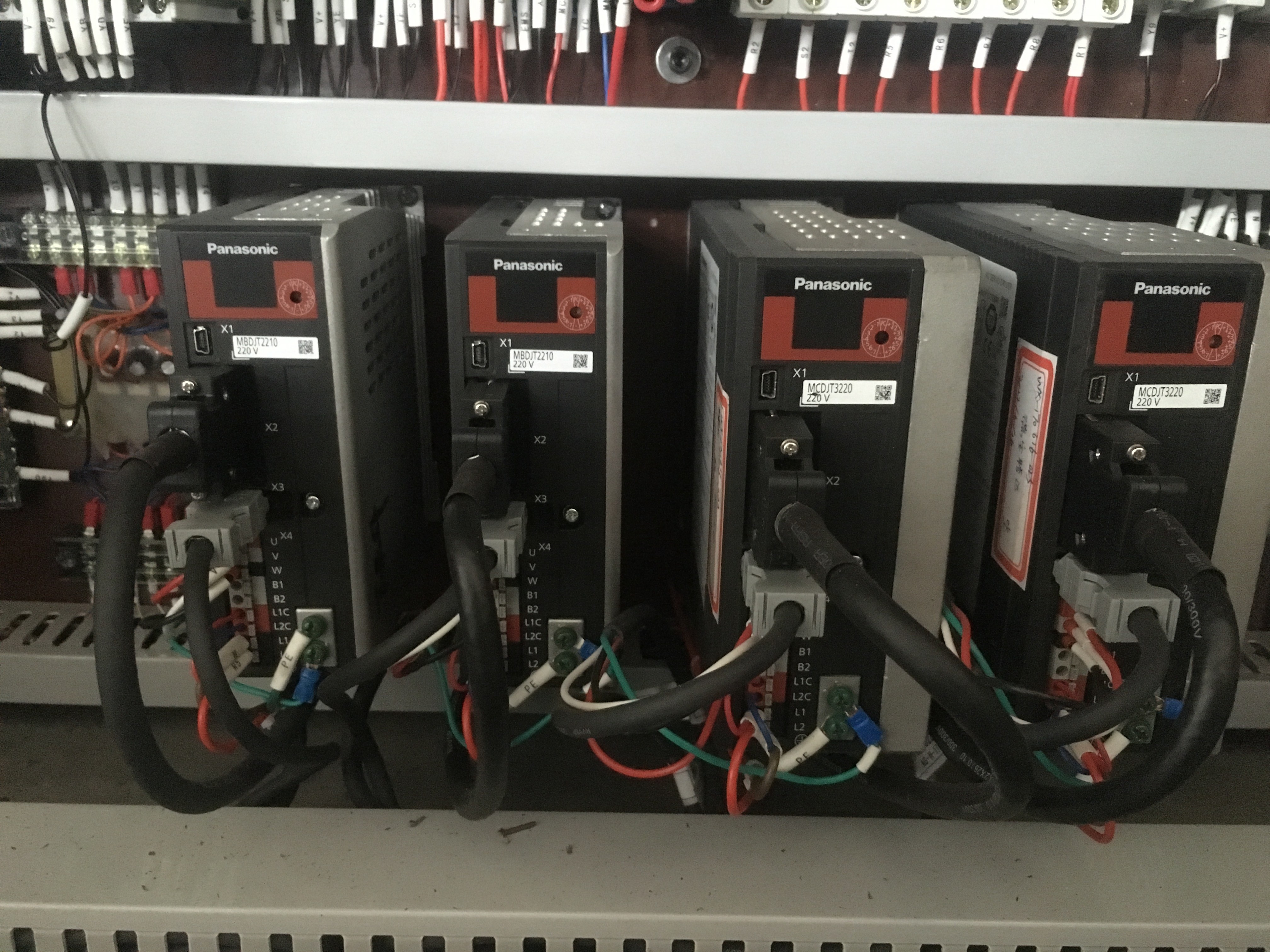

feed servo driver | MBDJT2210/220VDC | Japan panasonic | 1 |
Proximity switch | SC3015-NL | ROKO | 1 |
SC3015-N | ROKO | 1 | |
Total power outlet | TYPE/ST-313 | SET | 1 |
Synchronous belt | 5M670 B25 | Japan panasonic | 1 |
Touch screen | PW-5610-SB | HITECH | 1 |
Motion controller | ASD-M-0721-R | Delta | 1 |
Servo motor | ECMA-C10807RS(750W) | Delta | 2 |
Servo motor | ECMA-C106047RS | Delta | 1 |
Servo driver | ASD-A2-0421-F | Delta | 1 |
Programmable module | ASD-DMC-RM32PT | Delta | 1 |
Temperature module | DTE-1000 | Delta | 1 |
