Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Film Diameter: | Max.400mm |
Machine Weight: | About 1160Kg | Machine Size: | (L)4200×(W)960×(H)1520mm |
High Light: | pill blister packaging machine,pharmaceutical packaging machines |

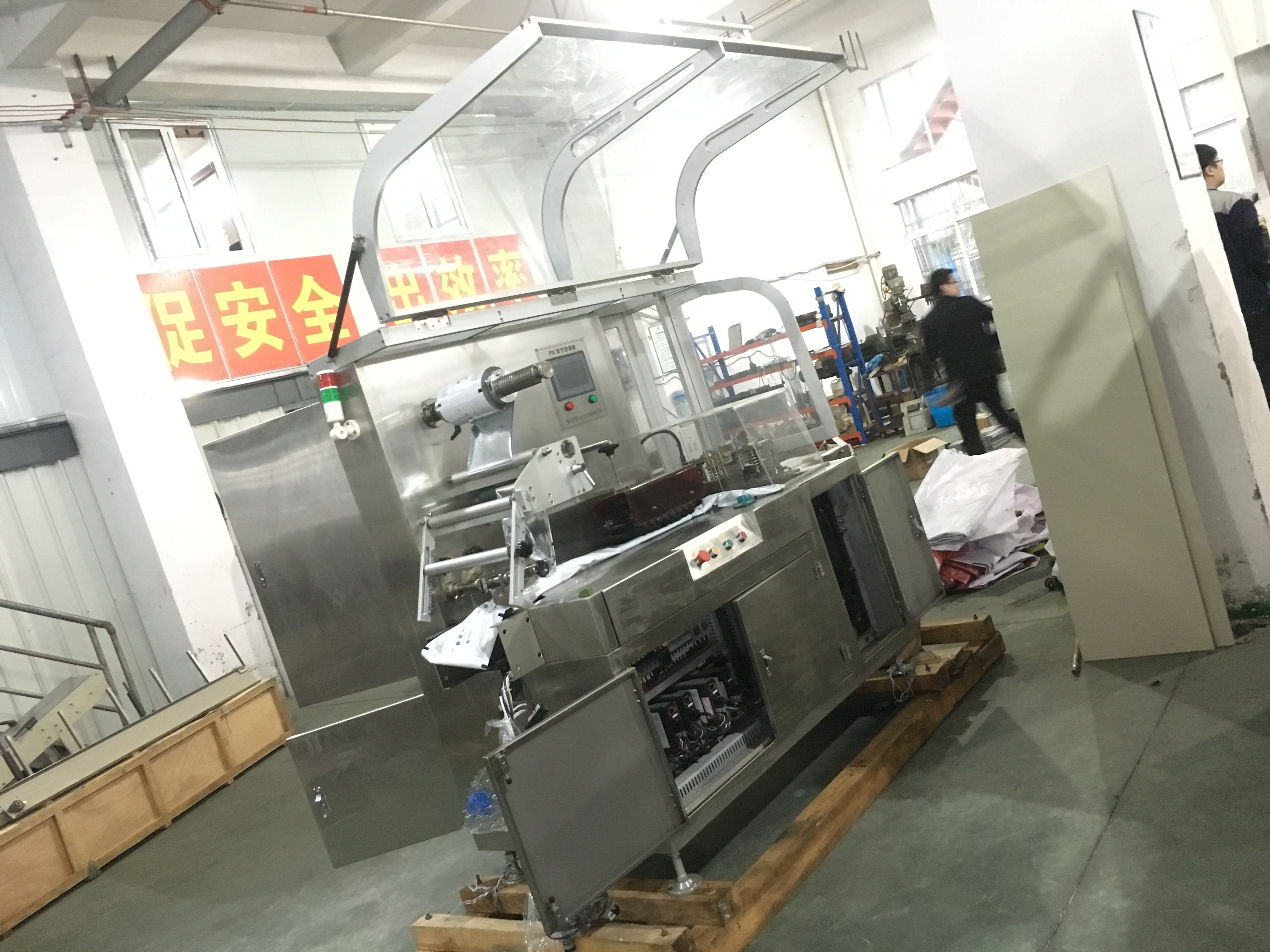

Reciprocating pillow type starved feeding shut down stainless steel blister packing machine
scope of application
Application of pillow type packing machine in the food industry and the pharmaceutical packaging industry, greatly improving the health level of the packaging process, to achieve full closure, no chisel, clean packaging packaging process, packaging industry development is a milepost, also lifted people tedious work, make the efficiency of packing is greatly improved, for the packaging industry the rapid leapfrog development provides a new platform.
The main performance and structure characteristics
1. Reciprocating knife frame structure, affected by the packaging material.
2. 4 servo control, the bag length is set or cut, no need to adjust the air, one step is in place, save time the film.
3. Adopt Taiwan and Japan imported electric appliances, touch machine interface, parameter setting is convenient and fast.
4. The fault self-diagnosis function, the fault display is clear.
5. High sensitivity photoelectric eye color tracking, making the sealing position more accurate.
6. Temperature independent PID control, better suitable for various materials coating.
7. Locate the stop function, not stick to the knife, no film.
8. The rotation system is simple, the work is more reliable, and the maintenance is more convenient.
9. All controls are implemented by software, convenient function adjustment and technology upgrade, never lag behind.
10. Using servo feeding, the operation is convenient and fast, only on the screen operation.
After-sale service:
1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.
2. Test run of the machine & training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .
We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 100usd living allowances.
3.Training of buyer in China:
We supply the free training of buyer , the training won’t stop until the buyer control the whole lesson! The cost of air ticket, boarding and lodging should provided by buyer
4. We supply the consumable spare parts for free for one years use.
Configuration list
name | Model and specification | manufacturer | quantity |
Appearance body | All stainless steel body 304 # | The machine shell | |
Transmission of the tail | Fujian aluminium profile | The whole machine delivery | |
Switching power supply | S—35—24 | Taiwan MeanWell | 1 |
emergency stop switch | XB2—BS542C | Schneider | 1 |
Red green indicator | AD16-220S | Shanghai anapt | 2 |
ellow and red green button | XB2-A-1C-2C-0C | Schneider | 3 |
Solid state relay | SSR series MGR-104825 | MEGIR | 3 |
Photoelectric switch | CX—424 | Japan panasonic | 3 |
Air switch | DZ-47-60/C15 | China chint | 3 |
DZ-47-60/C25 | China chint | 1 | |
Feeding servo motor | 0.4KW | Japan panasonic | 1 |
encoder | B-ZSP4006GC 5-24VDC | Wuxi Ruipu | 2 |
Medium sealed electromagnet | MPB1-2.5YC/220VD | Wenzhou xinhao industrial control | 1 |
Conveyor belt | 460*120*2 | Xiamen Olide | 2 |
Code printer | MS-200I | WhenZhou Shenglong | 1 |
Electric coupling | K type | Shanghai Yatai | 3 |
Main switch | 20A-4KW | Changjiang electric | 1 |
White relay | JQX-13F(D) | China chint | 3 |
feed servo driver | MBDJT2210/220VDC | Japan panasonic | 1 |
Proximity switch | SC3015-NL | ROKO | 1 |
SC3015-N | ROKO | 1 | |
Total power outlet | TYPE/ST-313 | SET | 1 |
Synchronous belt | 5M670 B25 | Japan panasonic | 1 |
Touch screen | PW-5610-SB | HITECH | 1 |
Motion controller | ASD-M-0721-R | Delta | 1 |
Servo motor | ECMA-C10807RS(750W) | Delta | 2 |
Servo motor | ECMA-C106047RS | Delta | 1 |
Servo driver | ASD-A2-0421-F | Delta | 1 |
Programmable module | ASD-DMC-RM32PT | Delta | 1 |
Temperature module | DTE-1000 | Delta | 1 |
