Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | ||
High Light: | pharmaceutical packaging machines,medicine packaging machine |

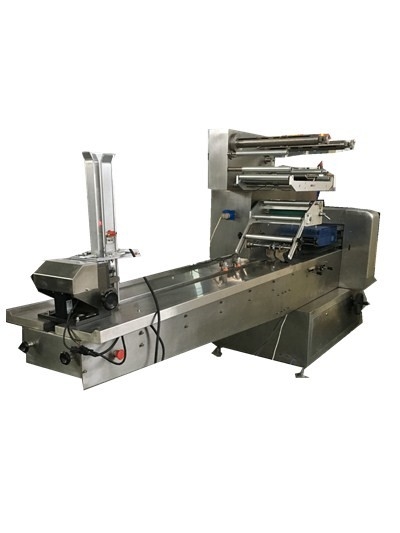

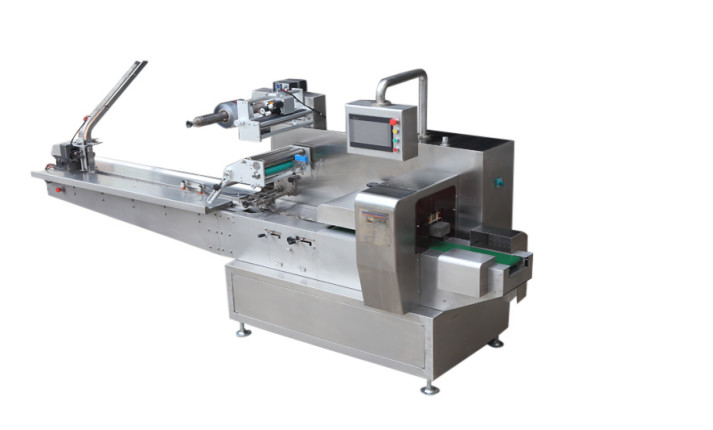

medical high speed pillow packing machine 5~150 package / minute special for cotton swabs
Automatic packaging machine with automatic measurement, filling, bagging, sealing, cutting off, conveying, printing production batch number, increase the easy incision, no material warning, mixing and other functions.
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1. side sealing Angle device, pocket is more beautiful, upgrade the product.positioning stop function, non-stick knives, do not waste envelope.drive system is concise, more reliable, more convenient maintenance. all control by the software implementation, convenient function adjustment and technology upgrade, never backward.
2. Transmission smooth, smooth and uniform film, membrane transmission with real-time correction.
3. Change the bag length, the rest of the device only need to do a small amount of adjustment or no adjustment, adjust the scale of the site to help accurate positioning
4. Equipment operation should be smooth, moving parts movements should be sensitive, coordinated, accurate, no card twisting and abnormal sound.
5.The equipment has a reliable grounding device and obvious safety signs. The nameplate, warning signs, function identification marks and grounding signs should be complete and effective, clearly and easily remembered.
correlating parameter
The machine type
|
GPW-350 |
Film Width
|
Max.350mm |
Bag length
|
100~200mm |
Product Height
|
10~50mm |
film diameter
|
Max.400mm |
Packing speed
|
5~150package/minute
|
power
|
220V50/60Hz3.2Kw |
Machine size
|
(L)4200×(W)960×(H)1520mm |
machine weight
|
About 1160Kg |
Air Pressure
|
≥0.2 MPa |
