Finished Package Size: | 70-1000/30-170/5-80mm | Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-450mm | Machine: | 220V |
Certificate Of Authentication: | CE | Packaging: | Composite Membrane |
High Light: | chocolate wrapping machine,candy packaging machine |

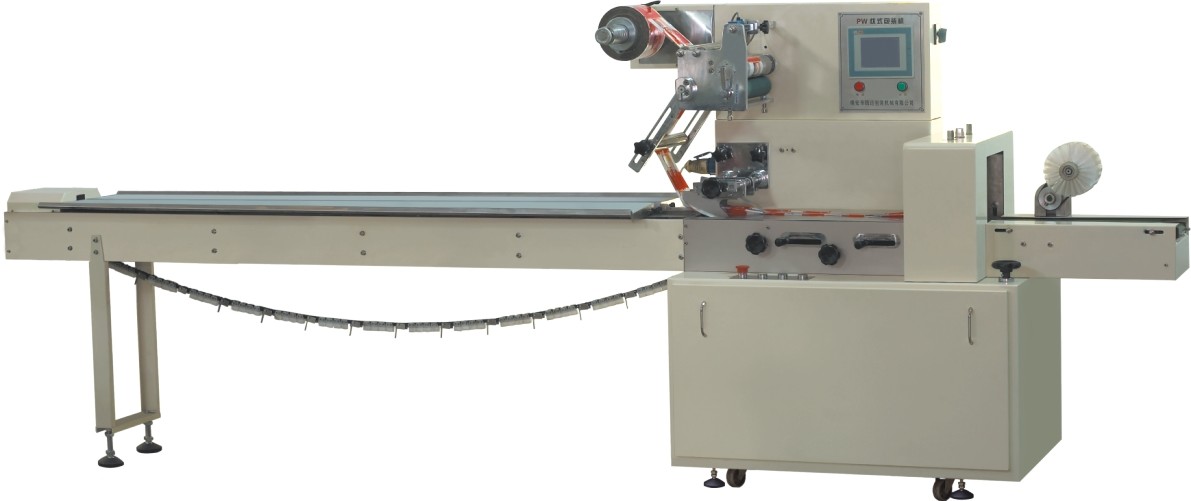

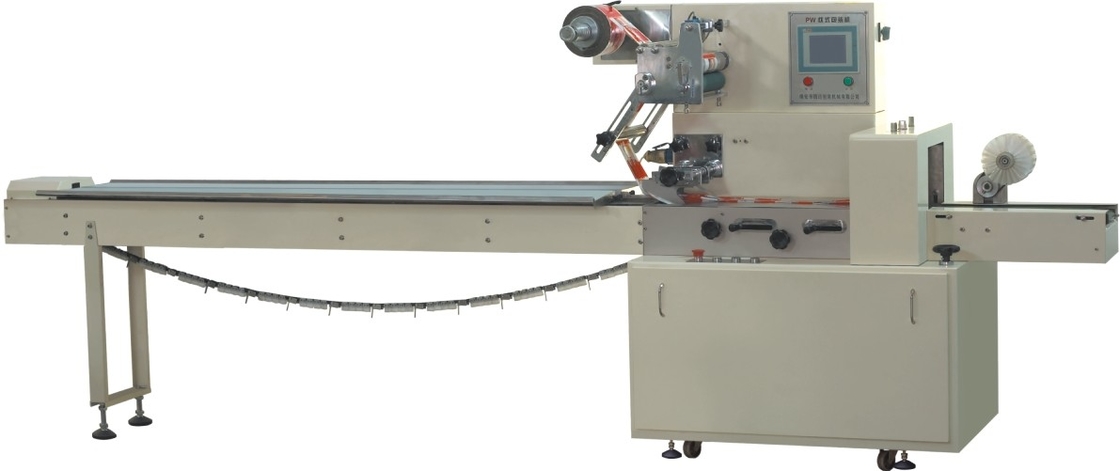

Temperature independent PID control Electroplating products packing machine Stable performance
Pricial capability and structural features:
1. A photoelectric switch, electromagnetic proximity sensors to achieve the welding temperature, bag positioning more stable tracking and detection.
2. With positioning stop function, do not stick knife, do not waste the envelope.
3. With automatic detection system and the screen shows a simple troubleshooting method to achieve automatic diagnosis, fault display, automatic exclusion, automatic alarm and automatic protection functions.
4. Material shift alarm shutdown, to ensure the safety of materials and cutters.
5. Sealing points (gaskets), lubrication points, pneumatic components are well sealed, no oil, gas, water leaks.
6. Casters facilitate mechanical movement, wear resistance, under a long time the load will not be deformed casters.
Finished package size(mm) | Length | 70-1000mm |
Width | 30-170mm | |
Height | 5-80mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 900kg | |
Overall size (length * width * height) | 4400×830×1700mm |
