| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | chocolate wrapping machine,candy packaging machine |
||

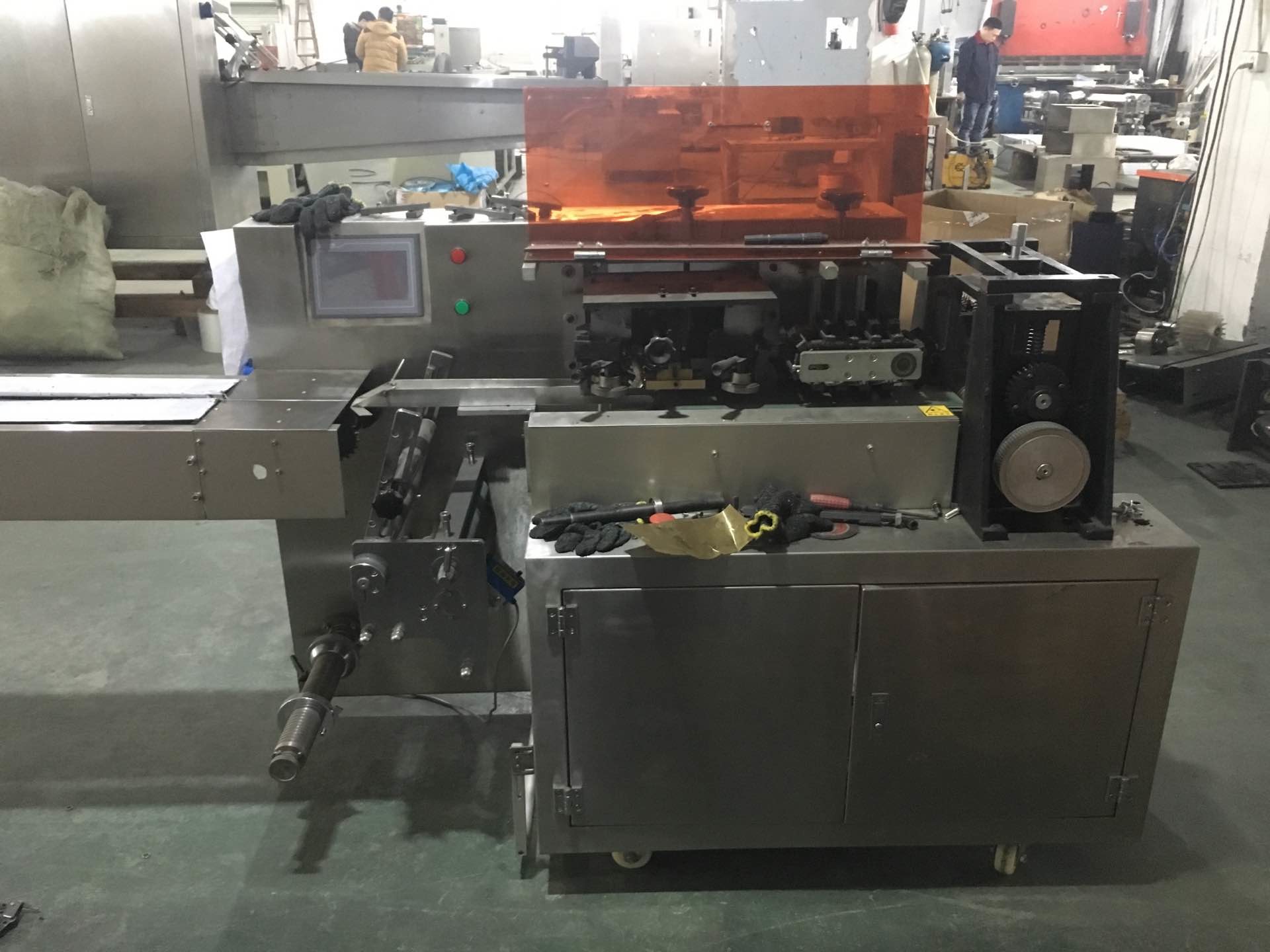

low energy consumption Snack Packaging Machine with Code function
Horizontal packing machine A kind of packing machine, suitable for the packaging of various regular objects such as biscuit, rice pass, snow cake, yolk pie, chocolate, bread, instant noodles, mooncake, medicine, daily necessities, industrial parts, paper box or tray.
Equipment capability:
1. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.
2. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
3. according to the positioning mark of packing material, the continuous photoelectric automatic positioning system is designed to eliminate the error and achieve the correct sealing and cutting.mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.
4. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.pillow type automatic packaging machine structure design function requirements: crosscut knife every turn, seal and cut off 1 times; vertical sealing mechanism in the machine power off can automatically open, also can manually separate two sealed heat sealing roller wheel. setting and control of sealing and cutting temperature.
5. can realize color mark tracking trademark to its function. the whole operation is stable and reliable, and can adapt to various specifications of the adjustment.
8. for the traction roller and the vertical roller, their movement first maintains the material to have the suitable tensioning in the entire movement process; secondly, their movement speed should adapt with the bag appearance.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Warranty:
1. We warranty against any defects in design and workmanship for 1 year from the shipment date.
2. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3. We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
