| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | chocolate wrapping machine,candy packaging machine |
||

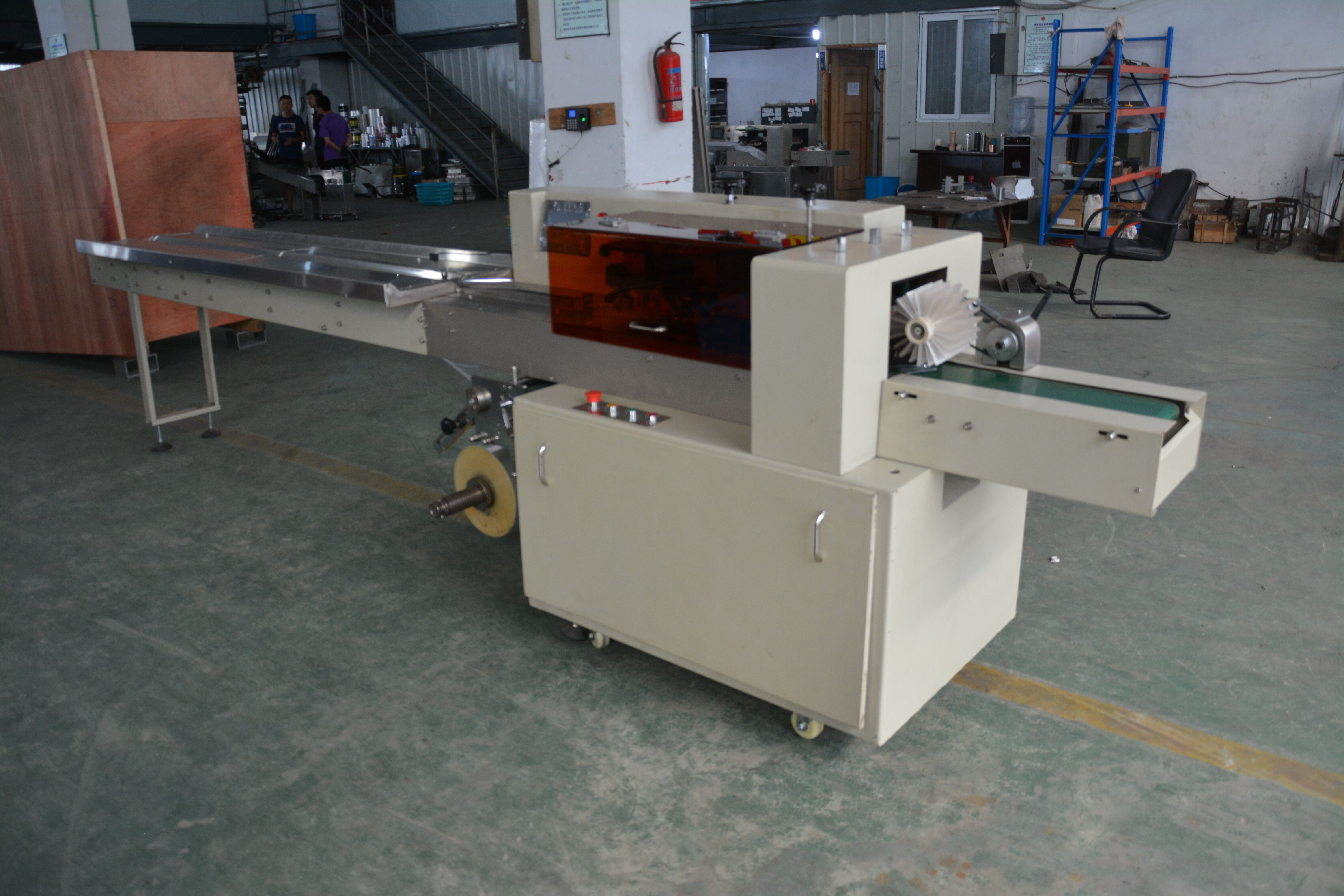

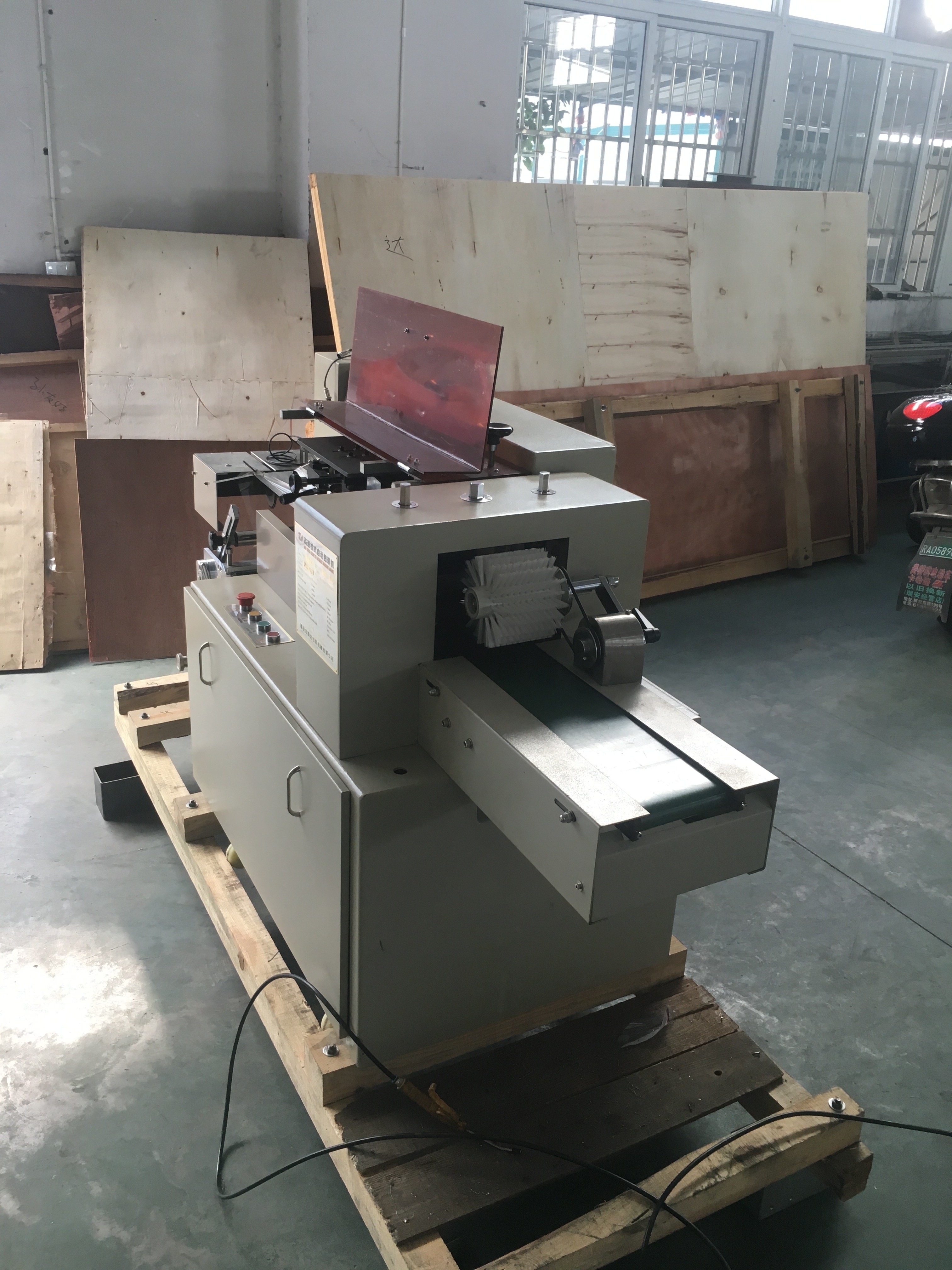

Stainless steel fuselage pillow type Snack Packaging Machine Special for Rice Noodles
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
feature:
1. All buttons on the control panel must have a Simplified Chinese logo.
2. Electrical control system should be safe and reliable, accurate action, the electrical connections should be firmly connected and numbered.
3. In the event of an unexpected power outage, the system enters safe mode (minimizes personal and device damage in safe mode). When power is restored, there is no operator action and the system will not restart.
4. The power switch and the operation button should be flexible, the indicator light should be normal.
5. The appearance of neat and tidy appearance, the external surface is smooth, no scratches, no damage, no significant rub bumps, the control of uniform and orderly and reasonable. All components should be designed and produced in accordance with GMP environmental requirements, free from contamination, rust and easy to clean the surface.
6. Non-processed surface paint or spray layer should be smooth, uniform color, no obvious pollution, flow marks, blisters, repair marks and other defects. Surface treatment of parts should be uniform color, no blistering, from the floor, spots, rust and other defects.
7. Can accommodate different size of the package material, change the size and convenience.
