| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | candy packaging machine,flow pack packaging machine |
||

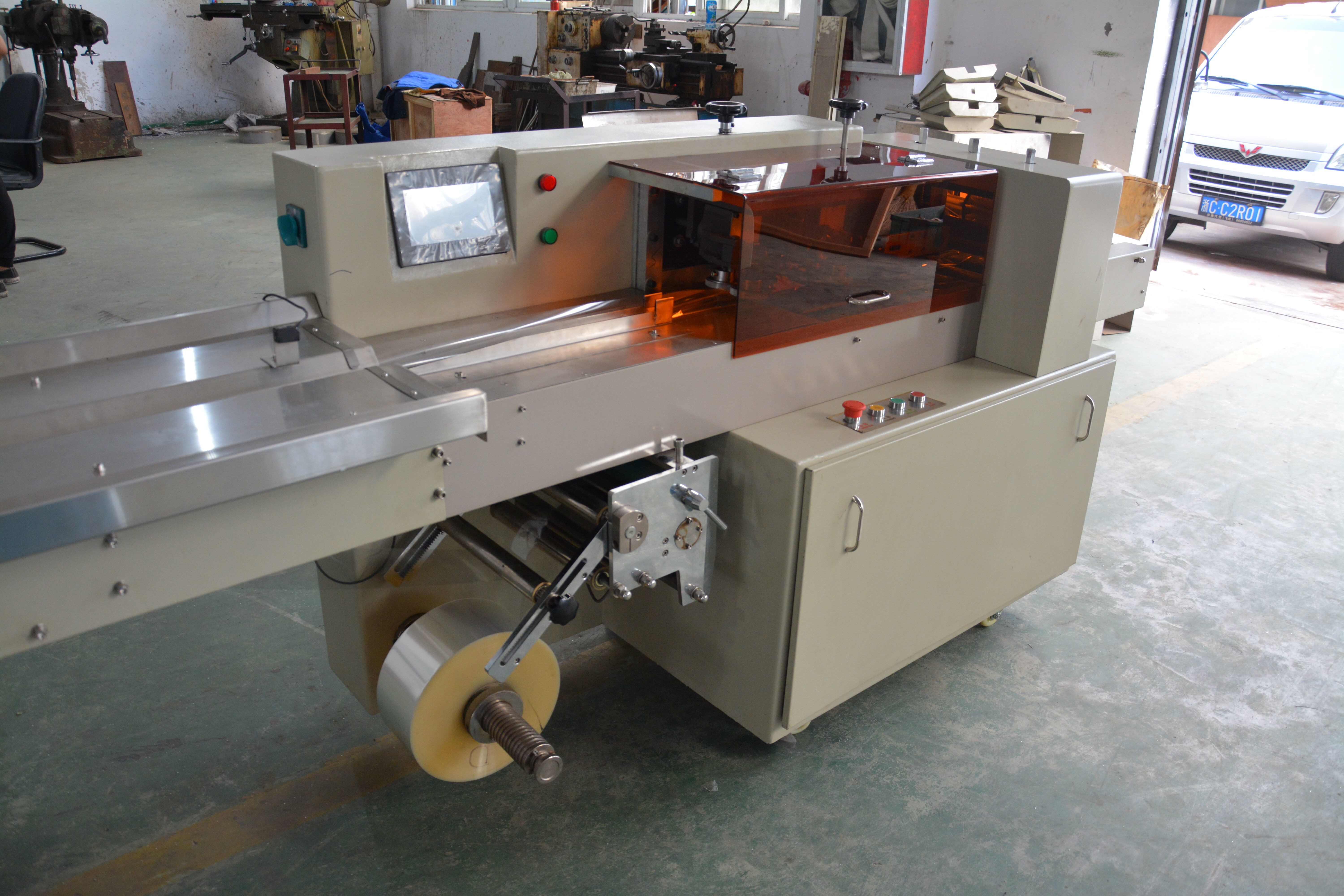

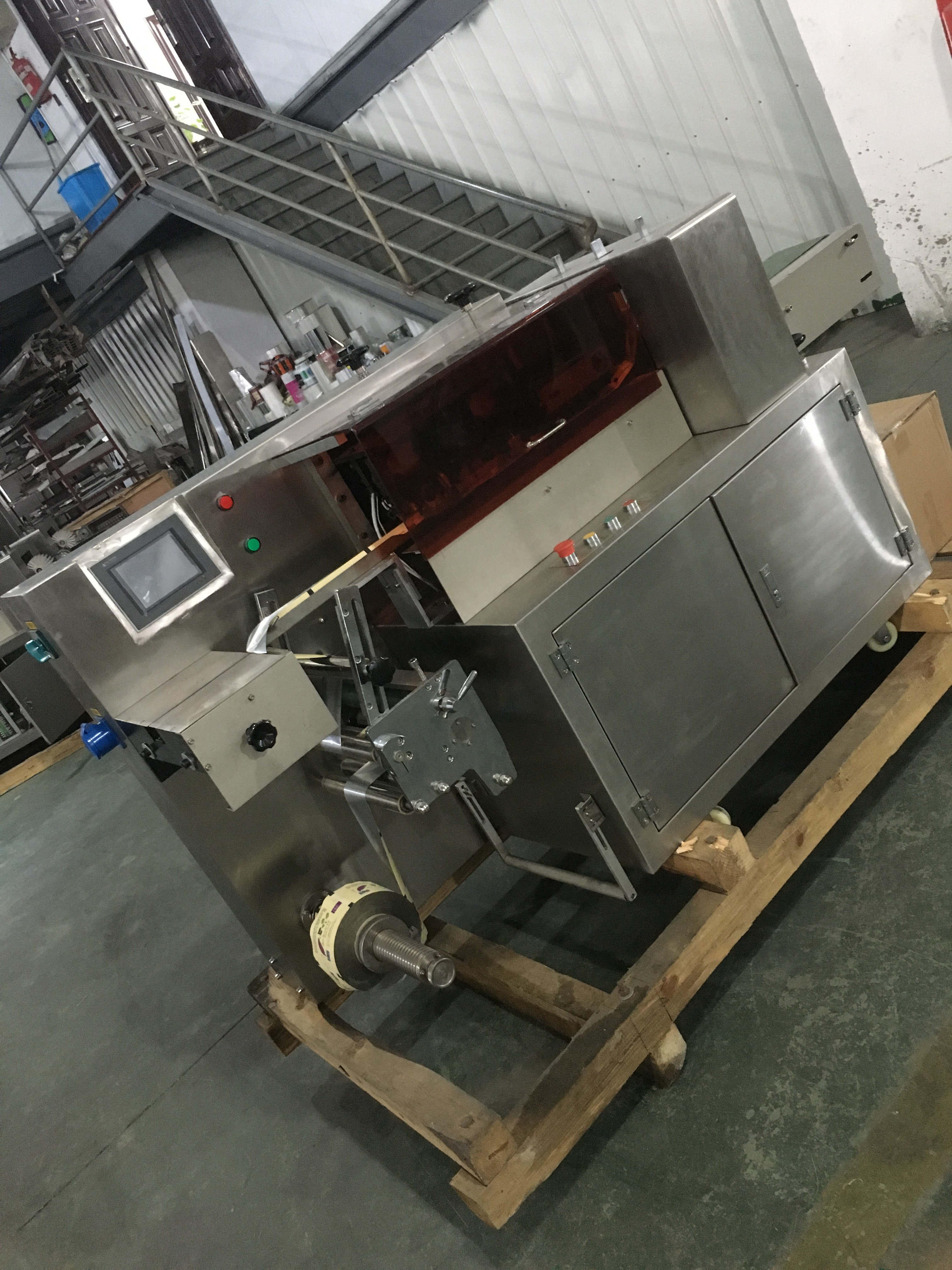

Stainless steel fuselage Professional pillow type Snack Packaging Machine with Code function
Pillow packaging machine is currently the latest automatic shrink packaging equipment, the use of ordinary electric wire heating method, which features fast on the temperature, good stability, low maintenance costs, shrinking temperature and motor speed stability adjustable, And adjust a wide range of original drum rotation device, continuous work. Therefore, the heat shrinkable machine with advanced design, stable and reliable performance, energy-saving and efficient, good shrinkage effect, novel and beautiful structure, easy operation and maintenance features can be applied to any shrink film shrink packaging. Compressor performance than ever before, better packaging, ease of use.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
1. Dual inverter control bag length that is set that is cut, no need to adjust the air to go, one step in place, save time and film.
2. Man-machine interface, the parameters set top convenient.
3. Fault self-diagnosis function, fault display at a glance.
4. High sensitivity photoelectric eye color tracking, digital input sealing position, so that the sealing position more accurate.
5. Temperature independent PID control, good for a variety of packaging materials.
6. Stop positioning function, do not stick knife, do not waste the envelope.
7. Transmission system is simple, more reliable, more convenient maintenance.
8. All the control by the software to facilitate functional adjustment and technology upgrades, never backward.
