| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-450A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 70-1000/30-170/5-80mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-450mm | Machine: | 220V |
| Certificate Of Authentication: | CE | Packaging: | Composite Membrane |
| High Light: | chocolate wrapping machine,candy packaging machine |
||

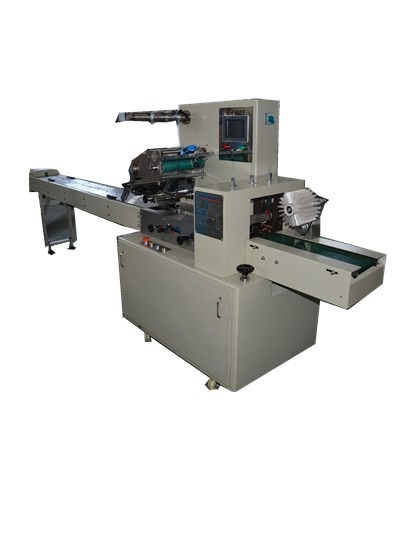

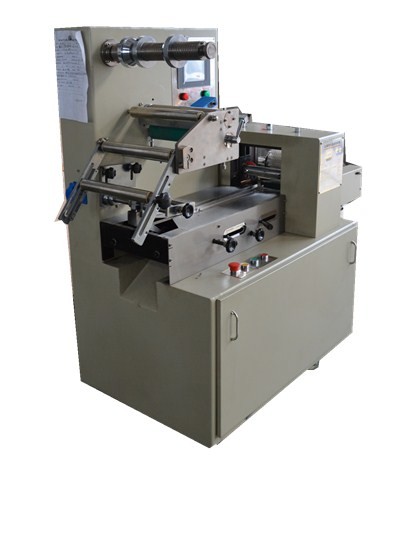

Stainless steel fuselage Snack Packaging Machine has good sealing performance
Pricial capability and structural features:
1. High sensor photoelectric color charttracking, make the cutting position more correctly.
2. Dependant temperature PID controlling suitable for various materials of packaging membrane.
Self-checking function, troubles can be read easily.
3. mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.
4. Guide pulley material quality, wear-resistant. Blade hardness suitable, cut neat, long blade life
5. Using optical tracking technology, sealing and cutting position is accurate, cutting point tracking progress of up to ± 2mm. Digital input, the computer program to automatically adjust to set the length, without manual, reliable and stable bag length.
6. Change the bag length, the rest of the device only need to do a small amount of adjustment or no adjustment, adjust the scale of the site to help accurate positioning
7. Foil roll replacement easy and labor-saving, film rolls can be customized according to the width of the envelope roll
| Finished package size(mm) | Length | 70-1000mm |
| Width | 30-170mm | |
| Height | 5-80mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 900kg | |
| Overall size (length * width * height) | 4400×830×1700mm | |
