| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | chocolate wrapping machine,flow pack packaging machine |
||

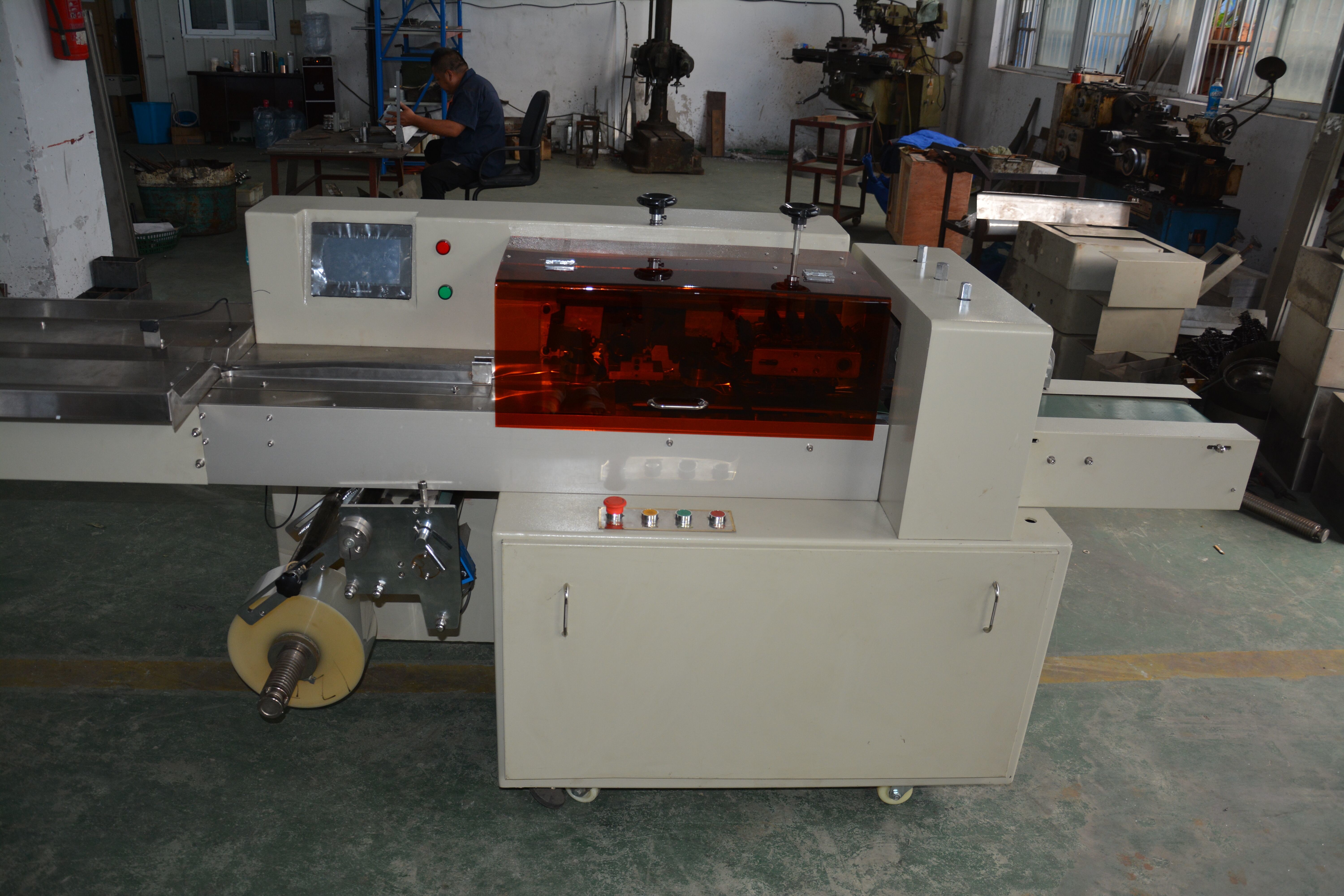

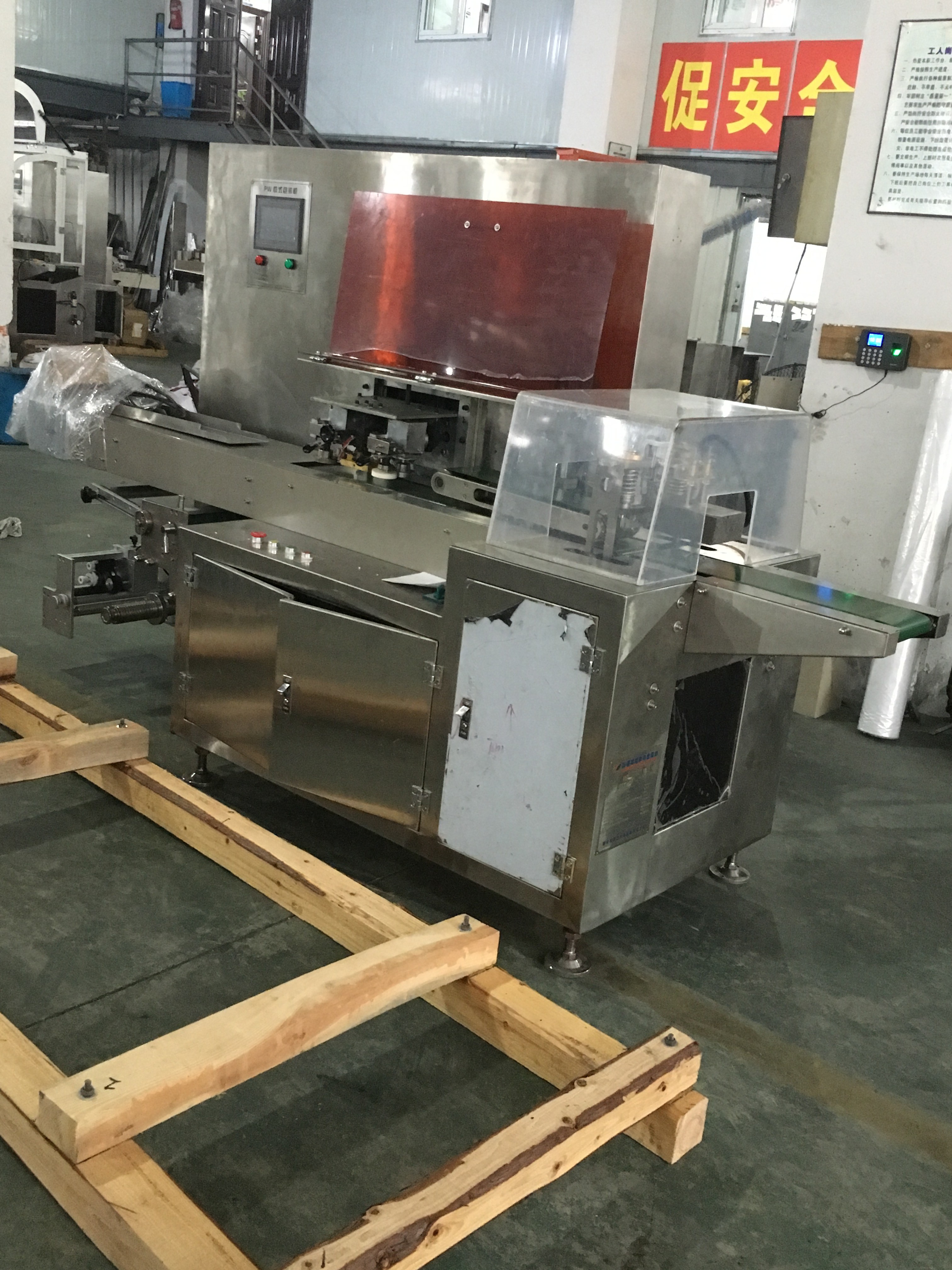

low energy consumption Stainless steel pillow type Snack Packaging Machine Special for Snow cake
Packaging machine uses color touch screen and stable and reliable high-precision dual-axis output PLC control, bagging, metering, filling, sealing, coding, cutting bag one-time completed.
It uses air circuit control and circuit control independent separation, low noise, stable performance.
Double-belt servo pull-die and dual-servo control, less resistance, bag molding is good, more beautiful, high-precision positioning, accurate size.
Automatic packaging machine with automatic measurement, filling, bagging, sealing, cutting off, conveying, printing production batch number, increase the easy incision, no material warning, mixing and other functions.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
feature:
1. Frequency control with fast dynamic follow-up performance and high speed accuracy, automatically correct the frequency, in order to achieve the load changes when the motor speed stability. The length of the bag that is set to cut, no need to adjust the empty walk. When a fault occurs, the device alarms and the display shows the corresponding message and the device stops operating.
2. Advanced heating methods, energy-efficient. Intelligent temperature controller, controlled by an independent PID, thermostat adjustable, heating speed, to ensure that the temperature control error <± 1 ℃, suitable for a variety of packaging materials. When the temperature exceeds the setting range, the device alarms.
3. Double synchronous belt pull film, controlled by the cylinder tension, automatic correction, automatic alarm protection, minimize loss
4. Sliding sealing mechanism, can be adjusted sealing (including horizontal and vertical seal) center height and width, fixed and reliable, to ensure long-term operation without displacement. Horizontal, vertical sealing speed continuously adjustable. Sealing width can be produced according to user needs.
5. Transmission smooth, smooth and uniform film, membrane transmission with real-time correction.
