Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-300mm | Machine: | 220V |
Weight: | 800kg | Overall Size: | 3780×640×1560mm |
High Light: | horizontal wrapping machine,horizontal pillow packing machine |

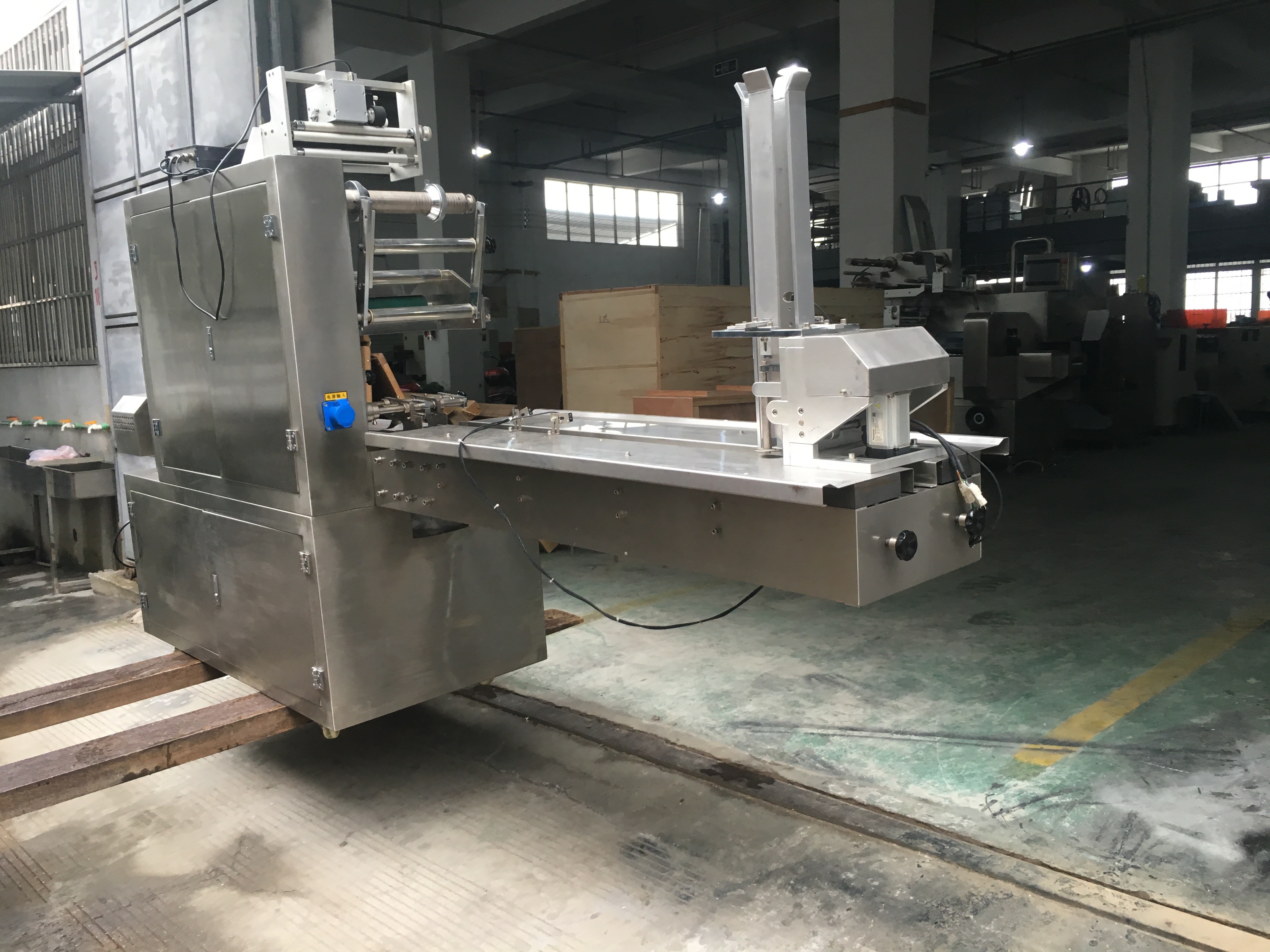

Stainless steel fuselage Horizontal Packing Machine with Patent certification of new technology
Pricial capability and structural features:
1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting;
2. AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise;
3. photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material;
4. the vertical sealing heating under low temperature sealing. Reduce down hot film;modulation bag machine, compact structure, convenient replacement of varieties;
5. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.
6. low noise. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
7. The structure design of equipment use, operation and maintenance must conform to the principle of ergonomics, and the design and manufacture meet the safety design specification of the related equipment.
8. The heating parts have the function of exceeding the limit alarm. The electronic connection is reliably equipped with overload, short circuit, overheating and leakage protection.
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
Warranty:
1. We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
2. We warranty against any defects in design and workmanship for 1 year from the shipment date.
3. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
