Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 220V/380V | Weight: | 800kg |
Overall Size: | 3780×640×1560mm | ||
High Light: | horizontal wrapping machine,pillow type packing machine |

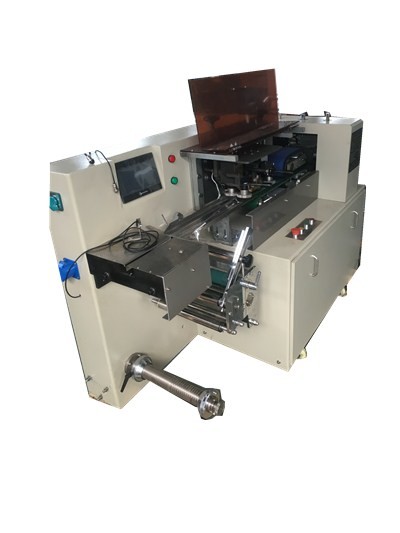

HIGH SPEED pillow Horizontal packing speed:5 - 230 bags / min Stationery packing machine
for Disposable mask
Pricial capability and structural features:
1. Compact strure, stable function and simple operation
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
4. Self-checking function, troubles can be read easily.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
7. This machine dismantling maintenance tool contains a set of toolbox, and the material of the toolbox is in accordance with the requirements of the clean area.
8. Responsible for training basic knowledge of structure, principle, performance, operation, maintenance, troubleshooting and so on for technicians, operators and maintenance personnel, so that our personnel must be proficient and have two sides' recognition.
9. The warranty period of this machine is at least 1 years, and the effective day is the completion date of the installation of the test car.
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
