Packging Film Widh: | 5-230Bags/min | Overall Size: | 3780×640×1550mm |
---|---|---|---|
Material: | Stainless Steel | Sealing Strength: | >15 N/mm² |
Machine Model: | PW-300A | Delivery: | Twenty Days |
High Light: | horizontal wrapping machine,horizontal pillow packing machine |

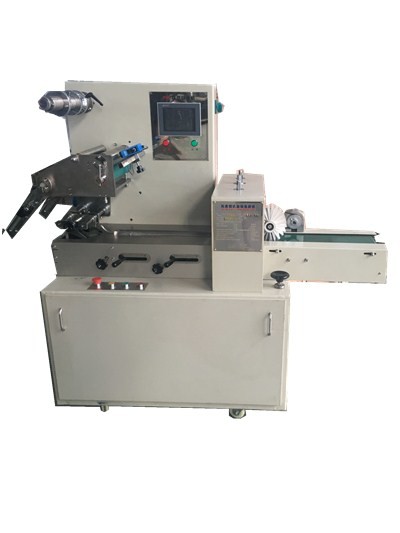

Horizontal Stainless steel packing machine speed 5 - 230 bags / min for small food like Pineapple cake
Pricial capability and structural features:
1. When the equipment is running, the noise is less than 80dB.
2. There are notable warning signs in danger prone areas, such as heating components, scalding warning, punching and shearing warning, heat sealing and anti extrusion warning, and emergency stop switches near the forming units. The transmission mechanism automatically stops when the safety cover is opened.
3. The structure design of equipment use, operation and maintenance must conform to the principle of ergonomics, and the design and manufacture meet the safety design specification of the related equipment.
4. Dependant temperature PID controlling suitable for various materials of packaging membrane. Position stop function, noadhesive and no waste of membrane.
5. Clean rotation system, more reliable operation and more convenient maintenance.
6. Self-checking function, troubles can be read easily. High sensor photoelectric color charttracking, make the cutting position more correctly.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
