Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | ||
High Light: | horizontal wrapping machine,horizontal pillow packing machine |

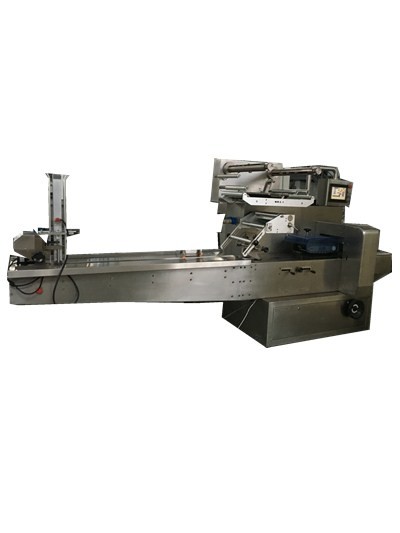

horizontal high speed pillow packing machine stainless steel special for Medical equipment
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1, three servo control, bag length is set is cut, don't need to adjust empty, one pace reachs the designated position, convenient province membrane.
2, The printer uses the ink wheel to code the code with three typesetting particles (including the production date, the validity period and the production batch number).
3. The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.
4. The design of the connection structure between the equipment and the ground of the related plant should ensure that the facilities are not destroyed, the dead angle is easy to be cleaned and the maintenance is easy.
5, servo blanking function, blanking version number directly regulating in the touch screen.and cartoning machine aluminum-plastic blister packaging machine easily.
6, fault self-diagnosis function, fault shows at a glance.
7, side sealing Angle device, pocket is more beautiful, upgrade the product.
8, positioning stop function, non-stick knives, do not waste envelope.
9, drive system is concise, more reliable, more convenient maintenance.
10, all control by the software implementation, convenient function adjustment and technology upgrade, never backward.
correlating parameter
The machine type
|
GPW-350 |
Film Width
|
Max.350mm |
Bag length
|
100~200mm |
Product Height
|
10~50mm |
film diameter
|
Max.400mm |
Packing speed
|
5~150package/minute
|
power
|
220V50/60Hz3.2Kw |
Machine size
|
(L)4200×(W)960×(H)1520mm |
machine weight
|
About 1160Kg |
Air Pressure
|
≥0.2 MPa |
