Packaging Speed: | 5-230Bags/min | Power Specification: | 220V |
---|---|---|---|
Weight: | 500kg | Overall Size: | 3780-830-1700mm |
Color: | Milky White | ||
High Light: | horizontal wrapping machine,horizontal pillow packing machine |

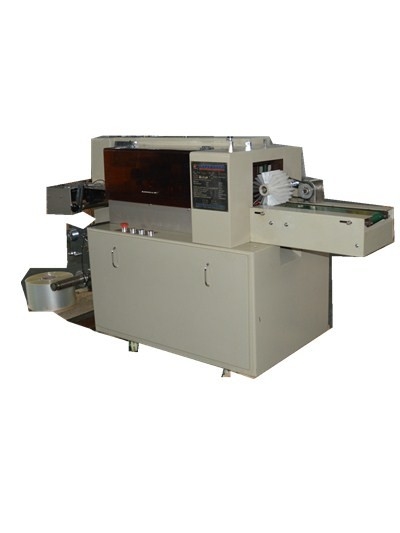

Automatic food packing PW - 300 E stainless steel packing size long 30 - 500 mm Laundry soap special packaging machine
The main performance and structure features:
1. Bring their own air defense function and save material.Three precision servo control, bag length is set is cut, don't need to adjust empty, one pace reach the designated position, time-saving province membrane.
2. Servo blanking operation, convenient and fast, just in the screen operation.
3. with high-end appliances, touch human-machine interface, convenient
parameter setting.
4. fault self-diagnosis function, fault shows at a glance.positioning stop function, non-stick knives, at no cost.the rotation system is simple, more reliable, more convenient maintenance.
5. glances standard high Sensibility degrees photoelectric tracking, more accurate in the position of sealing and cutting.
6. temperature independent PID control, better suited to a variety of material
coated.
7. all control by the software implementation, convenient function adjustment and technology upgrade, never backward.
scope of application:
Applicable to irregular non-standard shaped objects packaging In various industries.
Technical parameter:
Finished package size (mm) |
Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | >15N/m㎡ | |
Packaging speed bag/minute | 5-230Bags/min | |
Packaging film width(mm) | 80-300mm | |
Power specification | 220V50/60Hz2.4KVA | |
Machine weight (kilogram) | 400kg | |
Overall size (lengthXwidthXheight) | 3780×640×1560mm |
