Material: | 304 Stainless Steel | Machine Model: | PW-300E |
---|---|---|---|
Delivery: | Twenty Days | Weight: | 450kg |
Encasement: | Wooden Case | Overall Size: | 3780X830X1560mm |
High Light: | horizontal pillow packing machine,pillow type packing machine |

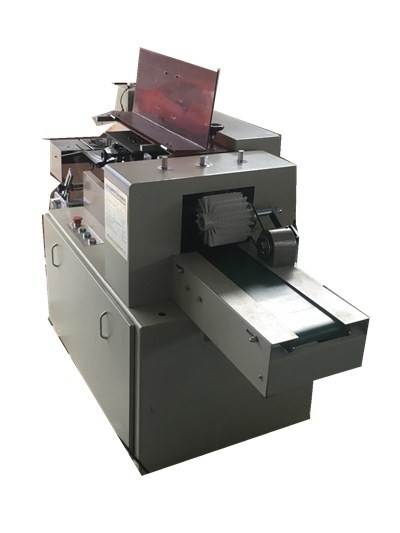

Horizontal Stainless steel compact structure packing machine for Freshness protection package
Pricial capability and structural features:
1. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
2. Control cabinet, control box, control button has good seal, can effectively prevent dust into it.
3. he pneumatic original is a famous brand product. The main module of PLC is Japanese Panasonic and Schneider famous brand products.
4. Dependant temperature PID controlling suitable for various materials of packaging membrane.
5. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film.
6. Position stop function, noadhesive and no waste of membrane.High sensor photoelectric color charttracking, make the cutting position more correctly.
7. The design of the connection structure between the equipment and the ground of the related plant should ensure that the facilities are not destroyed, the dead angle is easy to be cleaned and the maintenance is easy.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
