| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | bakery packaging machine,cookie packaging machine |
||

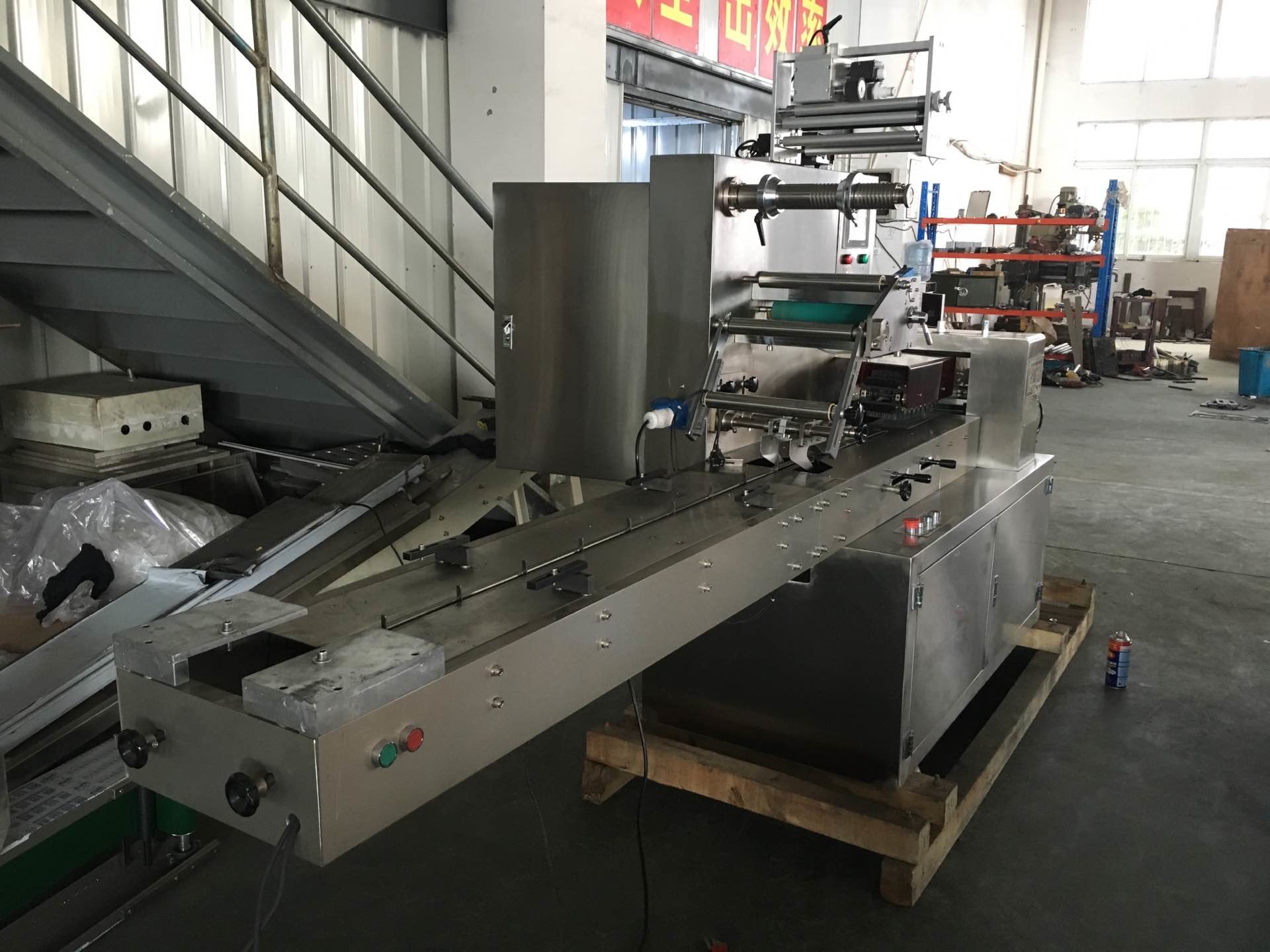

Automatic Food Packing Machine speed 5 - 230 Bags / min with imported electrical appliances
Pricial capability and structural features:
1. Compact strure, stable function and simple operation.Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film.
2. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
3. packaging machine for packaging when the force is generally small, so the motor function is small, generally less than 1KW; packaging machine generally adopts stepless speed change device, so as to adjust the packing speed, adjusting packing machine production capacity; can improve the production efficiency, but also ensure the quality of product packaging.
4. simple operation, complete accessories, automatic continuous feeding mechanism, greatly improve the packaging efficiency and reduce labor costs.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
Warranty:
1. We warranty against any defects in design and workmanship for 1 year from the shipment date.
2. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3. We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
