Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-300mm | Machine: | 220V |
Weight: | 800kg | Overall Size: | 3780×640×1560mm |
High Light: | bakery packaging machine,food product packaging machine |

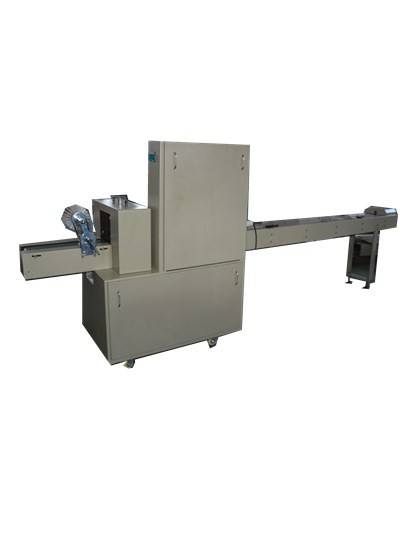

Effectively Reduce labor costs Automatic Food Packing Machine with stable function and simple operation
Pricial capability and structural features:
1, three servo control, bag length is set is cut, don't need to adjust empty, one pace reachs the designated position, convenient province membrane.
2, no empty bag function.Automatically in downtime, the film cutter to stop, pushing automatically.No empty package, do not waste envelope without artificial feeding.
3, built-in temperature control module, temperature independent PID control, temperature control precision, better suited to a variety of packaging materials.
4. servo blanking function, blanking version number directly regulating in the touch screen.and cartoning machine aluminum-plastic blister packaging machine easily.
5, all control by the software implementation, convenient function adjustment and technology upgrade, never backward.
6, fault self-diagnosis function, fault shows at a glance.
7, side sealing Angle device, pocket is more beautiful, upgrade the product.
8, positioning stop function, non-stick knives, do not waste envelope.
9, drive system is concise, more reliable, more convenient maintenance.
Warranty:
We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.We warranty against any defects in design and workmanship for 1 year from the shipment date.
Components List
Item | Model & spec. | Maker | Qty |
Touch screen | PW-5610-SB | Hitech | 1 |
Frequency convector | VF—0.42KW | Panasonnic | 1 |
Frequency convector | VF—0.75KW | Panasonnic | 1 |
PLC | FP-X C40T | Panasonnic | 1 |
Power switch | S—35—24 | Mean well | 1 |
E-stop button | XB2—BS542C | Schneider | 1 |
Red Green indicator light | AD16-220S | Shanghai Anpute | 2 |
Yellow Red Green indicator light | XB2-A-1C-2C-0C | Schneider | 3 |
Temperature module | PA—TC4 | JP | 1 |
Solid state relay | SSR MGR-104825 | Mager | 5 |
Photoelectric switch | GDJ—211 | Dongtou Juangong | 1 |
Air switch | DZ-47-60/C15 | China chint | 3 |
DZ-47-60/C25 | China chint | 1 | |
Gear Motor | LM-22 | Zhejiang Zhongli | 1 |
Feeding motor | JB/T8680-2008 | Shanghai Ruiyu | 1 |
Encoder | B-ZSP4006GC 5-24VDC | Wuxi Ruipu | 2 |
The sealing electromagnet | MPB1-2.5YC/220VD | Wenzhou Xinhaogongkong | 1 |
Conveyor | 460*120*2 | Xiamen Aolide | 2 |
J type | K type | Shanghai Yatai | 3 |
Main switch | 20A-4KW | Changjiang electric | 1 |
White relay | JQX-13F(D) | China chint | 3 |
The total power socket | TYPE/ST-313 | SET | 1 |
synchronous belt | 5M670 B25 | Xiamen Aolide | 1 |
