Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-300mm | Machine: | 220V |
Weight: | 800kg | Overall Size: | 3780×640×1560mm |
High Light: | bakery packaging machine,food product packaging machine |

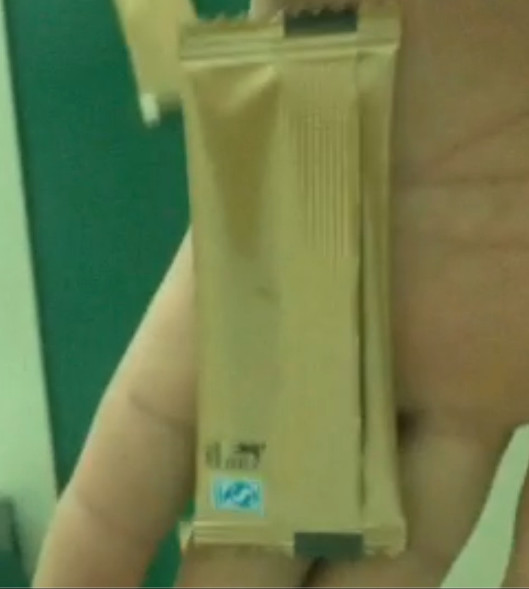

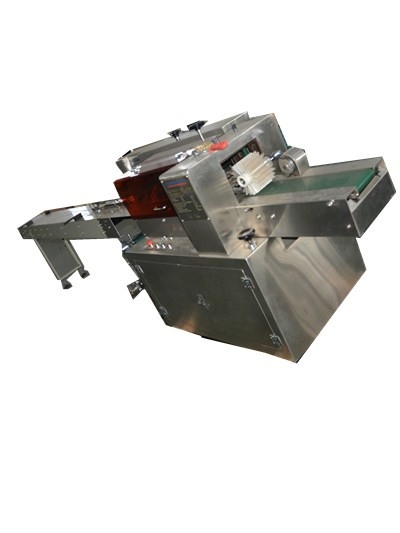

Stainless steel fuselage Automatic Food Packing Machine suitable for Betel nut
Pricial capability and structural features:
1. Compact strure, stable function and simple operation
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
4. All the controlling operates by the software, convenience for function adjustment and technical up grading.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
7. Clean rotation system, more reliable operation and more convenient maintenance.
Sketch map of simple work:
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
Components List
Item | Model & spec. | Maker | Qty |
Touch screen | PW-5610-SB | Hitech | 1 |
Frequency convector | VF—0.42KW | Panasonnic | 1 |
Frequency convector | VF—0.75KW | Panasonnic | 1 |
PLC | FP-X C40T | Panasonnic | 1 |
Power switch | S—35—24 | Mean well | 1 |
E-stop button | XB2—BS542C | Schneider | 1 |
Red Green indicator light | AD16-220S | Shanghai Anpute | 2 |
Yellow Red Green indicator light | XB2-A-1C-2C-0C | Schneider | 3 |
Temperature module | PA—TC4 | JP | 1 |
Solid state relay | SSR MGR-104825 | Mager | 5 |
Photoelectric switch | GDJ—211 | Dongtou Juangong | 1 |
Air switch | DZ-47-60/C15 | China chint | 3 |
DZ-47-60/C25 | China chint | 1 | |
Gear Motor | LM-22 | Zhejiang Zhongli | 1 |
Feeding motor | JB/T8680-2008 | Shanghai Ruiyu | 1 |
Encoder | B-ZSP4006GC 5-24VDC | Wuxi Ruipu | 2 |
The sealing electromagnet | MPB1-2.5YC/220VD | Wenzhou Xinhaogongkong | 1 |
Conveyor | 460*120*2 | Xiamen Aolide | 2 |
J type | K type | Shanghai Yatai | 3 |
Main switch | 20A-4KW | Changjiang electric | 1 |
White relay | JQX-13F(D) | China chint | 3 |
The total power socket | TYPE/ST-313 | SET | 1 |
synchronous belt | 5M670 B25 | Xiamen Aolide | 1 |
