Material: | 304 Stainless Steel | Machine Model: | PW-300E |
---|---|---|---|
Delivery: | Twenty Days | Encasement: | Wooden Case |
Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
High Light: | hardware counting packing machine,automatic screw packing machine |

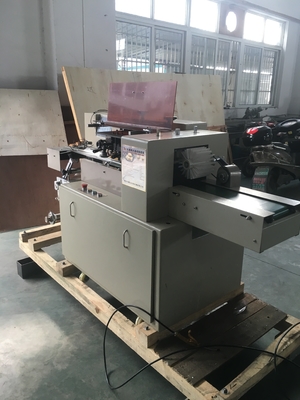

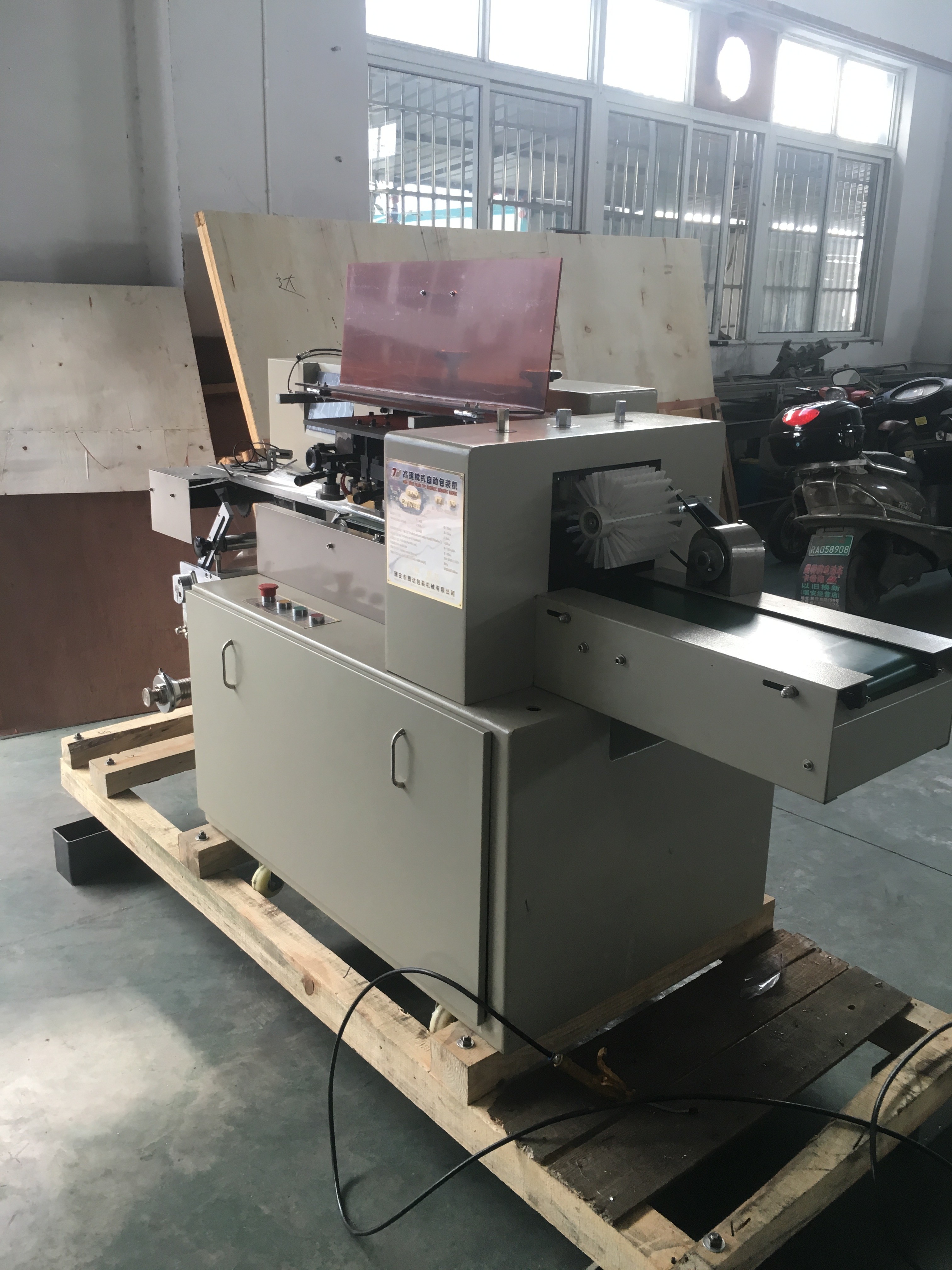

Professional pillow type Hardware Packing Machine with 14 years of production experience
Equipment capability:
1. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.
2. mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.
3. according to the positioning mark of packing material, the continuous photoelectric automatic positioning system is designed to eliminate the error and achieve the correct sealing and cutting.
4.can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
5. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.
6. pillow type automatic packaging machine structure design function requirements:crosscut knife every turn, seal and cut off 1 times; vertical sealing mechanism in the machine power off can automatically open, also can manually separate two sealed heat sealing roller wheel.
7. setting and control of sealing and cutting temperature.
8. can realize color mark tracking trademark to its function.
9. the whole operation is stable and reliable, and can adapt to various specifications of the adjustment. 10.for the traction roller and the vertical roller, their movement first maintains the material to have the suitable tensioning in the entire movement process; secondly, their movement speed should adapt with the bag appearance.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
