| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | hardware counting packing machine,horizontal flow wrap machine |
||

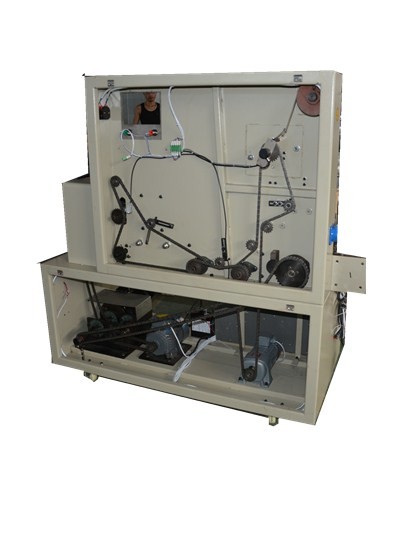

low reject rate Hardware Packing Machine with Bounce of cutting material
Safety precautions
(1) Before not understanding the correct working method of the machine and security regulations clearly. Forbid starting-up the machine.
(2) Personnel who have not been trained the authorized can’t use this machine.
(3) Before use our machine,, firstly read manual carefully and understand all contents and instructions
(4) The machine could be operate after confirmation that they have been finished installation and essentially adjusted.
(5) Confirm that don’t put any tools or implements on all mesa of the machine before starting-up machine.
(6) Don’t touch the internal and electrical facilities of machine before shut down.
(7) Manipulator can’t leave the machine working scope when the machine is working.
(8) Forbid touching heating sealing wheel,sealing mould and parts which are revolving.
(9) Must be finished by professional personnel while checking and maintain circuit control.
(10) Don’t repack the machine want only, install any device, cutter or peripheral equipment that our company approved on the machine without permission of our company. So as to avoid the danger.
(11) This manual content has any unidentified parts of run into some problem that stated and can’t be solved in accordance with this manual, please contact our company or the authorized dealer, don’t settle them by yourself.
(12) Don’t use the machine on the condition our or the appointed environment.
Warranty:
1.We warranty against any defects in design and workmanship for 1 year from the shipment date.
2.This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Sketch map of simple work:
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
