| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | automatic screw packing machine,horizontal flow wrap machine |
||

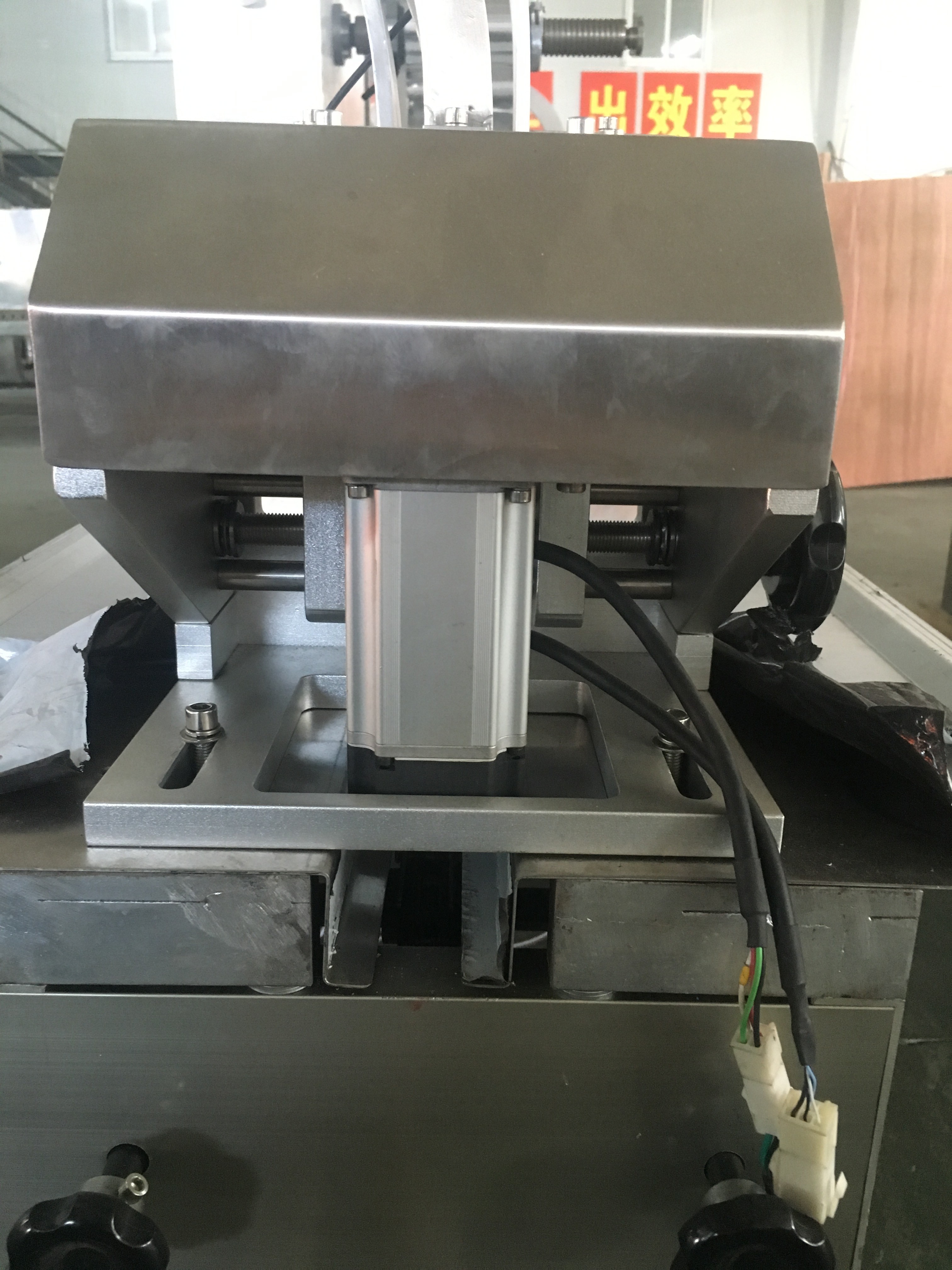

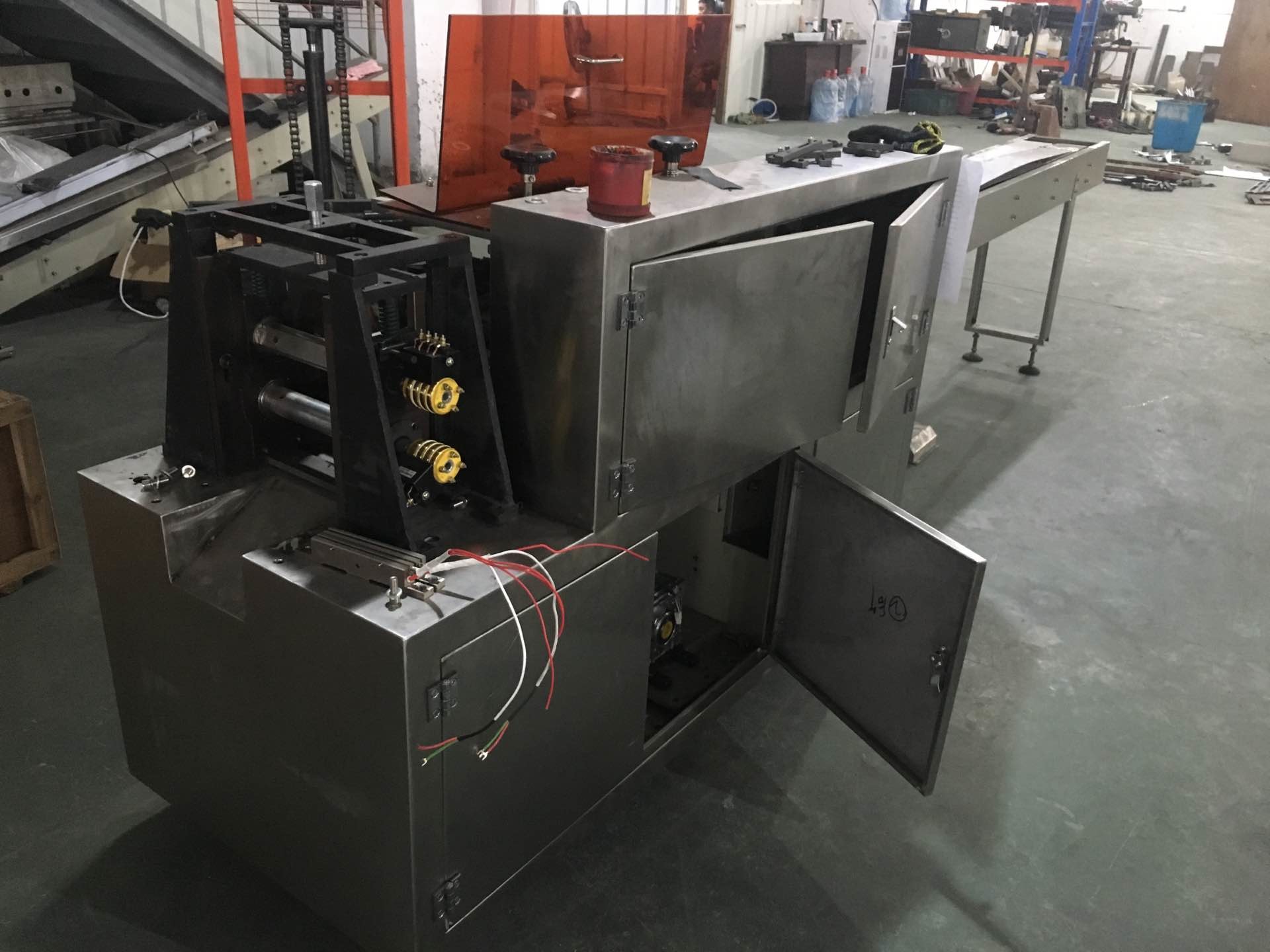

Automatic Stainless steel Hardware Packing Machine can Bounce of cutting material
Equipment capability:
1. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
2. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise; photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material.
3. according to the positioning mark of packing material, the continuous photoelectric automatic positioning system is designed to eliminate the error and achieve the correct sealing and cutting.
4. there are multiple protection devices, such as overloading, missing phase, leakage of electricity and so on, so as to ensure the safe and normal use of the equipment.
5. less fault, easy maintenance, easy to change parts and circuit board easy to replace. All control loops, sensors, lubrication points and vulnerable parts should have enough space for service and maintenance.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
After-sale service:
1. The guide booklet will be sent with machine to guide the installation process works, adjust the whole machine, production, avoid or solve the problem which the buyer will face.
2. Test run of the machine & training:
We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance .
We can dispatch technologists to buyer’s factory, guiding installation, adjustment for a period, the buyer in charge of the salary, traffic fee, boarding and lodging, communication and each day 100usd living allowances.
