| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | hardware counting packing machine,automatic screw packing machine |
||

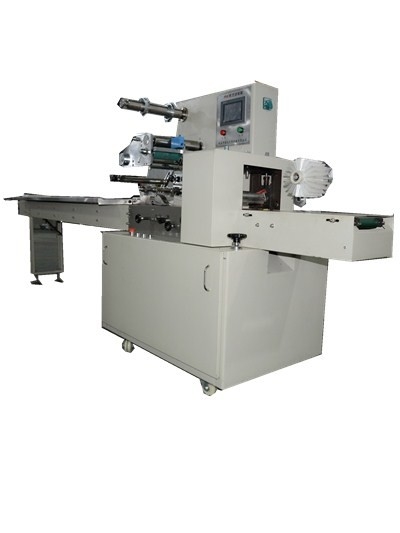

high quality services Hardware Packing Machine with starved feeding shut down
Pricial capability and structural features:
1,three servo control, bag length is set is cut, don't need to adjust empty, one pace reachs the designated position, convenient province membrane.built-in temperature control module, temperature independent PID control, temperature control precision, better suited to a variety of packaging materials.
2,no empty bag function.Automatically in downtime, the film cutter to stop, pushing automatically.No empty package, do not waste envelope without artificial feeding.side sealing Angle device, pocket is more beautiful, upgrade the product.

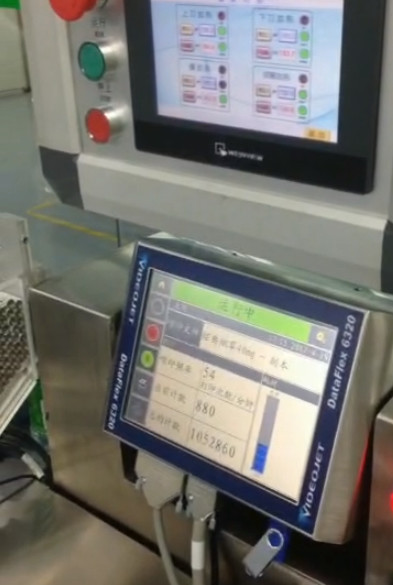

3,touch interface, convenient and quick parameter setting.fault self-diagnosis function, fault shows at a glance.
4,positioning stop function, non-stick knives, do not waste envelope.drive system is concise, more reliable, more convenient maintenance.
5,all control by the software implementation, convenient function adjustment and technology upgrade, never backward.the blanking function, don't stop, can prevent the cutting material, improving the efficiency of the machine, reduce equipment wear and tear.
6,servo blanking function, blanking version number directly regulating in the touch screen.and cartoning machine aluminum-plastic blister packaging machine easily.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
Sketch map of simple work:
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
