Material: | 304 Stainless Steel | Machine Model: | PW-300E |
---|---|---|---|
Delivery: | Twenty Days | Encasement: | Wooden Case |
Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
High Light: | hardware counting packing machine,automatic screw packing machine |

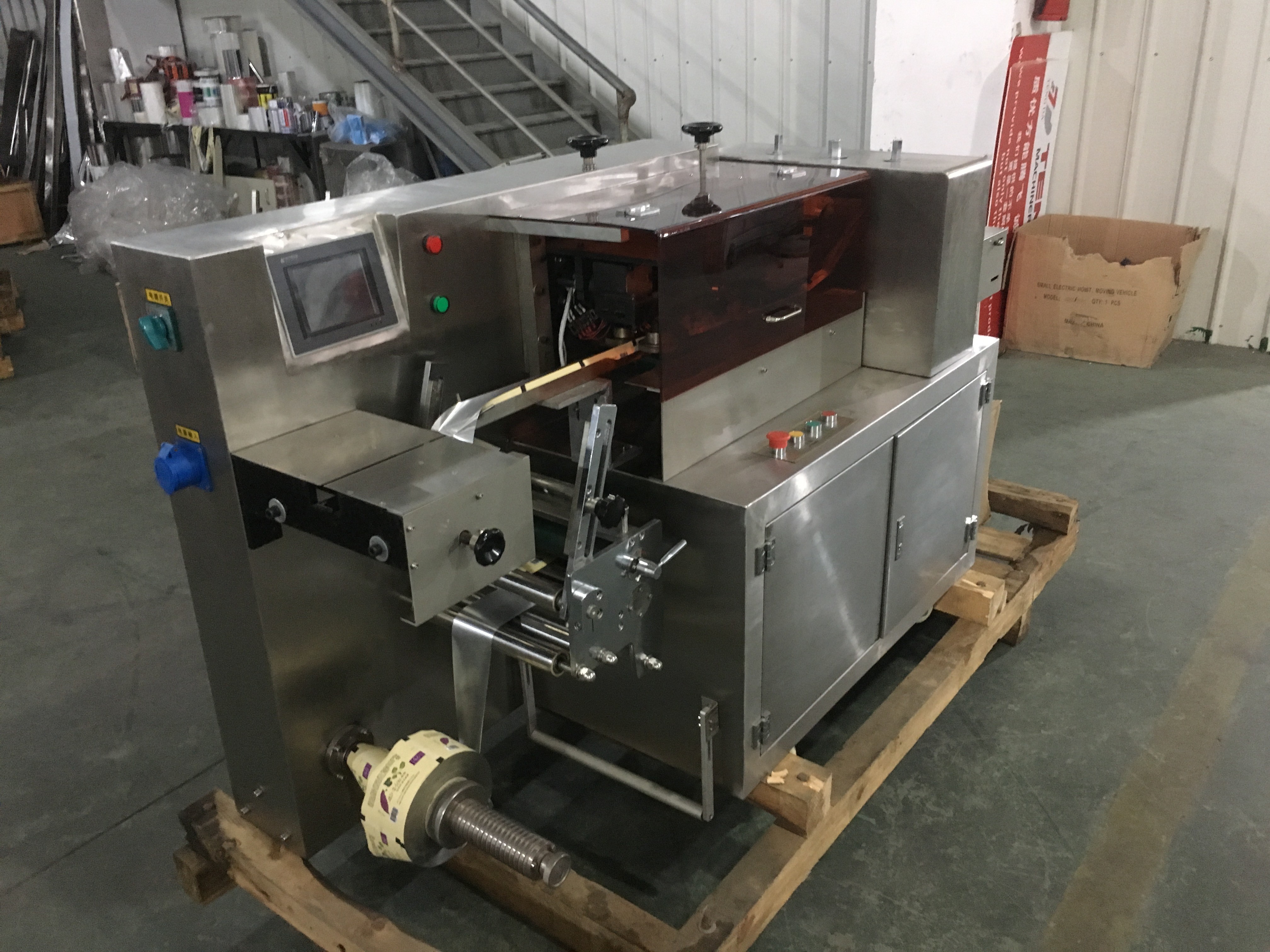

automatic feeding Stainless steel pillow type packing machine Special for hardware like Cake fork
Equipment capability:
1. packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging.
2. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
3. according to the positioning mark of packing material, the continuous photoelectric automatic positioning system is designed to eliminate the error and achieve the correct sealing and cutting.
4.mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.
5. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.
6. the tracker found the error of the packaging material in the process of production in time to find the correct compensation and correct, to avoid the waste of packaging materials. If the test can not meet the technical requirements after tracking the number of predetermined times, it can automatically stop to be checked and avoid the production of waste.
7. without stopping the machine can modify the parameters in real time (setting the length of the bag, the speed of packing, the temperature of the seal, etc.), and adjust the position. After the packing machine is shut down, the current working parameters are kept, and the next time the machine is opened, it will run directly according to the current parameters.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
