Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Film Diameter: | Max.400mm |
Machine Weight: | About 1160Kg | Machine Size: | (L)4200×(W)960×(H)1520mm |
High Light: | automatic wrapping machine,flow wrap packaging machine |

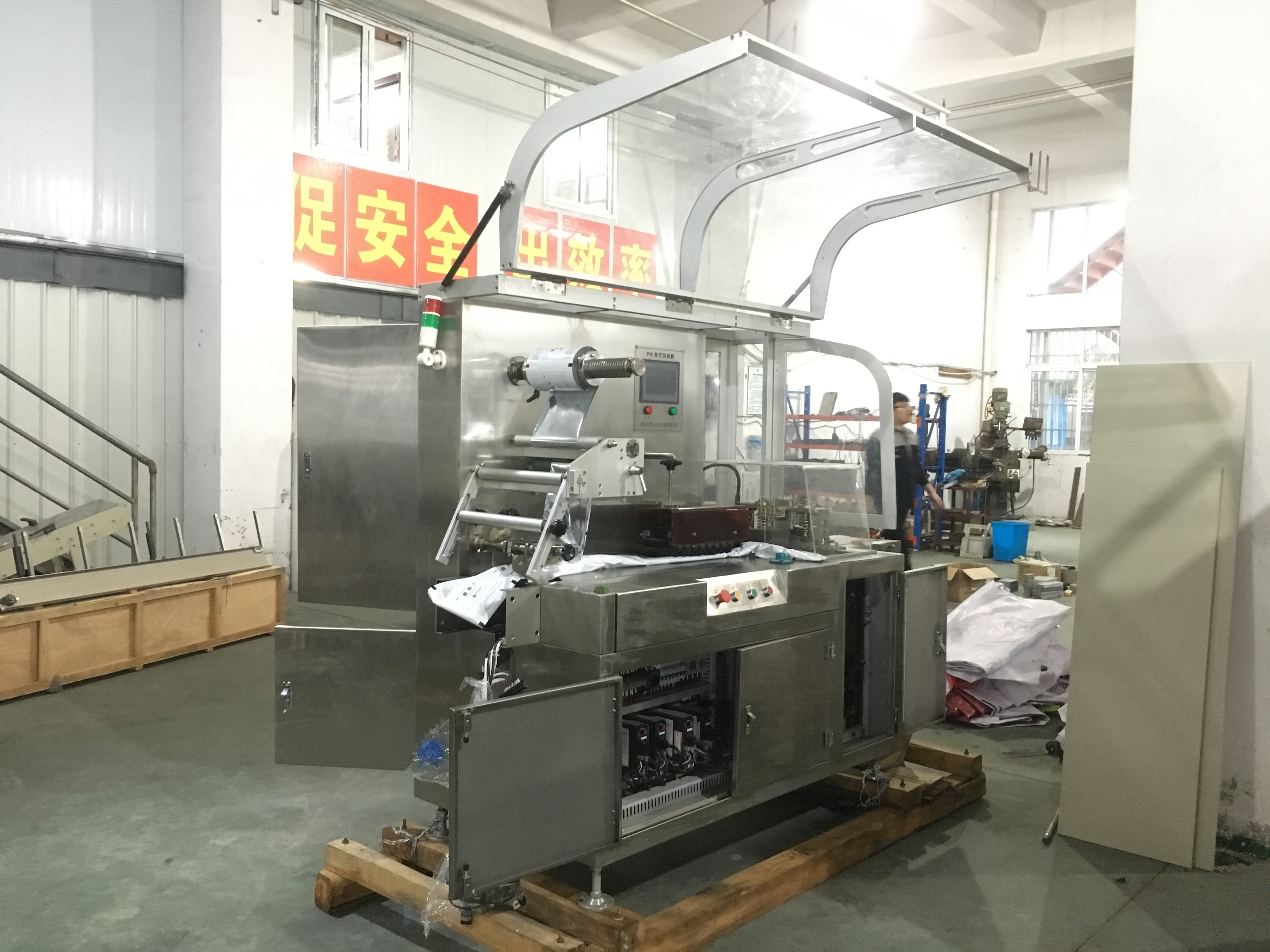

stainless steel Multi Function Reciprocating pillow type packing machine special for medical equipment
scope of application
Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1,three servo control, bag length is set is cut, don't need to adjust empty, one pace reachs the designated position, convenient province membrane.
2,no empty bag function.Automatically in downtime, the film cutter to stop, pushing automatically.No empty package, do not waste envelope without artificial feeding.
3,built-in temperature control module, temperature independent PID control, temperature control precision, better suited to a variety of packaging materials.
4. The temperature can be controlled by the temperature module and the temperature fluctuation is within + 3 C.
5. The printer uses the ink wheel to code the code with three typesetting particles (including the production date, the validity period and the production batch number).
6. The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.

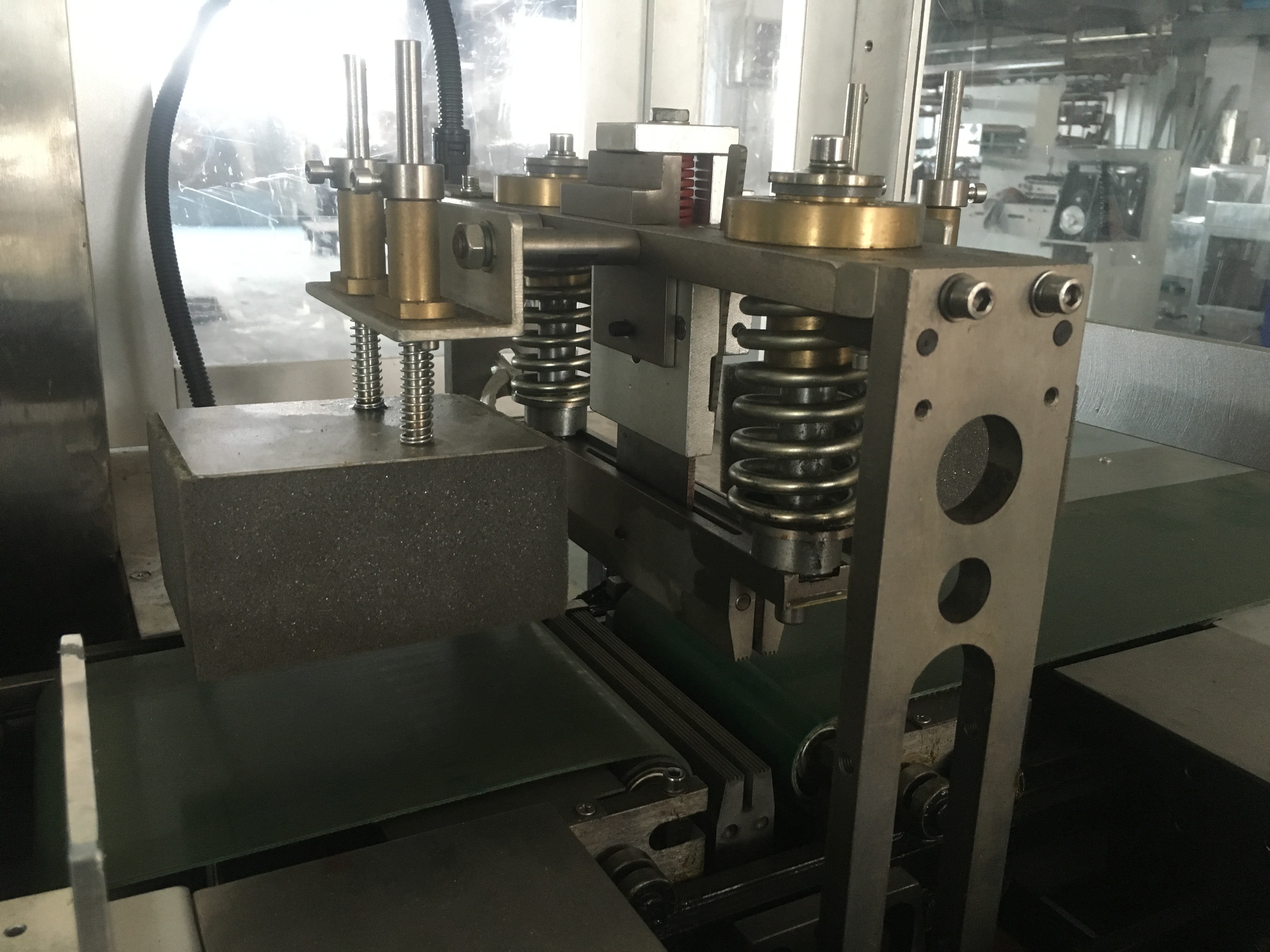

7.Transmission area sealing device: ensure the sealing effect between the transmission area and the studio and clean room, to ensure that the studio has no obvious dust pollution driving area, oil transmission area does not pollute the clean room where the studio, which is to avoid the transmission area and area of cross infection.
Warranty:
1.We warranty against any defects in design and workmanship for 1 year from the shipment date.
2.This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
Configuration list
name | Model and specification | manufacturer | quantity |
Appearance body | All stainless steel body 304 # | The machine shell | |
Transmission of the tail | Fujian aluminium profile | The whole machine delivery | |
Switching power supply | S—35—24 | Taiwan MeanWell | 1 |
emergency stop switch | XB2—BS542C | Schneider | 1 |
Red green indicator | AD16-220S | Shanghai anapt | 2 |
ellow and red green button | XB2-A-1C-2C-0C | Schneider | 3 |
Solid state relay | SSR series MGR-104825 | MEGIR | 3 |
Photoelectric switch | CX—424 | Japan panasonic | 3 |
Air switch | DZ-47-60/C15 | China chint | 3 |
DZ-47-60/C25 | China chint | 1 | |
Feeding servo motor | 0.4KW | Japan panasonic | 1 |
encoder | B-ZSP4006GC 5-24VDC | Wuxi Ruipu | 2 |
Medium sealed electromagnet | MPB1-2.5YC/220VD | Wenzhou xinhao industrial control | 1 |

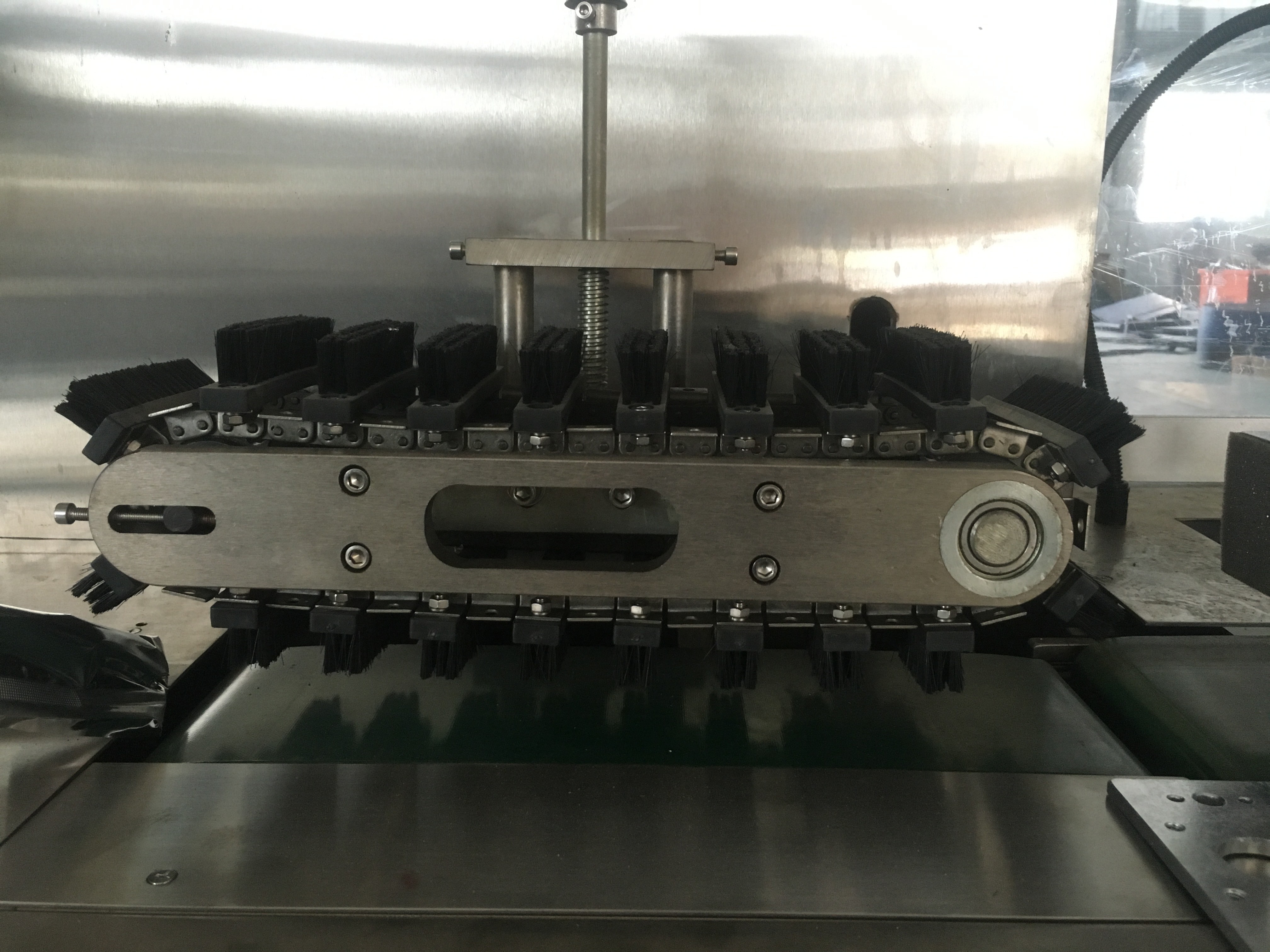

Conveyor belt | 460*120*2 | Xiamen Olide | 2 |
Code printer | MS-200I | WhenZhou Shenglong | 1 |
Electric coupling | K type | Shanghai Yatai | 3 |
Main switch | 20A-4KW | Changjiang electric | 1 |
White relay | JQX-13F(D) | China chint | 3 |
feed servo driver | MBDJT2210/220VDC | Japan panasonic | 1 |
Proximity switch | SC3015-NL | ROKO | 1 |
SC3015-N | ROKO | 1 | |
Total power outlet | TYPE/ST-313 | SET | 1 |
Synchronous belt | 5M670 B25 | Japan panasonic | 1 |
Touch screen | PW-5610-SB | HITECH | 1 |
Motion controller | ASD-M-0721-R | Delta | 1 |
Servo motor | ECMA-C10807RS(750W) | Delta | 2 |
Servo motor | ECMA-C106047RS | Delta | 1 |
Servo driver | ASD-A2-0421-F | Delta | 1 |
Programmable module | ASD-DMC-RM32PT | Delta | 1 |
Temperature module | DTE-1000 | Delta | 1 |
