| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | GPW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | pastry packaging machine,flow wrap packaging machine |
||

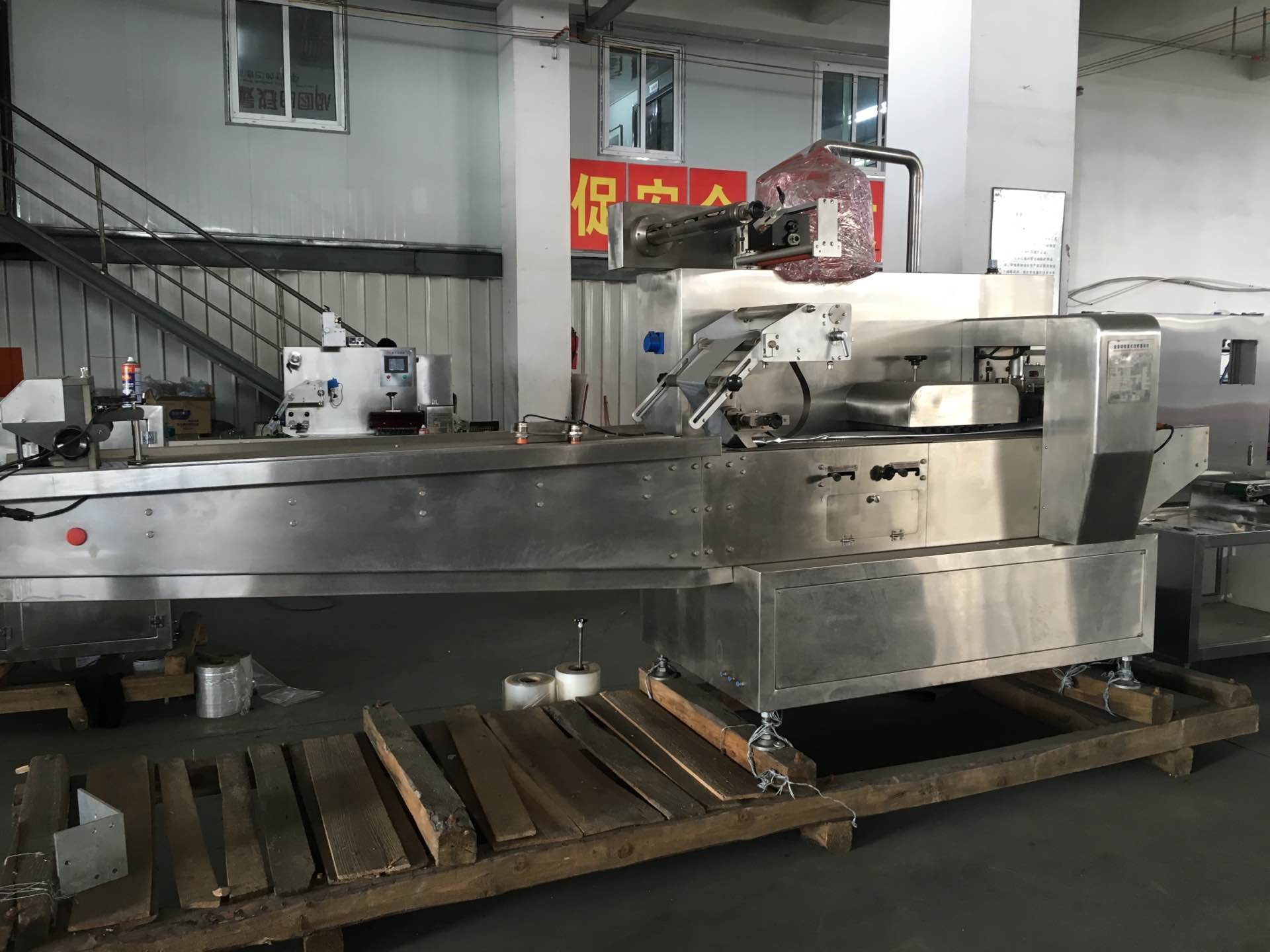

mature technology Multi Function Packing Machine with14 years of production experience
The main performance and structure characteristics
1. Reciprocating knife frame structure, affected by the packaging material.4 servo control, the bag length is set or cut, no need to adjust the air, one step is in place, save time the film.
2. Adopt Taiwan and Japan imported electric appliances, touch machine interface, parameter setting is convenient and fast. The fault self-diagnosis function, the fault display is clear.
3.High sensitivity photoelectric eye color tracking, making the sealing position more accurate.Temperature independent PID control, better suitable for various materials coating.
4.Locate the stop function, not stick to the knife, no film. The rotation system is simple, the work is more reliable, and the maintenance is more convenient.
5. All controls are implemented by software, convenient function adjustment and technology upgrade, never lag behind.Using servo feeding, the operation is convenient and fast, only on the screen operation.
6.The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.
7. The design of the connection structure between the equipment and the ground of the related plant should ensure that the facilities are not destroyed, the dead angle is easy to be cleaned and the maintenance is easy.
8. Control cabinet, control box, control button has good seal, can effectively prevent dust into it.
Scope of application:
It is specially designed for the packaging of the aluminum foam cover plate and other similar materials.
Sketch map of simple work:
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
Maintain and Keep
1.Clean and maintain per shift
(1).Must shut down power supply before cleaning and wiping machine. In order to grarantee that persons and machine are safe.
(2).Wipe workbench and surface of the machine by wet duster.
(3).Use constingent air to swept products chipping in feeding dcvice and terminal sealing place away.
(4).Use steel brush which are wipe with lube swept film chipping on terminal sealing knife.
2.Inspection and maintain per month.
(1).Giving oil to the gear & the heel zip in the sentem according to the principle of wiping. Don’t give oil to the sending stripe and step stripe.
(2).Give oil to peeite sealing gear.
(3).To checl whether the zip and stripe is tight or loosem in the sending part, regular when necessary.
(4).To check whether the screw and nut is loosen or tight when necessary.
(5).To check the electric brush, wipc it when necessary.
3.Maintain & Keep per half-year.
(1).To check sending strip & conveying belt, change it when broken, please replace when necessary.
(2).To check the easy-damaged mechanism, replace in time.
(3).To check whether the conveying parts is bad, or replace it.
(4).To check the electric tie-in, clean the dust by suing the compress air cleaner.
