Material: | Stainless Steel | Color: | Silver |
---|---|---|---|
Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
High Light: | automatic wrapping machine,pastry packaging machine |

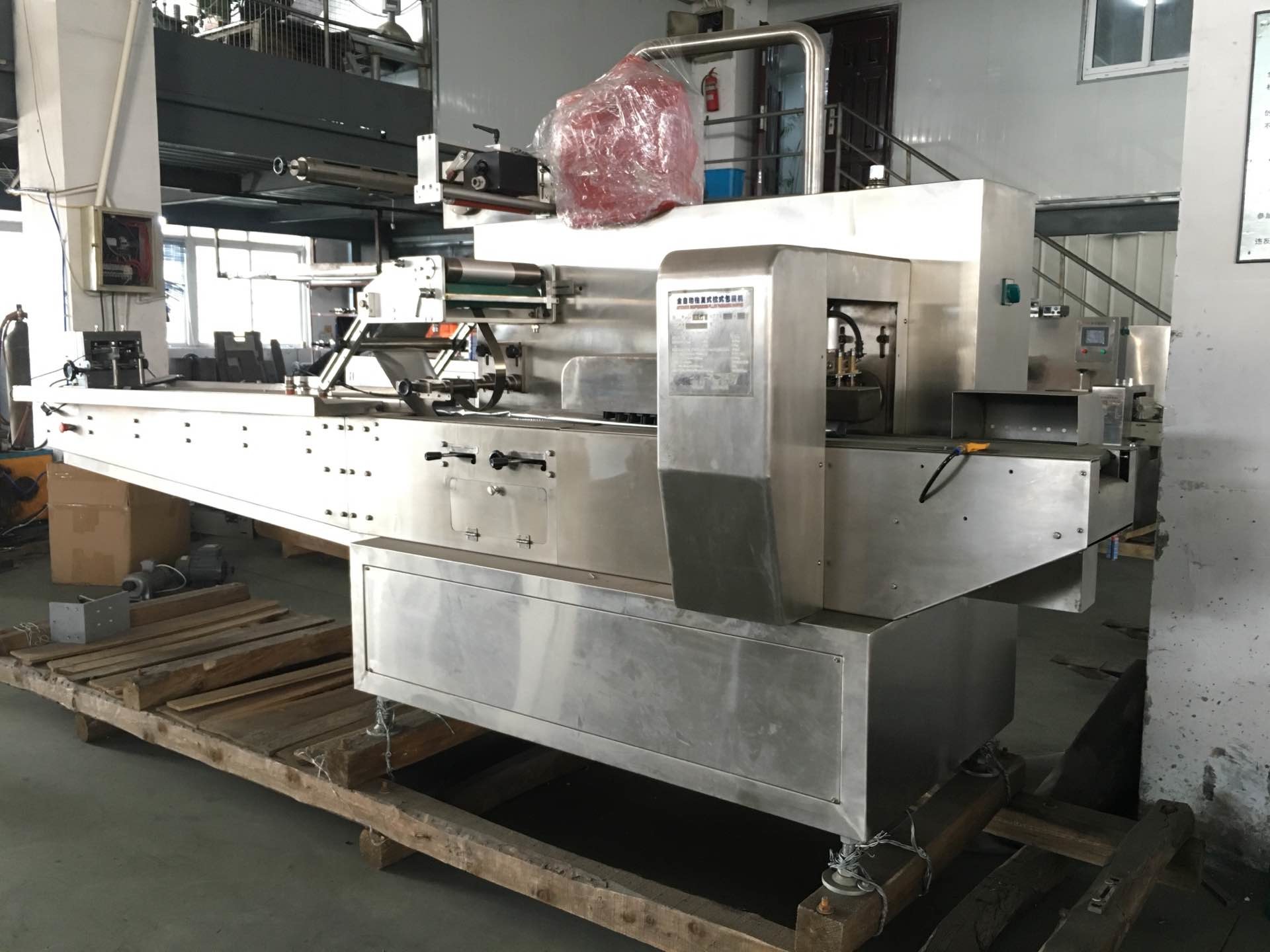

Reciprocating type Multi Function Packing Machine with Stainless steel fuselage has good sealing performance
The main performance and structure characteristics
1. The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise;
2. photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film;
3. modulation bag machine, compact structure, convenient replacement of varieties; low noise.
4. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
5. in the packaging machine can meet the packaging requirements to ensure the packaging film has the advantages of convenient adjustment, simple structure, stable operation, reliable work, easy maintenance, high efficiency, low cost and convenient operation is based on the characteristics of the packaging machine, and reduces the labor intensity of workers, improve labor productivity; strong applicability. Have a good economy.
7. using photoelectric tracking technology, the sealing and cutting position is accurate, and the cutting point tracking progress can be up to 2mm. Digital input, computer program to automatically adjust to the set length, without manual, the length of the bag is reliable and stable.
8. when changing the length of the bag, the other parts of the equipment need only a little adjustment or no adjustment, and the adjustment part has the scale to help the accurate positioning.
9. film roll replacement is convenient and labor-saving, and the film rollers can be made according to the width of the film roll.
10. there are photoelectric switches and electromagnetic proximity sensors to achieve the multi point stability tracking and detection of welding temperature and bag positioning. has the positioning stop function, no sticky knife, no waste film.
Packing List
No. | Item | Qty/Pcs |
Machine catalog | ||
1 | Operating manual | 1 |
2 | Qualification certificate | 1 |
3 | Frequency convertor manual | 1 |
4 | Color mark sensor manual | 1 |
5 | Temperature controller manual | 1 |
Additional parts | ||
1 | Pushing material piece | 2 |
2 | Middle sealing heating tube | 2 |
3 | Cross sealing heating tube | 2 |
4 | Power line | 5 |
Special tools | ||
1 | Adjustable wrench (10 ") | 1 |
2 | Inner hexagon spanner | 1 |
3 | With a screwdriver | 4 |
4 | Brass wire brush | 1 |
5 | Pointed nose pliers | 1 |
