| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TENGDA |
| Certification: | CE,ISO |
| Model Number: | G PW-350C |
| Minimum Order Quantity: | 1 set |
| Price: | ¥130000-200000/ set |
| Packaging Details: | wooden cases |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 set per month |
| Material: | Stainless Steel | Color: | Silver |
|---|---|---|---|
| Speed: | 100-150 Bags/min | Machine Weight: | About 1160Kg |
| Machine Size: | (L)4200×(W)960×(H)1520mm | Film Width: | 80-350mm |
| High Light: | pastry packaging machine,flow wrap packaging machine |
||

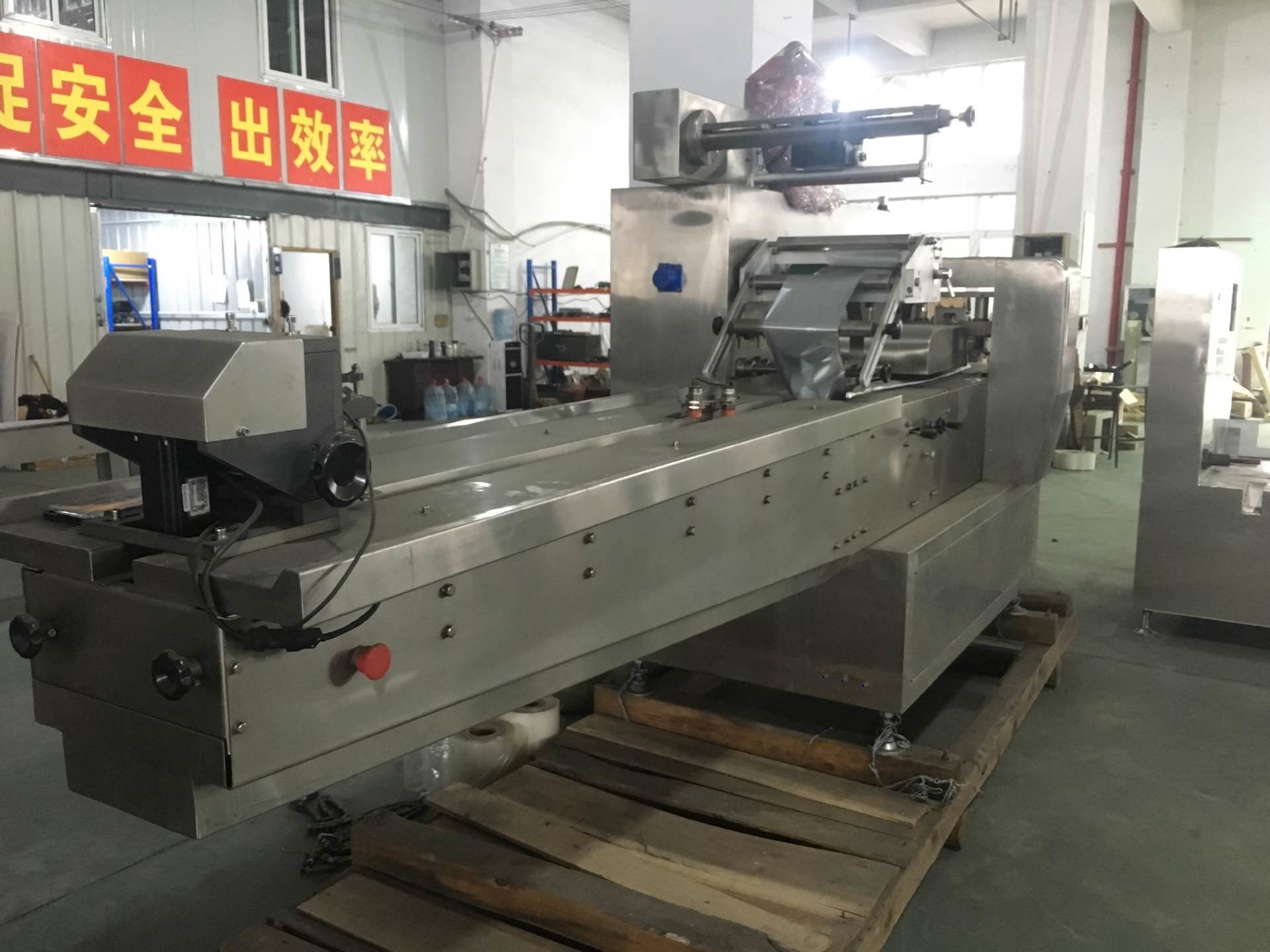

Stainless steel fuselage Reciprocating type Multi Function Packing Machine Automatic
can alarm function of fault
scope of application

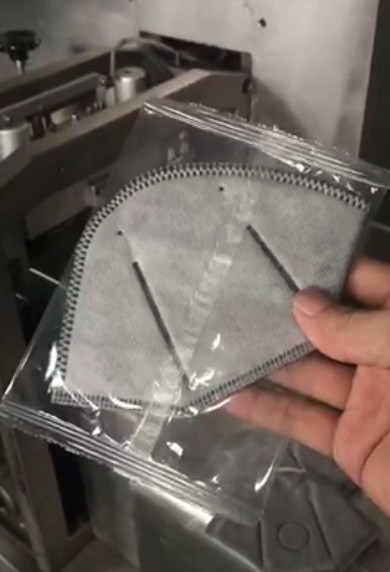

Medical equipment, pharmaceutical packaging.(medicine, cotton swabs, medical syringe, surgical masks, etc.
The main performance and structure characteristics
1.Steady running speed of 80-100 packs / minutes.
2.Yield: no less than 99.5%, based on the continuous production and packaging of the pillow type packing machine.
3.The width of the composite membrane: within 85~300mm,Thickness: 0.45~0.7mm.
4. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
5. in the packaging machine can meet the packaging requirements to ensure the packaging film has the advantages of convenient adjustment, simple structure, stable operation, reliable work, easy maintenance, high efficiency, low cost and convenient operation is based on the characteristics of the packaging machine, and reduces the labor intensity of workers, improve labor productivity; strong applicability. Have a good economy.
correlating parameter
|
The machine type
|
GPW-350 |
|
Film Width
|
Max.350mm |
|
Bag length
|
100~200mm |
|
Product Height
|
10~50mm |
|
film diameter
|
Max.400mm |
|
Packing speed
|
5~150package/minute
|
|
power
|
220V50/60Hz3.2Kw |
|
Machine size
|
(L)4200×(W)960×(H)1520mm |
|
machine weight
|
About 1160Kg |
|
Air Pressure
|
≥0.2 MPa |
Sketch map of simple work:
Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
