| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | pastry packaging machine,flow wrap packaging machine |
||

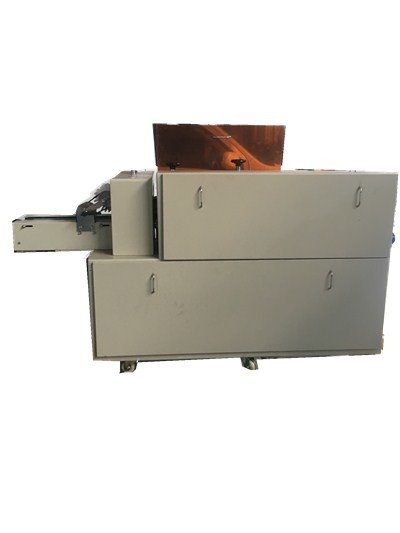

Automatic Stainless steel Multi Function packing film width:80 - 300 mm packing machine for glove
Equipment capability:
1. can be set up ten sets of formula, parameter setting is convenient.
2. all controls are implemented by software, convenient for functional adjustment and technical upgrading. The possibility of expanding production can be equipped with accessory devices such as trademark printing, photoelectric color labeling, batch printing and automatic film grafting.
3. has fault alarm and shutdown function, there is an emergency shutdown switch, all electrical and pneumatic control switches can be closed. A bit of moving switch. The whole line is a control cabinet.
4. on the machine must have the main open / key, and in the easy to operate position.
5. the electrical control system should be safe, reliable, accurate, and each electrical connector should be connected firmly and numbered.
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
the picture of packing:
