| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500mm/30-110mm/5-40mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-450mm | Machine: | 220V |
| Type: | Pillow | Colour: | Gray |
| High Light: | automatic wrapping machine,pastry packaging machine |
||

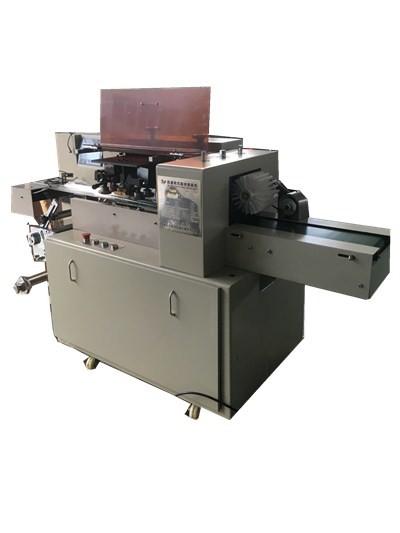

Pillow 30 - 110 mm Code function packing machine automatic for Puff
Pricial capability and structural features:
1.It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
2.High sensor photoelectric color charttracking, make the cutting position more correctly,Dependant temperature PID controlling suitable for various materials of packaging membrane.
Compact strure, stable function and simple operation,Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film.
3. The equipment is controlled by a separate deceleration motor and connected to the frequency converter to separate the feed from the seal, and can be debugged and operated by itself.
4. This machine dismantling maintenance tool contains a set of toolbox, and the material of the toolbox is in accordance with the requirements of the clean area.
5. Responsible for training basic knowledge of structure, principle, performance, operation, maintenance, troubleshooting and so on for technicians, operators and maintenance personnel, so that our personnel must be proficient and have two sides' recognition.
6. The warranty period of this machine is at least 1 years, and the effective day is the completion date of the installation of the test car.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 900kg | |
| Overall size (length * width * height) | 4400×830×1700mm | |
