Finished Package Size: | 40-500/30-110/5-40mm | Packging Film Widh: | 300mm |
---|---|---|---|
Power Specification: | 220v | Weight: | 800kg |
Overall Size: | 3780×640×1560mm | Material: | Stainless Steel |
High Light: | ard packaging machine,auto packing machine |

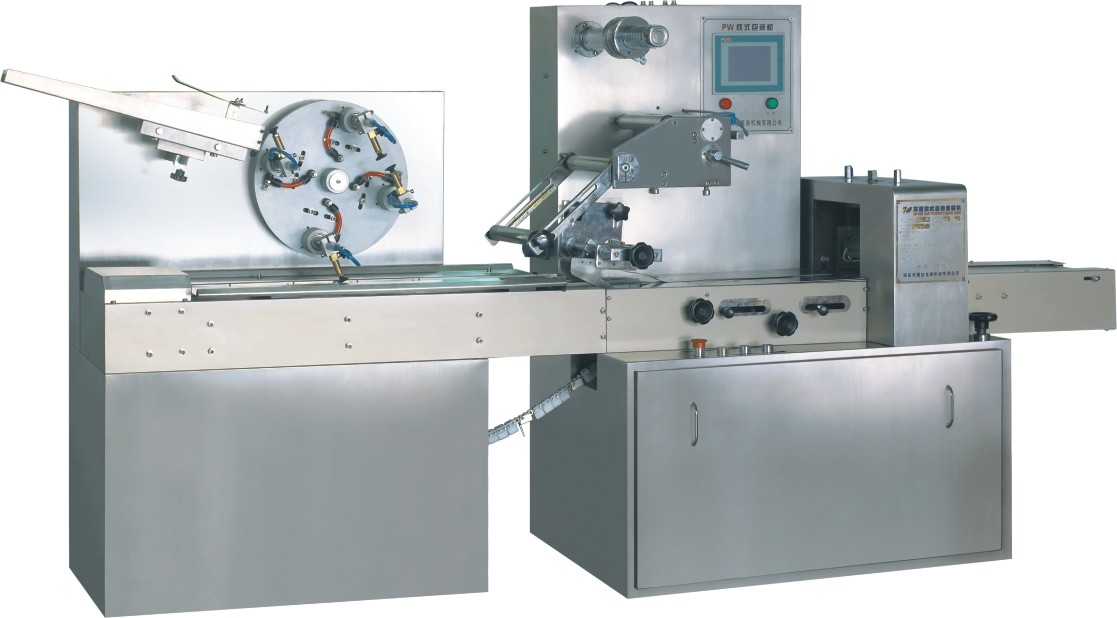

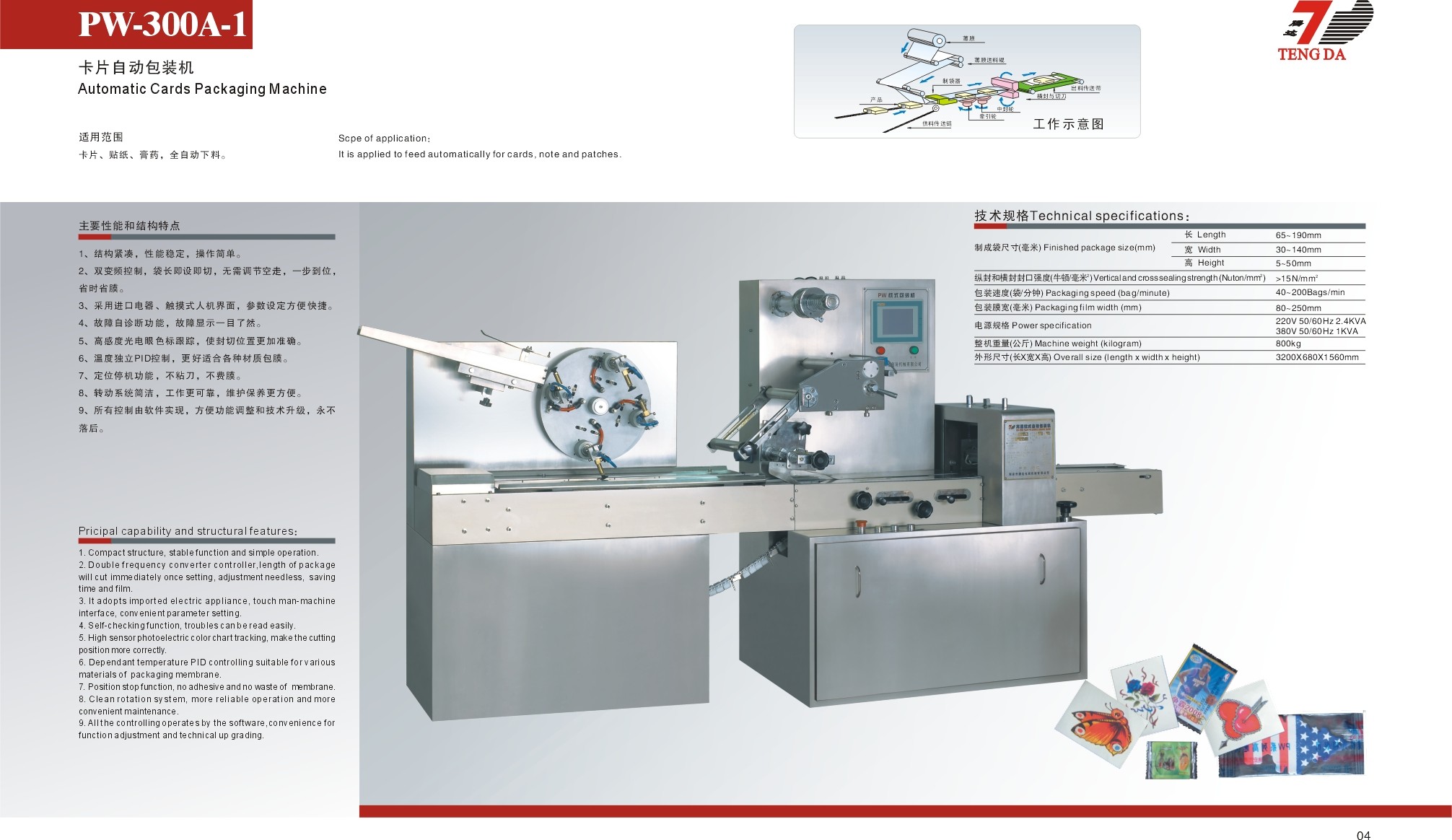

HIGH SPEED automatic 5 - 40 mm Toy packing machine for cards
Pricial capability and structural features:
1. Compact strure design, good stable function and convenient simple operation
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
4. Self-checking function, troubles can be read easily.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
