Material: | 304 Stainless Steel | Machine Model: | PW-300E |
---|---|---|---|
Delivery: | Twenty Days | Encasement: | Wooden Case |
Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
High Light: | ard packaging machine,auto packing machine |

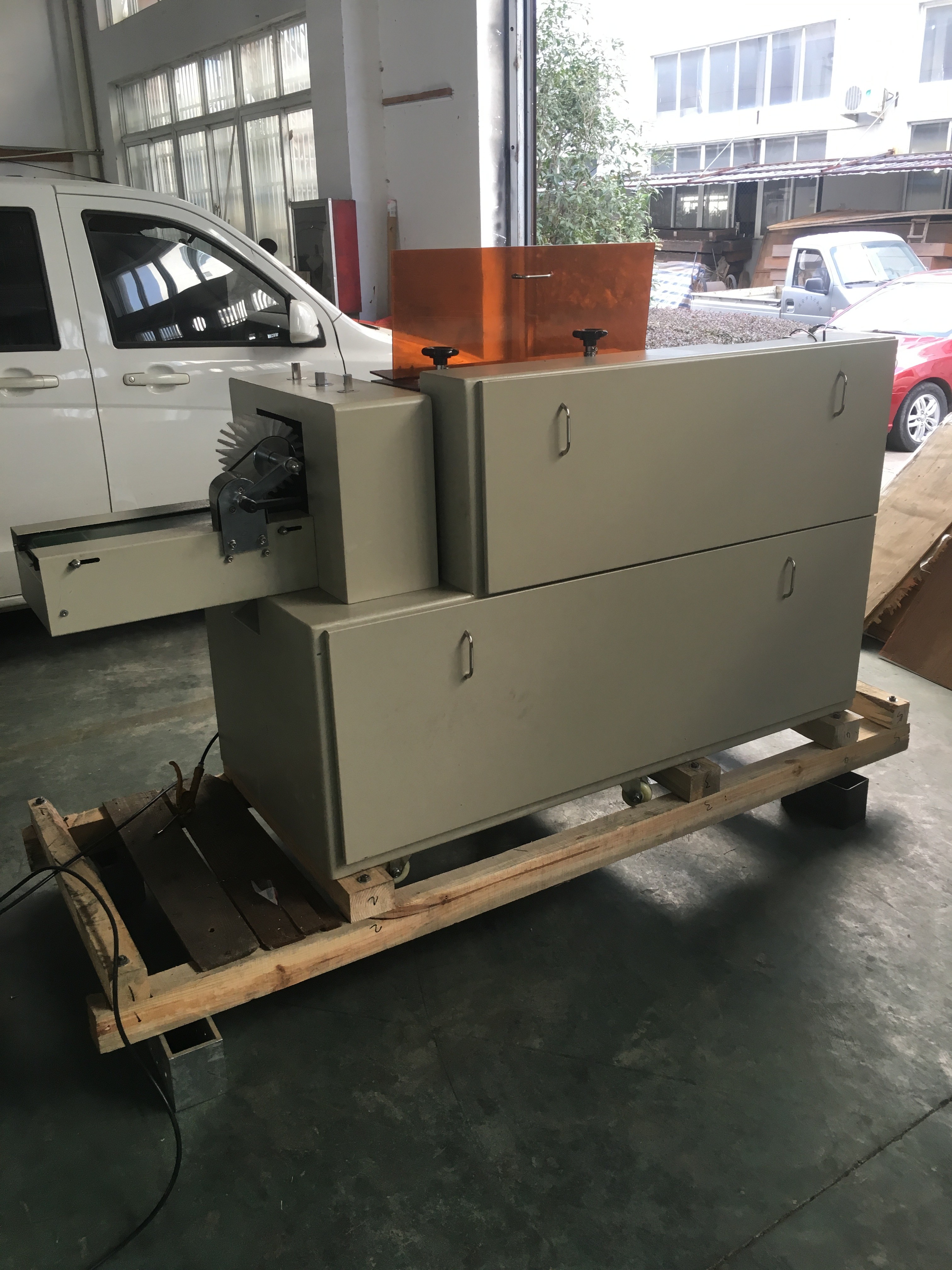

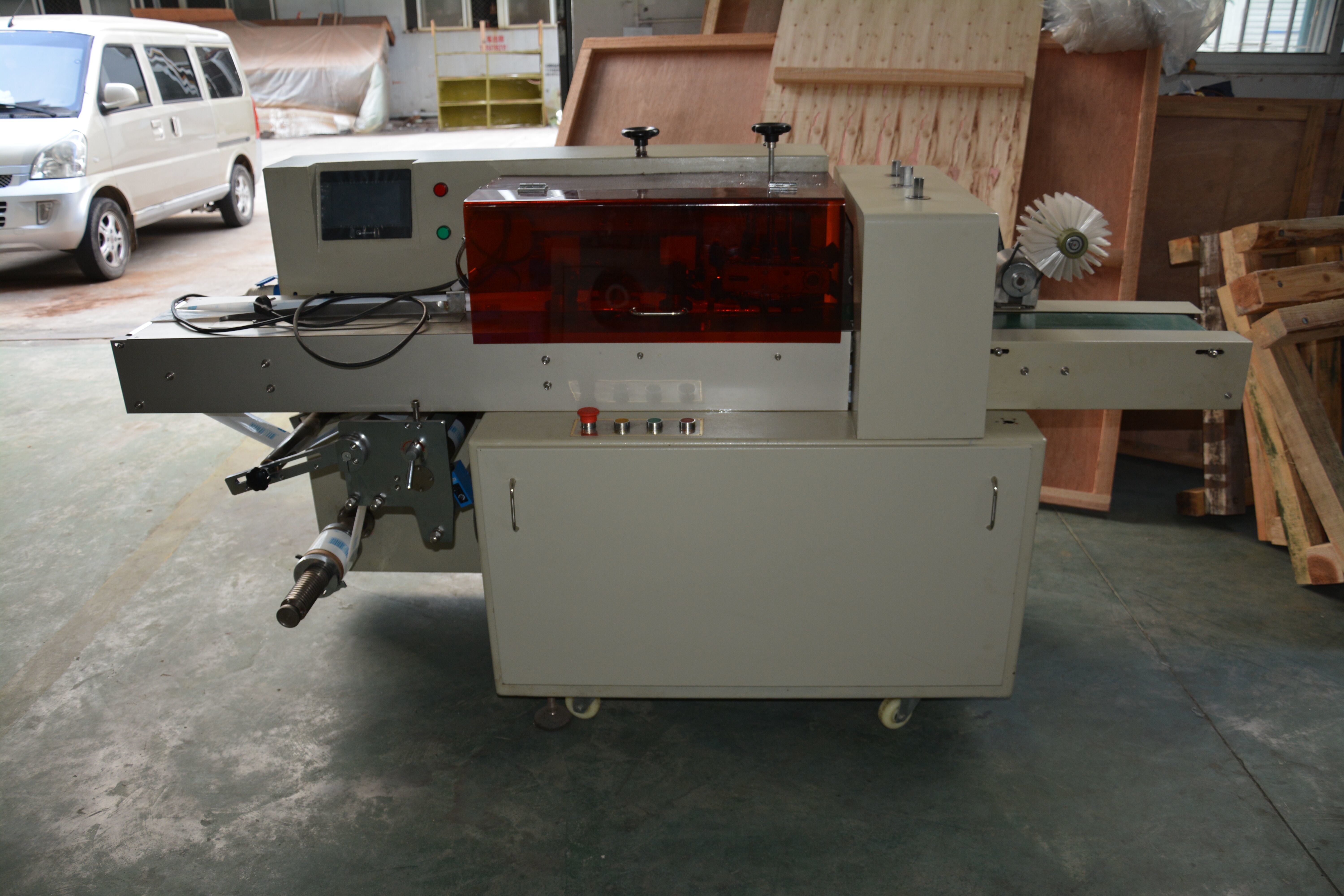

low reject rate Card Packing Machine has good sealing performance with 14 years of production experience
Equipment capability:
1. according to the positioning mark of packing material, the continuous photoelectric automatic positioning system is designed to eliminate the error and achieve the correct sealing and cutting.mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.
2. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.
3. pillow type automatic packaging machine structure design function requirements:crosscut knife every turn, seal and cut off 1 times; vertical sealing mechanism in the machine power off can automatically open, also can manually separate two sealed heat sealing roller wheel.
4. All the controlling operates by the software, convenience for function adjustment and technical up grading. Compact strure, stable function and simple operation,Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time
and film.
5. for the traction roller and the vertical roller, their movement first maintains the material to have the suitable tensioning in the entire movement process; secondly, their movement speed should adapt with the bag appearance.
6.setting and control of sealing and cutting temperature.can realize color mark tracking trademark to its function.the whole operation is stable and reliable, and can adapt to various specifications of the adjustment.
7. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.High sensor photoelectric color charttracking, make the cutting position more correctly.
8. Dependant temperature PID controlling suitable for various materials of packaging,membrane.Position stop function, noadhesive and no waste of membrane.Clean rotation system, more reliable operation and more convenient maintenance.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |

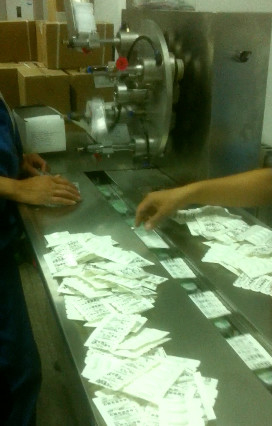

Description: as mentioned above,
1. packaging products before packaging materials into the packaging material,
2. package material has been molded by the shaper,
3. package material will immediately wrap the product with the product,
4. the supply wheel and the middle sealing wheel begin to heat seal, and the middle seal is finished,
5. the product reaches the end seal and cuts off the seal.
Warranty:
1. We warranty against any defects in design and workmanship for 1 year from the shipment date.
2. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3.We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
