| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | woods |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Material: | 304 Stainless Steel | Machine Model: | PW-300E |
|---|---|---|---|
| Delivery: | Twenty Days | Encasement: | Wooden Case |
| Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
| High Light: | ard packaging machine,horizontal bagging machine |
||

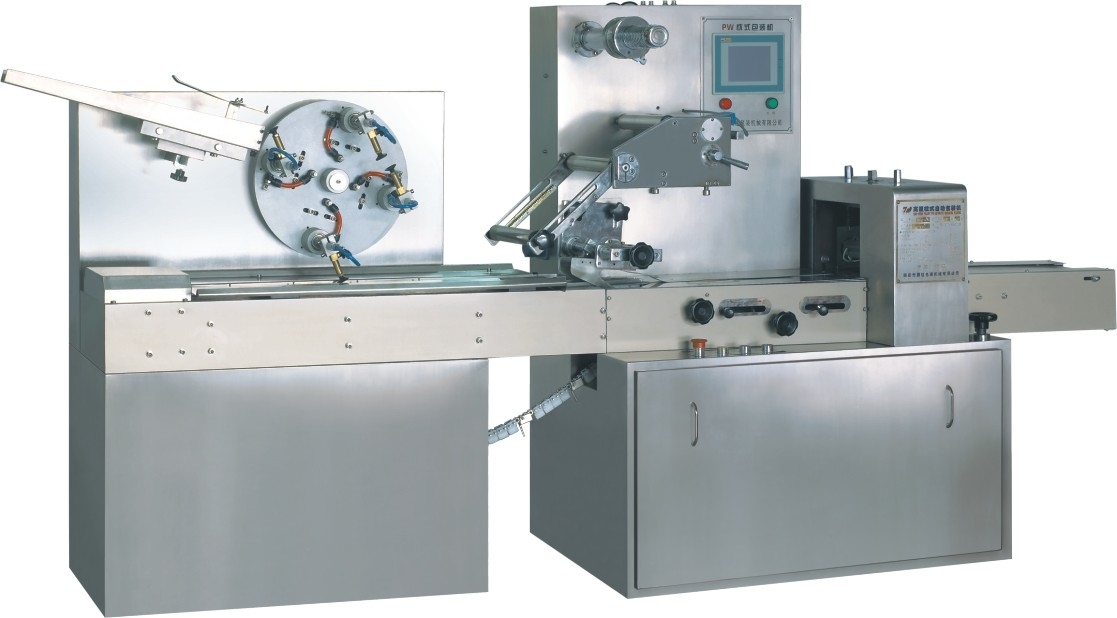

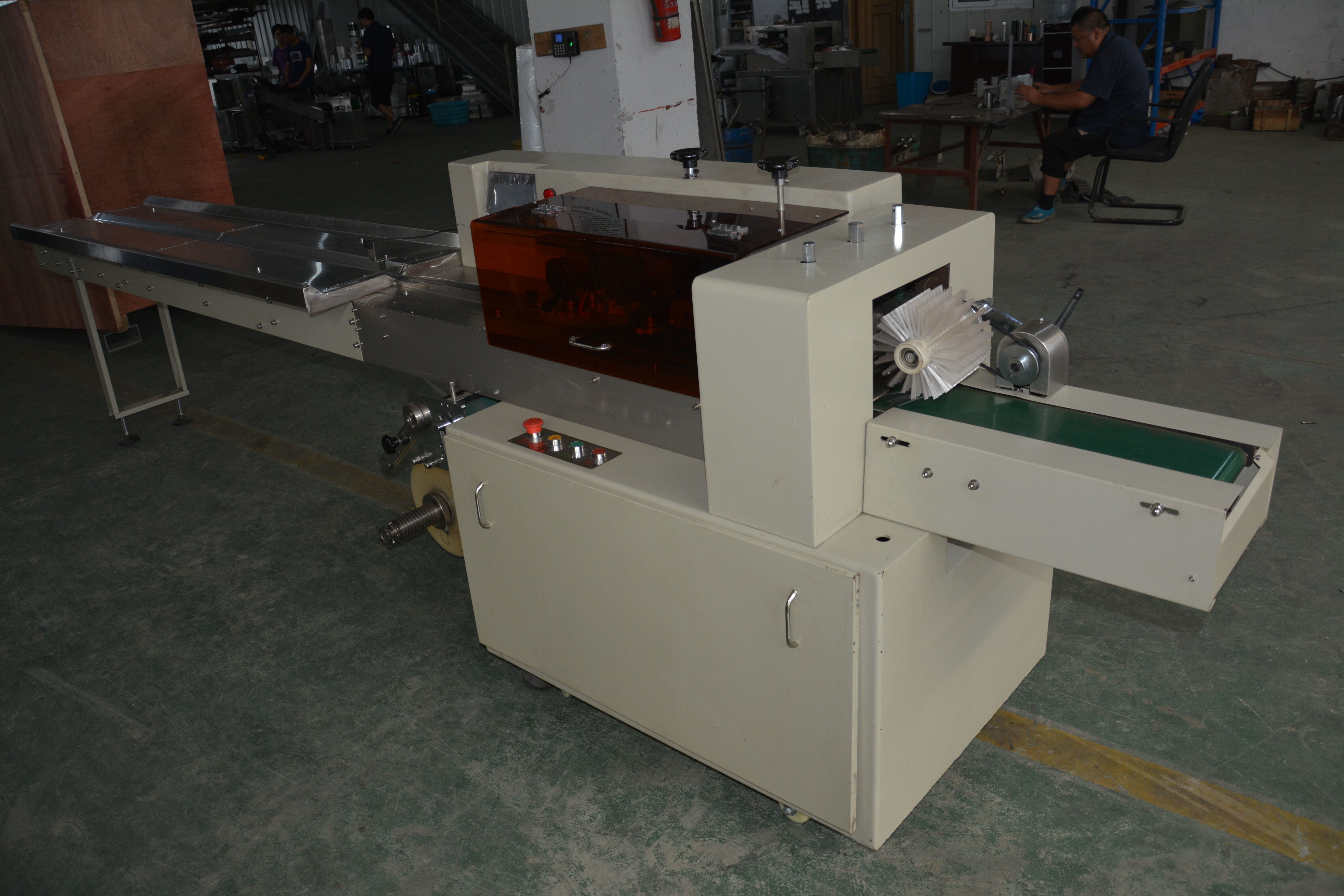

Professional pillow type Card Packing Machine with One year repair for free and maintenance for lifetime
advantage
box Bopp cellophane packing machinery
1. easy operation
2. simple adjust
3. large packing size
4. CE approve and oversea service
Equipment capability:
1. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.packaging ability is very strong, and can be suitable for a variety of specifications for food and non food packaging. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.
2. pillow type automatic packaging machine structure design function requirements:crosscut knife every turn, seal and cut off 1 times; vertical sealing mechanism in the machine power off can automatically open, also can manually separate two sealed heat sealing roller wheel.
3. Compact strure, stable function and simple operation,Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film.
4. Dependant temperature PID controlling suitable for various materials of packaging,membrane.Position stop function, noadhesive and no waste of membrane.Clean rotation system, more reliable operation and more convenient maintenance.All the controlling operates by the software, convenience for function adjustment and technical up grading
technical parameters:
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
