| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300C |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 80-300mm | Machine: | 220V |
| Weight: | 800kg | Overall Size: | 3780×640×1560mm |
| High Light: | pharmacy blister packaging machine,tablet blister packaging machine |
||

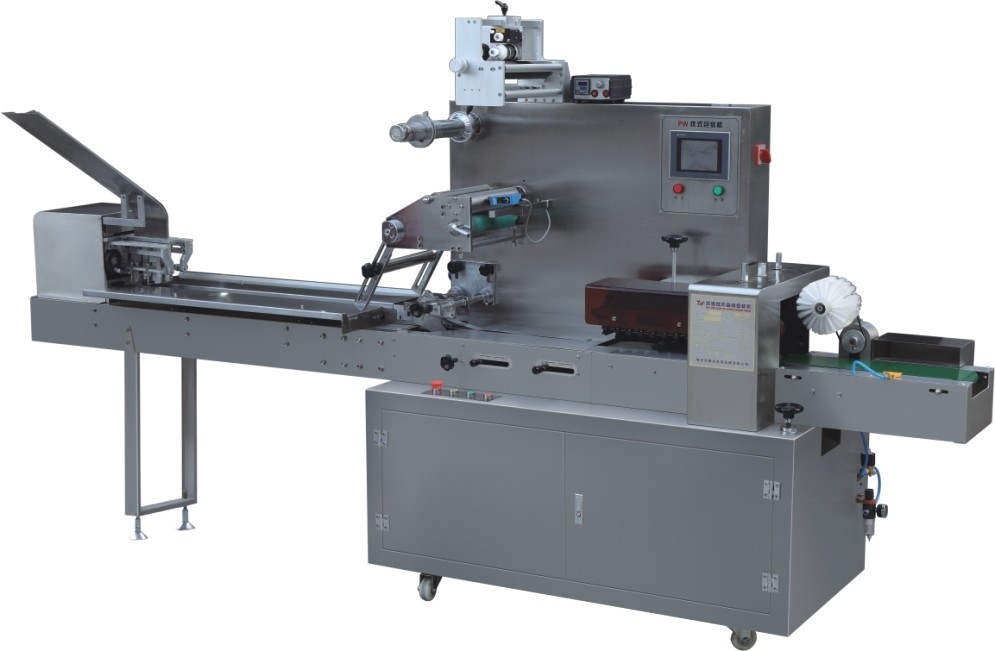

automatic 5 - 40 mm Health care packing machine for medicine
Pricial capability and structural features:
1. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
2. Check the bag with the lamp for effective and convenient connection, delivery bag length adjustable.
3. Self-checking function, troubles can be read easily.Transmission system concise and accurate, reliable, easy maintenance.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
6. With positioning stop function, do not stick knife, do not waste the envelope.
7. A photoelectric switch, electromagnetic proximity sensors to achieve the welding temperature, bag positioning more stable tracking and detection.
8. Change the bag length, the rest of the device only need to do a small amount of adjustment or no adjustment, adjust the scale of the site to help accurate positioning
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
