Material: | 304 Stainless Steel | Machine Model: | PW-300E |
---|---|---|---|
Delivery: | Twenty Days | Encasement: | Wooden Case |
Color: | Milky White/silver | Power Specification: | 220V 50/60HZ 2.4kw |
High Light: | capsule blister packaging machine,pharmacy blister packaging machine |

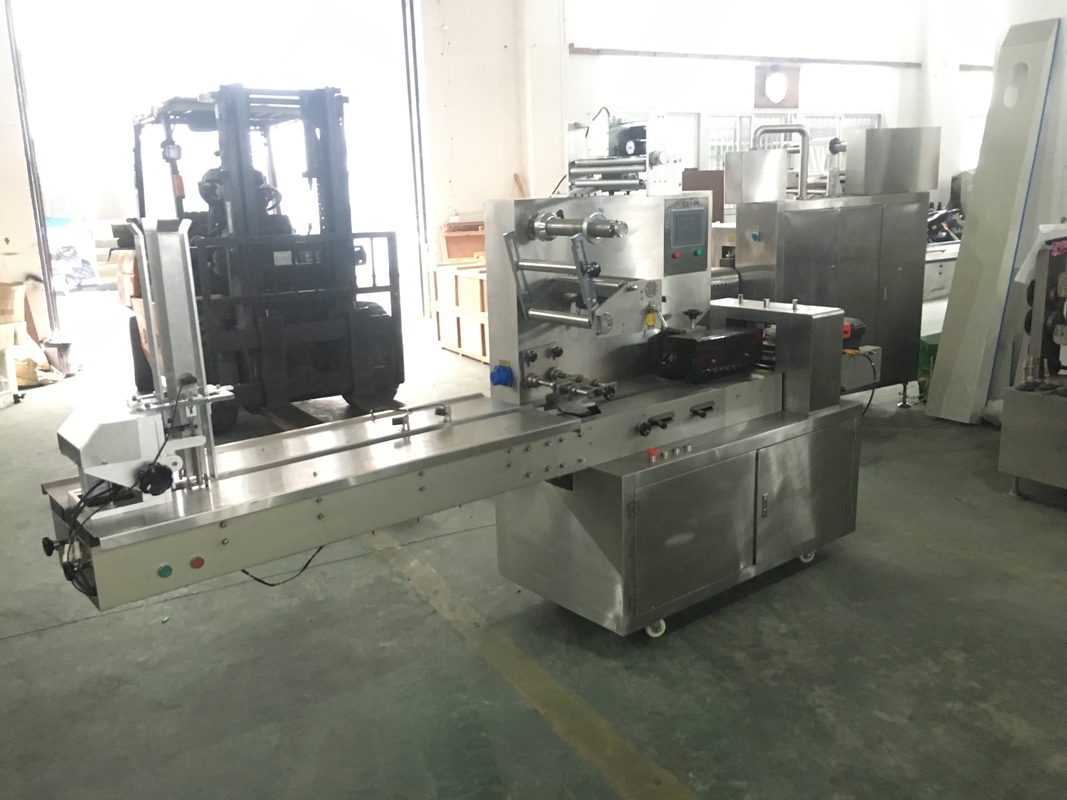

CE authentication Blister Packing Machine has the advantages of convenient adjustment
with Stainless steel fuselage
Packaging machine uses color touch screen and stable and reliable high-precision dual-axis output PLC control, bagging, metering, filling, sealing, coding, cutting bag one-time completed.
It uses air circuit control and circuit control independent separation, low noise, stable performance.
Double-belt servo pull-die and dual-servo control, less resistance, bag molding is good, more beautiful, high-precision positioning, accurate size.
Equipment capability:
1. With multiple protection devices, such as overload, lack of phase, leakage, etc., to ensure the normal use of equipment safety.
2. Less trouble, easy maintenance, easy to wear parts and circuit board replacement. The control circuits, sensors and lubrication points and wearing parts should have sufficient space for service and repair.
3. Safe and reliable equipment, durable, parameter setting, easy operation Simple and flexible, accurate, energy-saving, less operator required.
4. setting and control of sealing and cutting temperature.can realize color mark tracking trademark to its function.the whole operation is stable and reliable, and can adapt to various specifications of the adjustment. mature technology, stable quality, faster and more stable packaging, low energy consumption, low manual, low reject rate.can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
5. for the traction roller and the vertical roller, their movement first maintains the material to have the suitable tensioning in the entire movement process; secondly, their movement speed should adapt with the bag appearance.
technical parameters:
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
