Finished Package Size: | 40-500/30-110/5-40mm | Packging Film Widh: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-300mm | Machine: | 220V |
Weight: | 800kg | Overall Size: | 3780×640×1560mm |
High Light: | bakery wrapping machine,wafer packing machine |

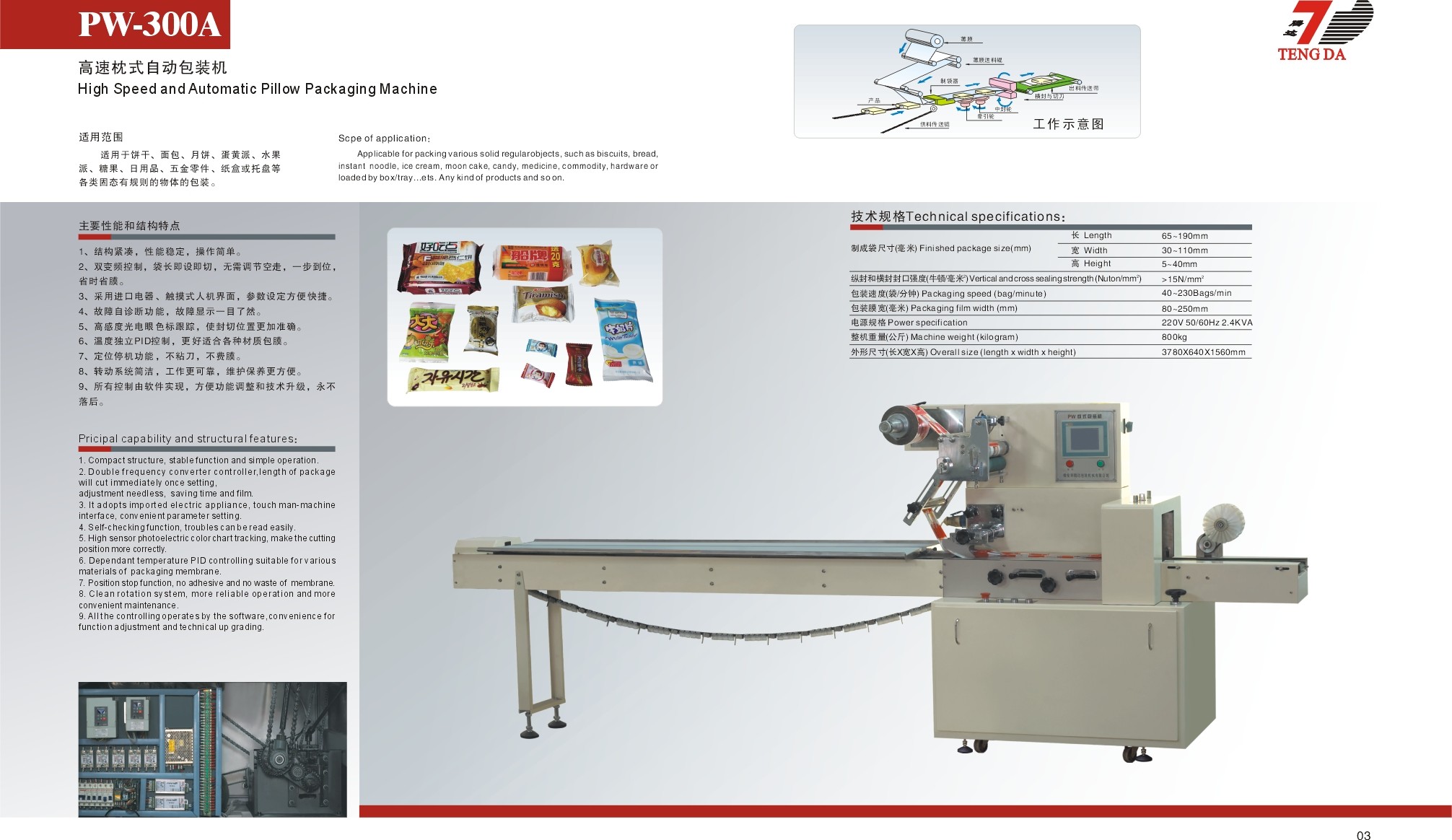

PILLOW 5 - 40 mm Fruit and vegetable beverage packing machine automatic for Agriculture products
This packing machine is suitable for fast packaging of the biscuit, wafer and other slice, round and regular items without tray.
This series is a full automatic packaging machine specially designed for assembly packing of biscuits and waffle without pallet, this can realize fast packing of several pieces of biscuits in single row. Biscuits finish being automatically packed without pallet
Pricial capability and structural features:
1. Compact strure, stable function and simple operation
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
4. Self-checking function, troubles can be read easily.
5. High sensor photoelectric color charttracking, make the cutting position more correctly.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
