Finished Package Size: | 70-1000/30-170/5-80mm | Packaging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 220V | Weight: | 500kg |
Overall Size: | 3780-830-1700mm | Color: | Silver |
High Light: | bakery wrapping machine,cake wrapping machine |

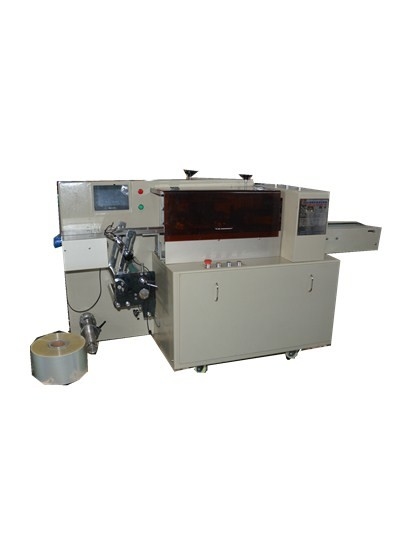

stainless steel High speed no air bag function Special packaging machine for cake
Application of pillow type packing machine in the food industry and the pharmaceutical packaging industry, greatly improving the health level of the packaging process, to achieve full closure, no chisel, clean packaging packaging process, packaging industry development is a milepost, also lifted people tedious work, make the efficiency of packing is greatly improved, for the packaging industry the rapid leapfrog development provides a new platform.
Applicable for packing various solid regular objuects, such as pie, biscuits, boon cake, ets. Any kind of products and so on.
Pricial capability and structural features:
1. Simplified mechanic gearing, easy to maintain, little vibration, little wearing and "long life";
2. Highly sensitive respond photoelectric device can follow automatically and accurately;
3. Independent temperature control for each sealer, and make it beautiful and tight and suitable for a wide variety of flexible packing material.
4. Compact strure, stable function and simple operation. Self-checking function.

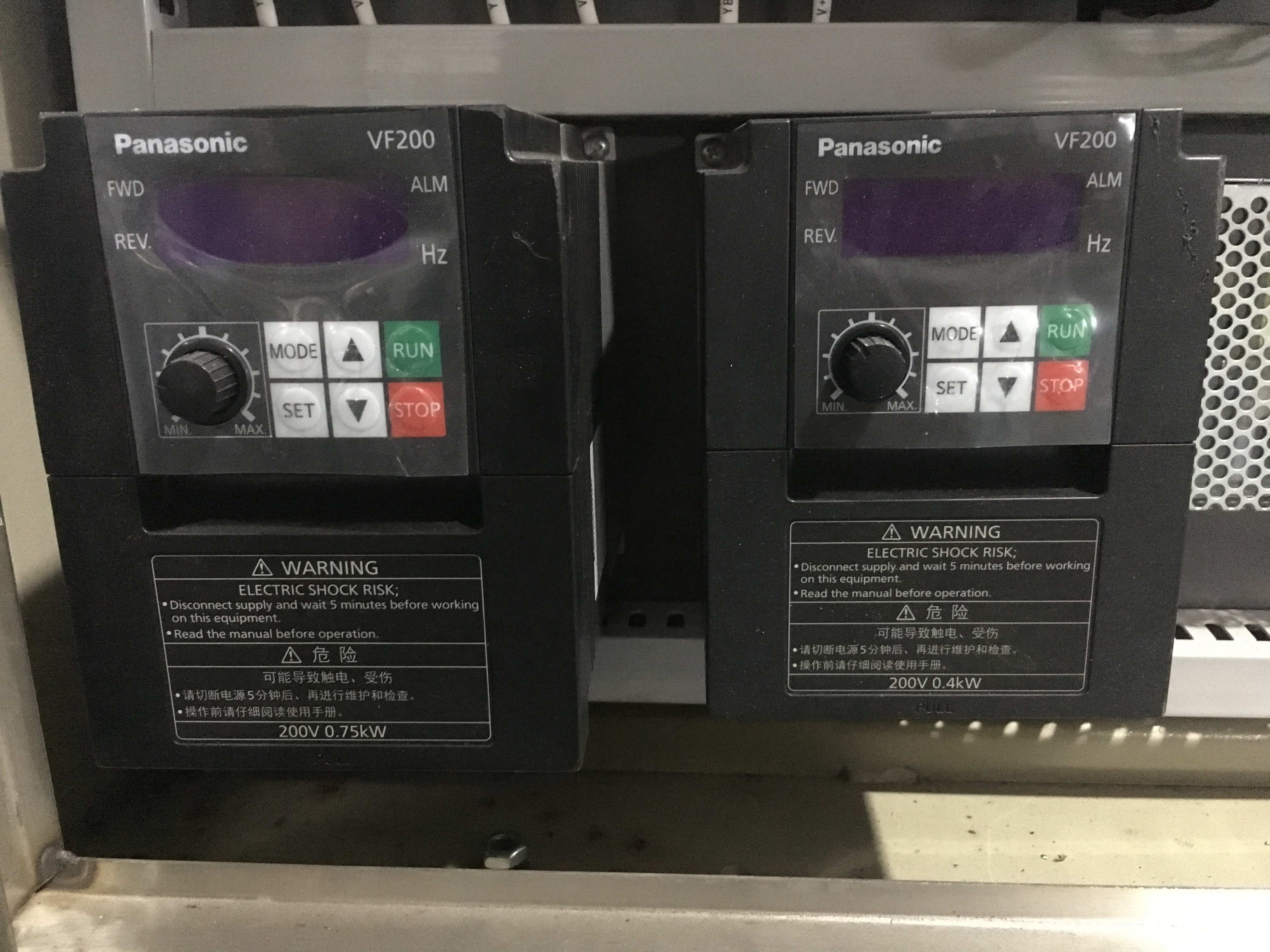

5. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film. .
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
7. simple operation, complete accessories, automatic continuous feeding mechanism, greatly improve the packaging efficiency and reduce labor costs.
8. in customer service service, "circle" has the good reputation of the customer service service in a timely manner.
9. can be used in the packaging of non trademark packaging materials, and can use the pre printed trademark reel material for high-speed packaging.
Technical parameter:
Finished package size(mm) | Length | 70-1000mm |
Width | 30-170mm | |
Height | 5-80mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 500kg | |
Overall size (length * width * height) | 4400×830×1700mm |
Ruian tengda packaging machinery co., LTD. Is located in Building No.10, yunjiang standard factory, nanbin street, ruian city, zhejiang province, is a company specializing in the production of packaging machinery.The company integrating scientific research, manufacturing, sales, service as a whole, has the abundant technical force, advanced production equipment, high-quality staff team and perfect after-sales service.
