Finished Package Size: | 70-1000/30-170/5-80mm | Packaging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 220V | Weight: | 500kg |
Overall Size: | 3780-830-1700mm | ||
High Light: | bakery wrapping machine,wafer packing machine |

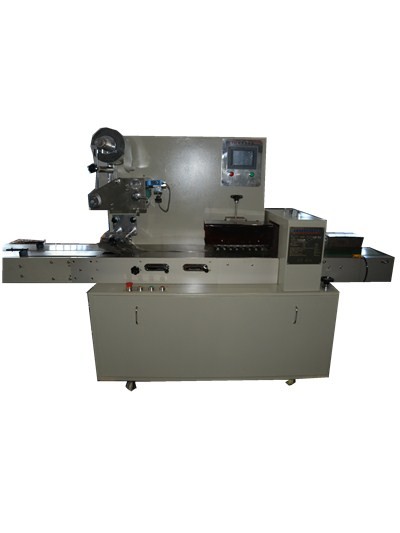

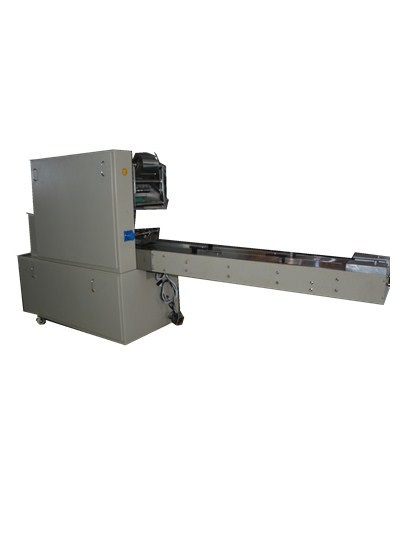

Cake packing machine High speed 5 - 230 Bags / min stainless steel applicable for
moon cake / pie and so on
food packing machine is based controlling by PLC for a more stable and reliable system with less trouble.
Digital display with package length,speed and temperature adjustable separately,easy and accurate to use.
Two-way tracking for accurate sealing and cutting fo patterns.
Position shutdown and automatic opening-closing device for longitudinalsealing ,ensuring no harm to the packing films.
Having automatic monitoring function. Any fault reason during operation will be self diagnosed, and showing the solution.
Packing parameter with many products could be set, Drawing out the relevant data from memory and the machine will be operate according to these data.
Technical parameter:
Finished package size(mm) | Length | 70-1000mm |
Width | 30-170mm | |
Height | 5-80mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 500kg | |
Overall size (length * width * height) | 4400×830×1700mm |
