Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-300mm | Machine: | 220V |
Weight: | 800kg | Overall Size: | 3780×640×1560mm |
High Light: | capsule blister packaging machine,tablet blister packaging machine |
Blister Packing Machine with Stainless steel fuselage can Effectively Reduce labor costs
Pricial capability and structural features:

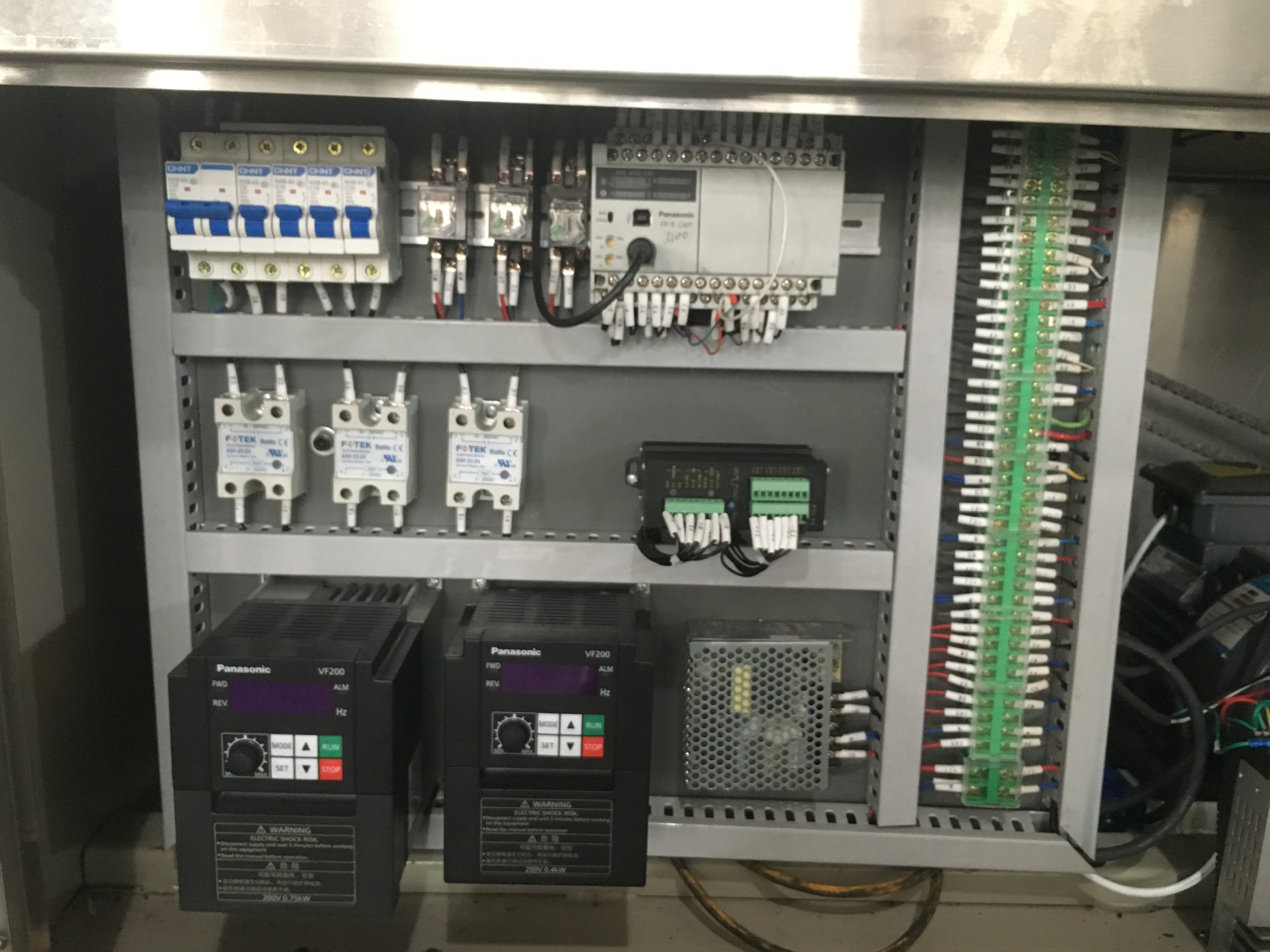

The pillow type automatic packing machine adopts PLC control, bag length speed automatic display, accurate cutting; AC motor with inverter, realize stepless speed control, can be dynamically adjusted during exercise; photoelectric detection, two-way tracking, can effectively eliminate packaging error, avoid the waste of the material; the vertical sealing heating under low temperature sealing. Reduce down hot film; modulation bag machine, compact structure, convenient replacement of varieties; low noise. The automatic packaging machine belongs to a multifunctional automatic packing machine, a bag forming, wrapping and sealing machine, molding - wrapping and sealing machine is like with plastic film of thermoplastic properties by heating and softening into packaging containers, automatic completion of bag forming in a whole. Packaging equipment such as wrapping, sealing, cutting and so on.
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
In this year, we have upgraded the quality control system, including departments: R & D department, design department, sales department, purchasing department, production department, etc., which effectively improve the device performance and create ultra-high value equipment for customers.
