| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-300A |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 40-500/30-110/5-40mm | Packging Film Widh: | 5-230Bags/min |
|---|---|---|---|
| Power: | 220V | Weight: | 800kg |
| Overall Size: | 3780×640×1560mm | Color: | Rice White |
| High Light: | bakery wrapping machine,wafer packing machine |
||

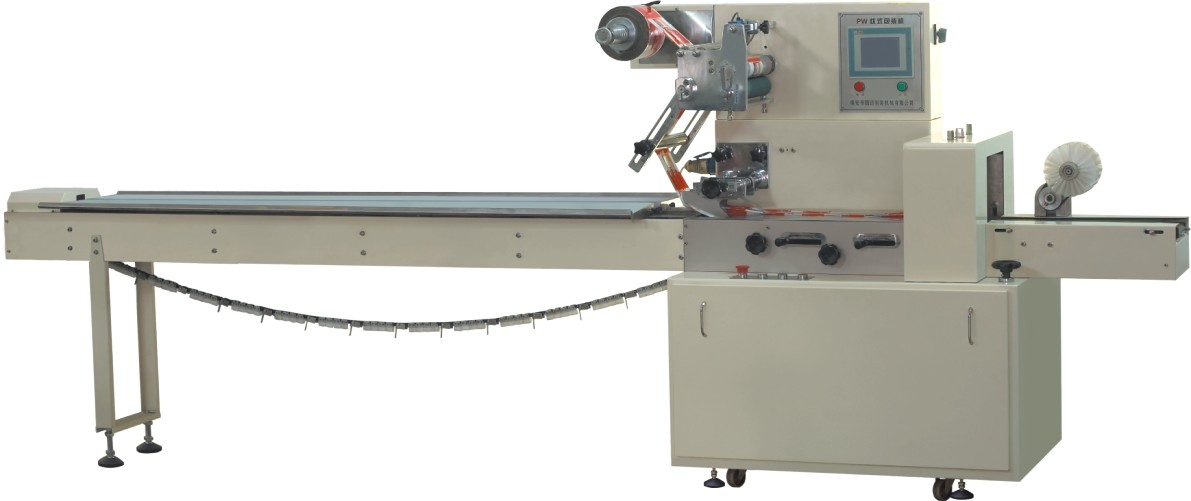

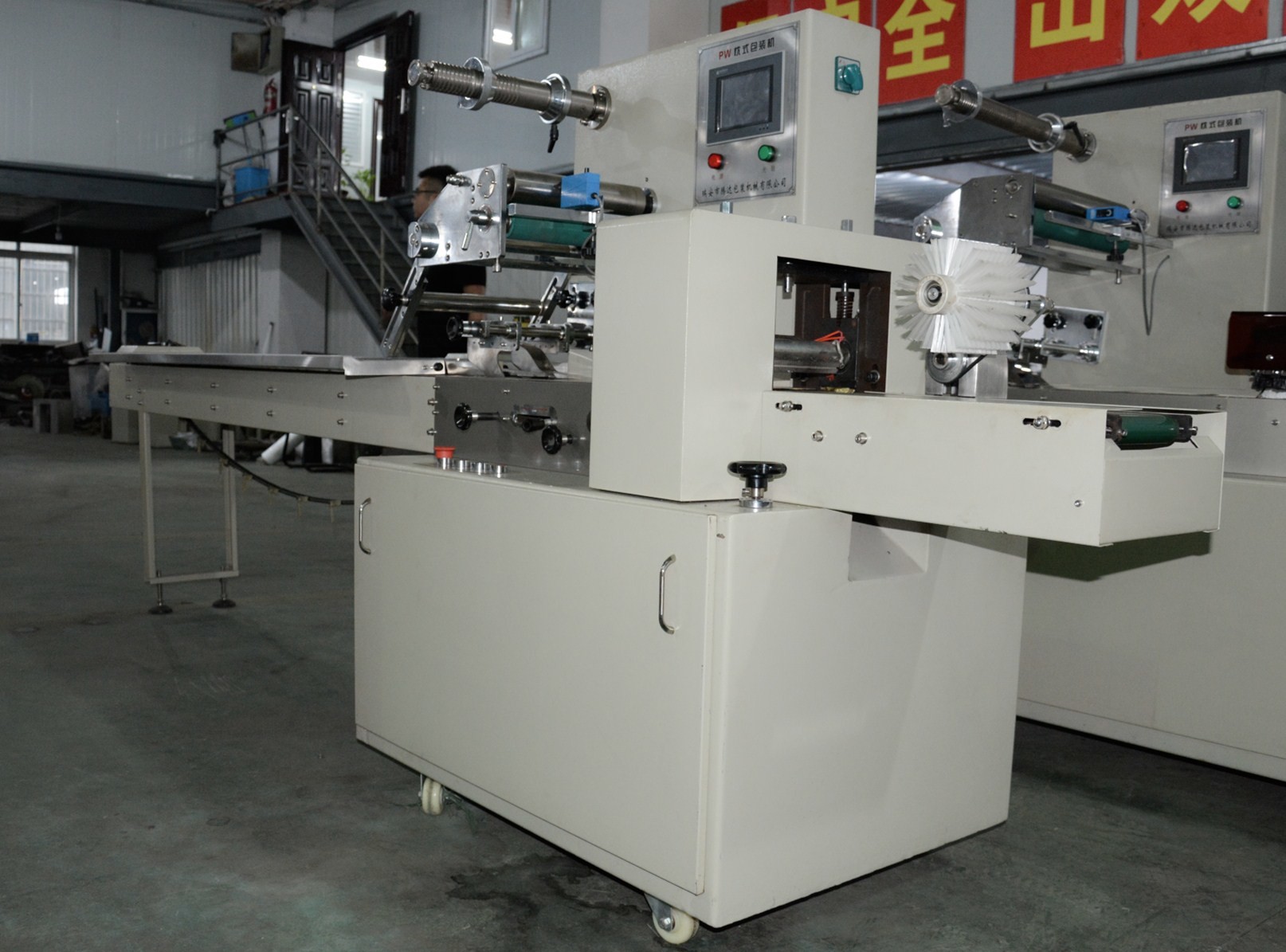

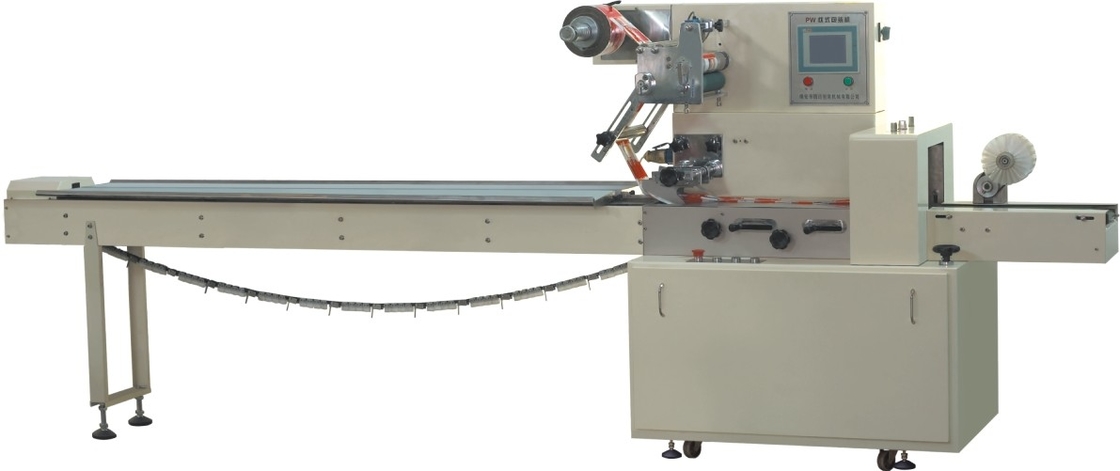

high speed 50-180bags/min automatic Special packing machine for candy
packaging machine , is especially designed for packing several bags or sachet in a big oackage for promotion sale or whole sale, adopt the world famous technology ,to pack the product with nice package, and do good for promotion in the supermarket.
Pricial capability and structural features:
1. High sensor photoelectric color charttracking, make the cutting position more correctly.
2. Self-checking function, troubles can be read easily.
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
Self-checking function, troubles can be read easily.
4. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film.
5. Compact strure, stable function and simple operation.
6. Dependant temperature PID controlling suitable for various materials of packaging membrane.
| Finished package size(mm) | Length | 40-500mm |
| Width | 30-110mm | |
| Height | 5-40mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 800kg | |
| Overall size (length * width * height) | 3780×640×1560mm | |
