Finished Package Size: | 40-500/30-110/5-40mm | Packging Speed: | 5-230Bags/min |
---|---|---|---|
Power Specification: | 80-300mm | Machine: | 220V |
Weight: | 800kg | Overall Size: | 3780×640×1560mm |
High Light: | horizontal form fill seal machine,pillow packing machine |

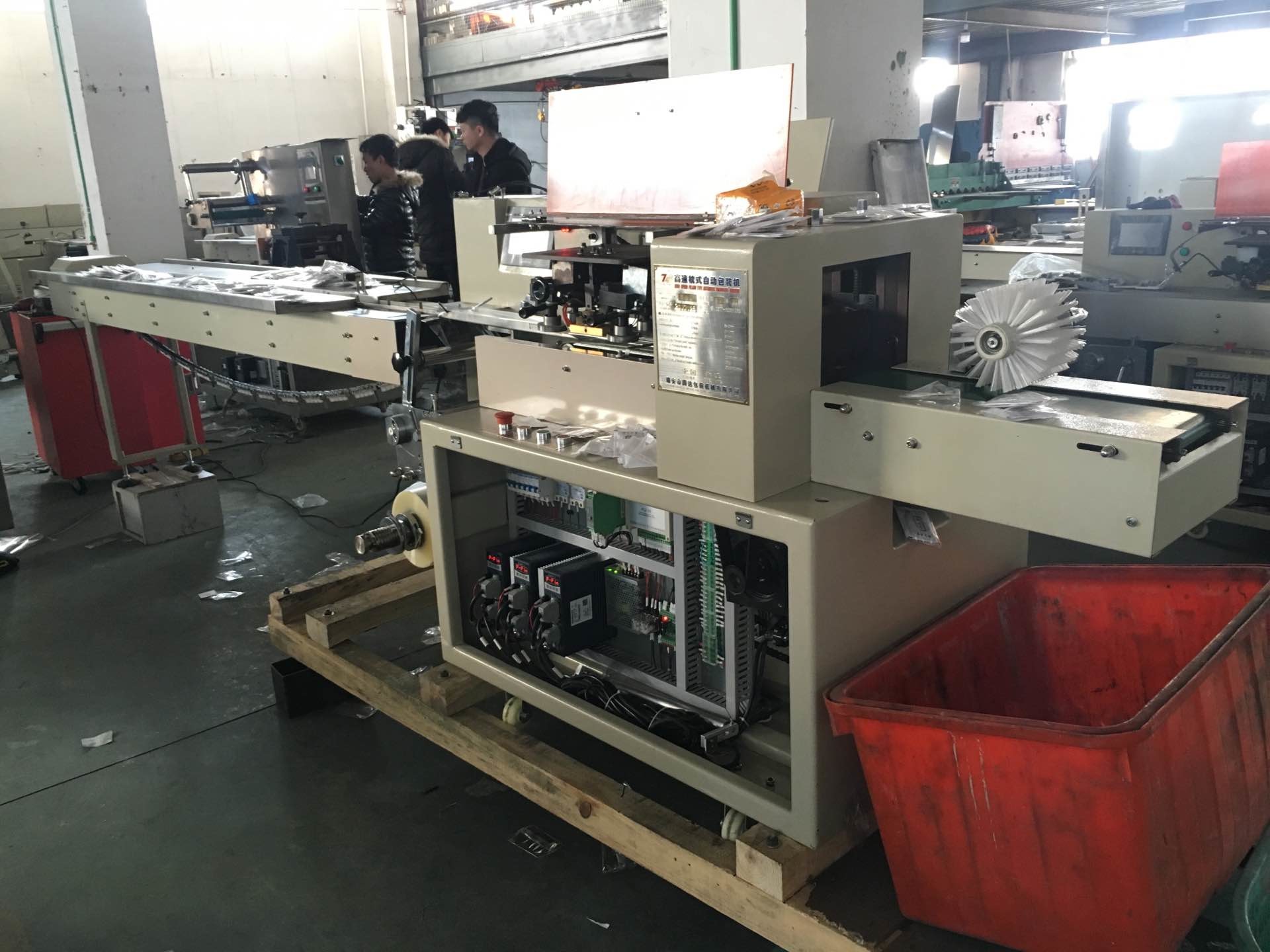

14 years of production experience Pouch Packing Machine has Automatic alarm function of fault

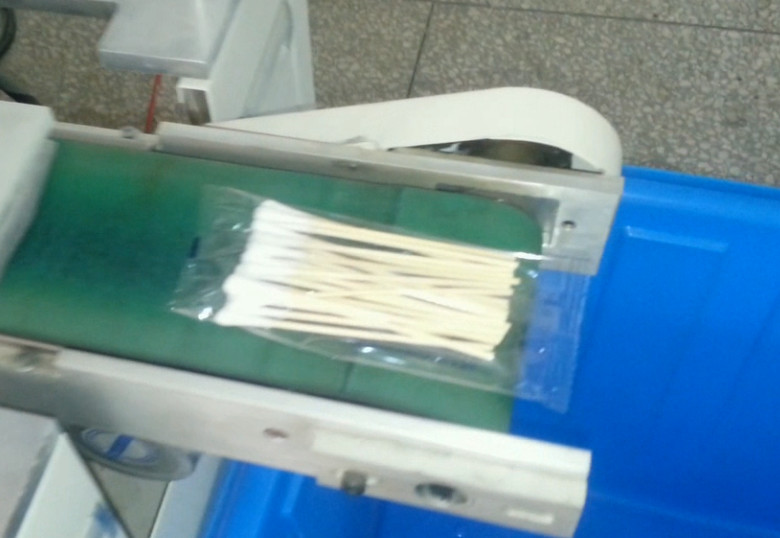

The plastic film mainly used for coiling is used to package different type of multifunctional articles. It is designed for solid packing and suitable for packing all kinds of solid and regular objects. Here we use the bag - wrap - sealing and cutting of packaging machinery, it can be used to packing block, with a tray of solid granular products, the bag for pillow. The main packaging process includes film supply, feeding, wrapping, sealing, cutting and so on.
Machine installation
①. Ground terms
This machine should be installed on flat and firm ground and keep operation pace enough around the machine
②. Cirumstance conditions
Finished package size(mm) | Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | 15N/m㎡ | |
Packaging speed (bag/minute) | 30-160Bags/min | |
Packaging film width(mm) | 80-450mm | |
Power specification | 220V 50/60Hz 3KVA | |
Machine weight (kilogram) | 800kg | |
Overall size (length * width * height) | 3780×640×1560mm |
Warranty:
1. We warranty against any defects in design and workmanship for 1 year from the shipment date.
2. This warranty won’t be applied to parts which are subject to wear and require normal replacement and to the durability of condition.
3. We are not responsible for the damage caused by misuse, improper handling, neglectful maintenance, force injury and other reasons beyond our responsibility.
