Packaging Speed: | 5-230Bags/min | Weight: | 400kg |
---|---|---|---|
Overall Size: | 3780-830-1700mm | Color: | Milky White |
Packing Material: | Composite Membrane | Encasement: | Wooden Case |
High Light: | facial tissue packing machine,wet napkin paper packing machine |

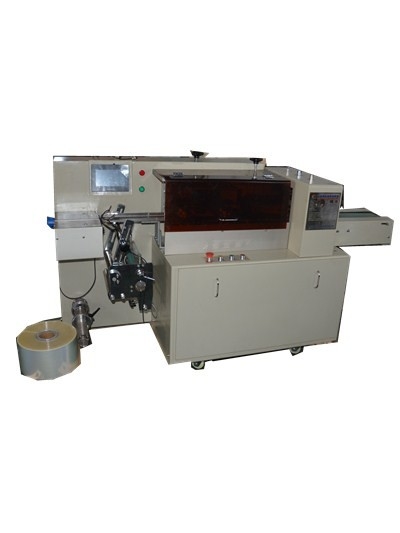

Automatic silver pillow PW - 300 E type Stop function with missing material Special packing for Wet Tissue
The main performance and structure features:
1. Color touch screen display, PLC/computer control, automatic and fast photoelectric track.
2. The bag length need not be set, machine could detect it automatically.
3. Machine has high performance, simple operation and fast packing speed.
4. Gear system besides double frequency converter controller, which making machine simpler operation, high-speed and stable performance. It’s the first third-generation pillow type packing machine in China.
5. Dependant temperature PID controlling suitable for various materials of packaging membrane.
6. Position stop function, noadhesive and no waste of membrane.
7. Servo blanking operation, convenient and fast, just in the screen operation.High sensor photoelectric color charttracking, make the cutting position more correctly.
scope of application:
Applicable to irregular non-standard shaped objects Special packing for Wet Tissue
Technical parameter:
Finished package size (mm) |
Length | 40-500mm |
Width | 30-110mm | |
Height | 5-40mm | |
Vertical and cross sealing strength (Nuton/mm2) | >15N/m㎡ | |
Packaging speed bag/minute | 5-230Bags/min | |
Packaging film width(mm) | 80-300mm | |
Power specification | 220V50/60Hz2.4KVA | |
Machine weight (kilogram) | 400kg | |
Overall size (lengthXwidthXheight) | 3780×640×1560mm |
