| Place of Origin: | china |
|---|---|
| Brand Name: | tengda |
| Certification: | CE |
| Model Number: | PW-450E |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50set/month |
| Finished Package Size: | 70-1000/30-170/5-80mm | Packaging Speed: | 5-230Bags/min |
|---|---|---|---|
| Power Specification: | 220V | Advantage: | High Speed |
| Overall Size: | 3780-830-1700mm | Feature: | Precise |
| High Light: | facial tissue packing machine,wet napkin paper packing machine |
||

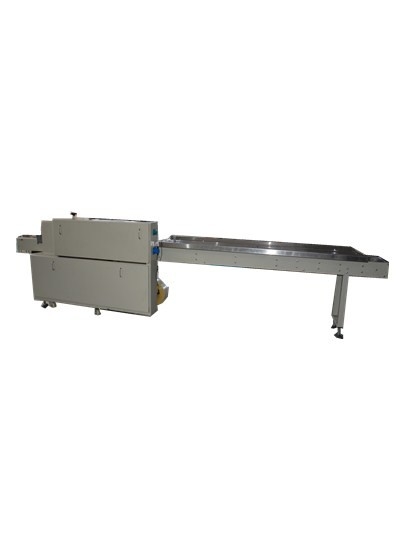

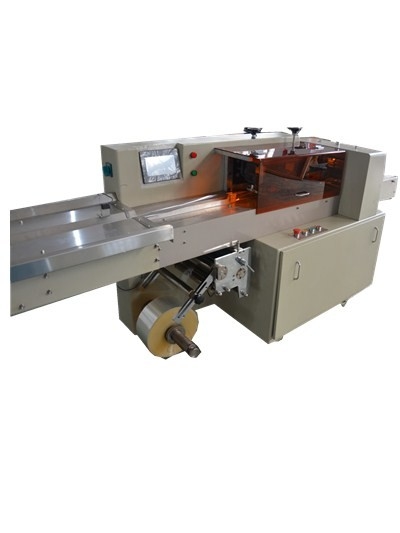

High speed 5-230Bags / min stainless steel pillow packing machine applicable for Wet Tissue
Our machine material stand the test.There are some factories who want to reduce the cost to use inferior stainless steel which not reach food grade.
But we use the food grade 304 stainless steel which is selected strictly for the part which connect with packing material.And if the packing material is special such as salt,we will adopt 316 stainless steel.The macthed fittings are not only durable but also easier to do daily maintain than same function model from other companies. Thus it can reduce the extra cost for maintain and time which maybe delay producing.If you are looking for a small pouch pillow packing machine now,the JY-300 is the best choice for you.
Pricial capability and structural features:
1. Compact strure, stable function and simple operation. Self-checking function, troubles can be read easily.
2. Double frequency converter controller, length of package will cutimmediately once setting, adjustment needless, saving time and film. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
3. High sensor photoelectric color charttracking, make the cutting position more correctly.Dependant temperature PID controlling suitable for various materials of packaging membrane.
Technical parameter:
| Finished package size(mm) | Length | 70-1000mm |
| Width | 30-170mm | |
| Height | 5-80mm | |
| Vertical and cross sealing strength (Nuton/mm2) | 15N／m㎡ | |
| Packaging speed (bag/minute) | 30-160Bags／min | |
| Packaging film width(mm) | 80-450mm | |
| Power specification | 220V 50／60Hz 3KVA | |
| Machine weight (kilogram) | 500kg | |
| Overall size (length * width * height) | 4400×830×1700mm | |
