Dried Meat Floss Cake Automatic Food Packing Machine Fault Self Diagnosis Function

Basic Information
Place of Origin: china
Brand Name: tengda
Certification: CE, ISO9000
Model Number: PW-300E
Minimum Order Quantity: 1set
Price: ¥40000-60000/set
Packaging Details: wooden cases
Delivery Time: 20days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 50 sets per month
Detail Information
Weight: 450kg Color: Silver
Packing Material: Composite Membrane Encasement: Wooden Case
Material: Stainless Steel
High Light:

cookie packaging machine

,

food product packaging machine


Product Description

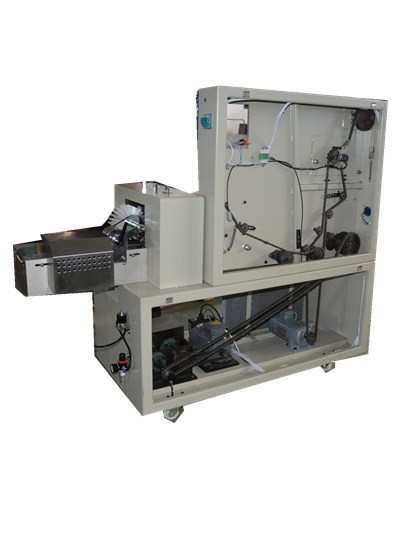

Automatic Stainless steel flow packing machine applicable for food like Dried meat floss cake



The main performance and structure features:

1. most suitable for high speed, stable operation, no vibration: ensure that the body is not deformed, the equipment is well sealed. transport
The noise in the turn is small and the service life is long.
2. maintenance is simple. The sealing temperature is controlled and the fluctuation is small. The packaging film does not produce scratches.
3. without wrinkle problem, can set the quantity arbitrarily, have the empty bag automatic elimination function.
4. have the lack of material alarm detection, eliminate function. It should have the function of automatic film correction to ensure that the slot in the bag is always aligned, and it will not cause the waste of the second product when the film is changed.
5. has automatic film changing function: ensure that the finished film will be automatically pasted to another volume without stopping the machine, and it will not waste material because of the original shutdown.
6. has the connection function, ensure that the single machine can be connected to the box after the single machine.





scope of application:

Applicable to regular  shaped objects Special packing for food like Dried meat floss cake.

.

Technical parameter:



Finished package size (mm)

Length 40-500mm
Width 30-110mm
Height 5-40mm
Vertical and cross sealing strength (Nuton/mm2) >15N/m㎡
Packaging speed bag/minute 5-230Bags/min
Packaging film width(mm) 80-300mm
Power specification 220V50/60Hz2.4KVA
Machine weight (kilogram) 400kg
Overall size (lengthXwidthXheight) 3780×640×1560mm
